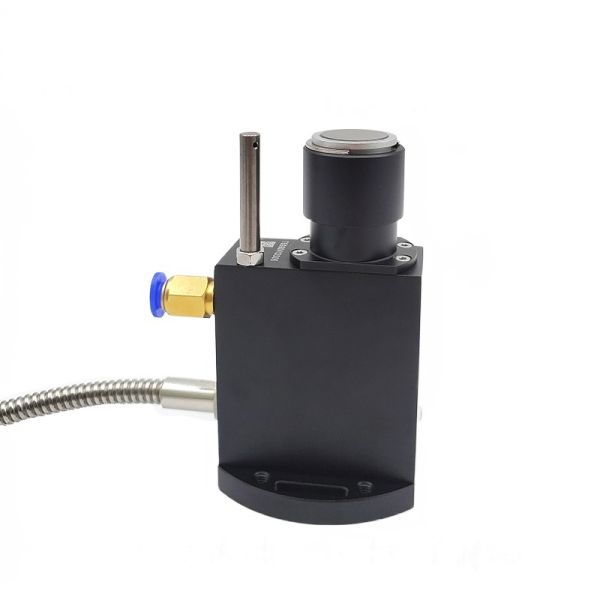

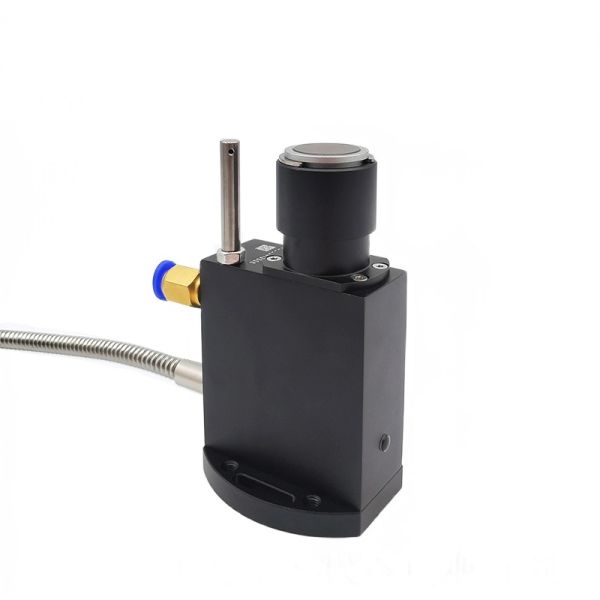

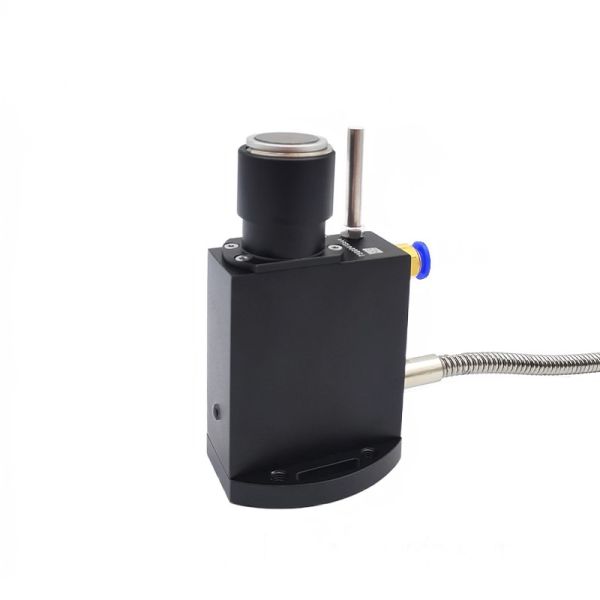

DTS20 High Precision Waterproof IP68 Optical Tool Setter CNC Z-Axis Height Sensor Photoelectric Trigger Switch 0.5um

Name: DTS20 High Precision Waterproof IP68 Optical Tool Setter CNC ZAxis Height Sensor Photoelectric Trigger Switch 05um
Brand: Makinopc
Price: 125 USD

Buy cheap DTS20 High Precision Waterproof IP68 Optical Tool Setter CNC Z-Axis Height Sensor Photoelectric Trigger Switch 0.5um product

weight (kg) : 1.2

Products name : Optical CNC Tool Setter

machinery test report : Not Available

Machine Type : Punching Machine, Milling Machine, lathe machine, turning machine

Repeatability : 0.5um

Contact diameter : 20

Signal : Normally open

Protective stroke : 5.5

SignalTransmission : cable

video outgoing-inspection : Provided

Stroke : 11

warranty : 1 Year

Price : $125-130 / piece

Direction : Z

Pretravel : No

Place of Origin : Guangdong, China

Contact life time : 20 million times

Brand Name : Makinopc

MOQ : 1 piece

Contact Now

Products Description

Key Features

Makinopc cnc tool setter widely used in CNC machining centers. In addition to presetting tool length, tool setters can be used to detect wear and breakage and correct thermal distortion.Shorten the measuring time of tools and improve the running time of machine tools,Save manpower and prevent unqualified products

Fundamentals

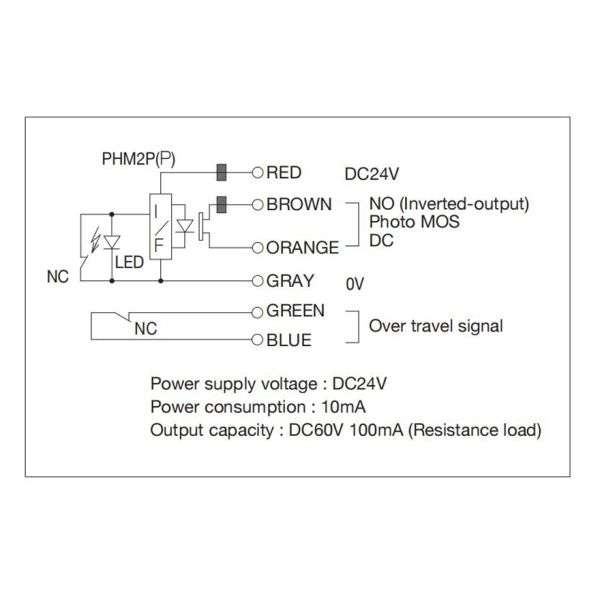

The STS series tool setter composed by a photoelectric switch,a contact with high hardness and wear resistance, a signal
transmission interface. photoelectric switch is key parts, When the sensor beam is interrupted, a trigger signal will be sent out and transmitted to the NC system through the interface device to identify, calculate, compensate and access the tool length.

Product Paramenters

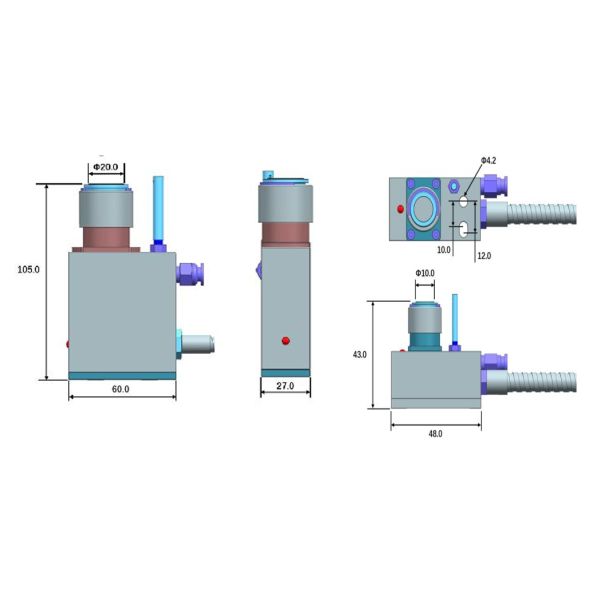

Product	DTS20	DTS10
Contact diameter	20	10
Direction	Z	Z
Pretravel	No	No
Signal	Normally open	Normally open
Stroke	11	5.4
Protective stroke	5.5	No
Repeatability	0.5um	0.5um
Contact life time	20 million times	20 milion times
SignalTransmission	cable	cable
Sealing	IP68	IP68
Contact force	1.5N(Installation position:Vertical)	1.3N (Installationposition: Vertical)
Surface finishing	Grinding 4s	Grinding 4s
Contact material	Tungsten carbide	Tungsten carbide
Contact rating	DC24V 20 mA resistive load	DC24V 20 mA resistiveload
Cable	2m	1.5m
LED lamp	Default : LED OFF/OperatingLED ON	Default : LED OFF /Operating : LED ON

Details Images

DTS20 High Precision Waterproof IP68 Optical Tool Setter CNC Z-Axis Height Sensor Photoelectric Trigger Switch 0.5um

High Stability

Photoelectric sensor triggering, higher precision, more stable signal, safe travel up to 11mm, longer life.

High Protection Grade

Main body IP68 protection grade, waterproof and oil-proof, double-layer rubber ring protection structure sealing power supply, oil-resistant and corrosion-resistant signal line, etc.

High Accuracy

Repeatability up to 0.5μm, simple wiring, easy installation, long service life, indicator light design, status visualization.

Wide range of application

High compatibility with Japanese, Korean, Chinese and German machining centers, engraving machines and various control machines.

Installation Precautions

1. Try to install in the table with less iron filings and splash.

2. It must be installed vertically to ensure that the bottom is flat to avoid excessive accuracy error.

3. After the completion of wiring, place the tool setter in place of the tool setting, and fix the
correct position after testing the tool setter.

4. Please use it within the DC+24V±10% 20mA(MAX) , to avoid overload and burn out
the internal components.

5. The tension resistance of power supply and signal line is below 20N (2kg), and the bending radius of
the metal tube of power line is R7.

6. If it is necessary to use pneumatic, the outer diameter and inner diameter of the air pipe
shall be 4mm and 2.5mm respectively, and the recommended air pressure shall be 0.3-0.6Mpa.

Special Precautions

1. The diameter of the tool should be controlled below 20mm

2. The tool speed below 50-200mm/min (the speed is related to the electrical response of the machine)

3. Please pay attention to the chip and clean the surface where the air pipe cannot be blown, and do not accumulate filings 4. Please do not rotate the head of the tool setter, which may hurt the precision components
5.Install the blowing device properly to prevent leakage and detonation of the pipe

6. Use ambient temperature at-25-70 degrees
Celsius 7. When high pressure coolant and water jet impact the tool setter face, please set a protective cover

8. Do not exceed
the stroke of the tool setter (the stroke is 5mm) during contact, otherwise the internal precision components will be damaged

9.Please do not use your hands to press the surface to spring, which will damage the internal precision components 10. Use the center of the tool setter face as far as possible , lift the surface in vertically way , do not leave horizontally.

Key Points of the Tool Setter Program

Thefollowingparameters need to be changed in the first time use of the tool macro program. 09020（AUTO-TOOL-LENGTH-MEASUREMENT)
#510=-3.4 (The center position of the tool setter mechanical coordinate X axis direction）

#511=-70.8 (The center position of the
tool setter mechanical coordinate Y axis direction）

#100=1500 (FIRST FEED)

#101=1200（SECOND FEED)

#102=511.（Z MAX TRAVEL)
#103=4（RE MEASUREMENTERROR)

#104=0.05(TOOL MAX WEAR)

#105=50(MAX DIAMETER)

#106=15(OVER TOOLDIAMETER Y OFFSET)
#513=539.661(OFFSET) #3003=1 （SINGLE BLOCK DISABLE) ：

#512=-350 （First tool position）：：：：

M99
