IP67 Waterproof High Precision 0.001mm CNC Milling Machine Z Axis Automatic Tool Setter 20mm Diameter Height Measuring Sensor

Name: IP67 Waterproof High Precision 0001mm CNC Milling Machine Z Axis Automatic Tool Setter 20mm Diameter Height Measuring Sensor
Brand: Makinopc
Price: 94.30 USD

Buy cheap IP67 Waterproof High Precision 0.001mm CNC Milling Machine Z Axis Automatic Tool Setter 20mm Diameter Height Measuring Sensor product

machinery test report : Not Available

Stroke : 5mm

warranty : 1 Year

MOQ : 1 piece

video outgoing-inspection : Provided

Service time : 3 million times

Price : $94.30-115 / piece

Machine Type : Milling Machine, Grinding Machine, turning machine

Contact Alarm Push button : Red light

Counterblade size : 20mm

Protection structure : IP67*100% waterproof and oilproof sealing performance

Place of Origin : Guangdong, China

Output Mode : Normally Open/Normally Closed

Brand Name : Makinopc

Products name : Precision Automatic Tool Setter

Contact force : 4N (Installation status must be vertical)

Cable Sheath : Outside diameter 10m specification bellows, bellows 3 meters

Repeatability : 0.001mm (Condition: Operating speed 50-200mm/min)

weight (kg) : 1.2

Contact Now

Products Description

High Precision Automatic Tool Setter Z Axis Height Sensor for CNC Machining Centers

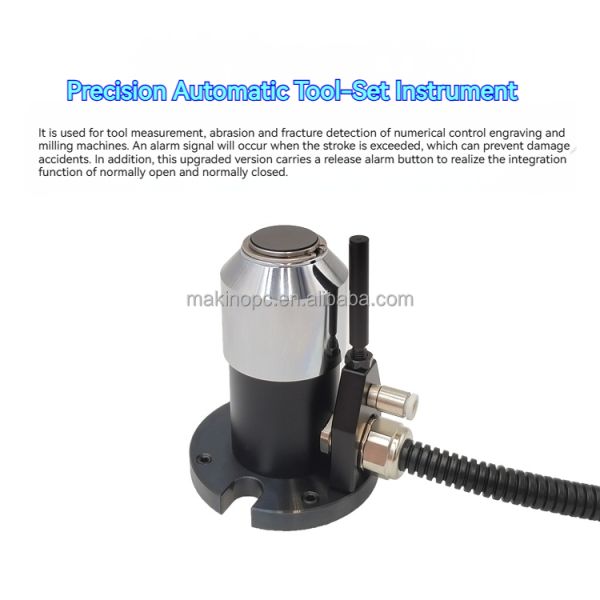

This tool presetter is used in CNC engraving and milling machines, CNC machining centers, engraving machines, grinding
machines, machine tools and other broken tool detection, tool measurement, wear and tear, fracture detection; beyond the stroke of the alarm signal will occur to prevent breakage accidents; in addition, this upgraded version carries the release of the alarm button, the realization of the integration of the function of the normally open and normally closed.

Product Paramenters

Product Name	Precision Automatic Tool Setter
Product Model	NC Series
Tool Setting face size	20mm

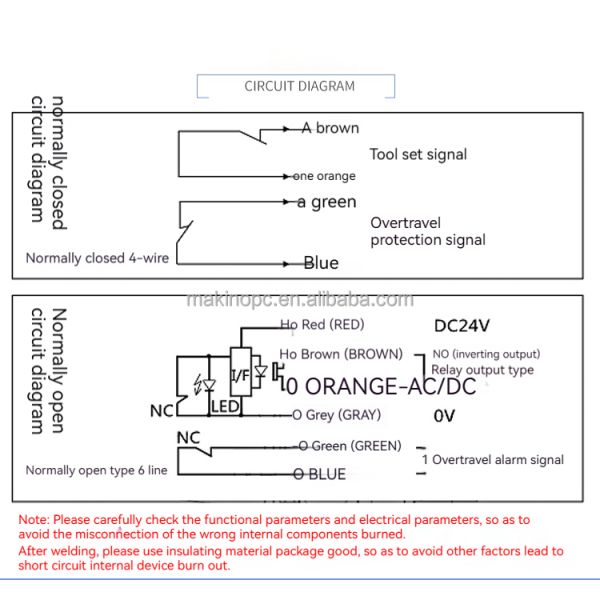

Output Mode	Normally Open/Normally Closed
Pre-stroke	Nothing
Stroke	5mm
Repeatability	0.001mm (Condition: Operating speed 50-200mm/min)
Contact life	3 million times
Protection structure	IP67*100% waterproof and oilproof sealing performance
Contact force	4N(Installation status must be vertical)
Contact part material	Super hard alloy
Surface treatment	Grinding 4S
Contact rating	DC24V-20mA(MAX)(Recommended value 10mA) Resistive load

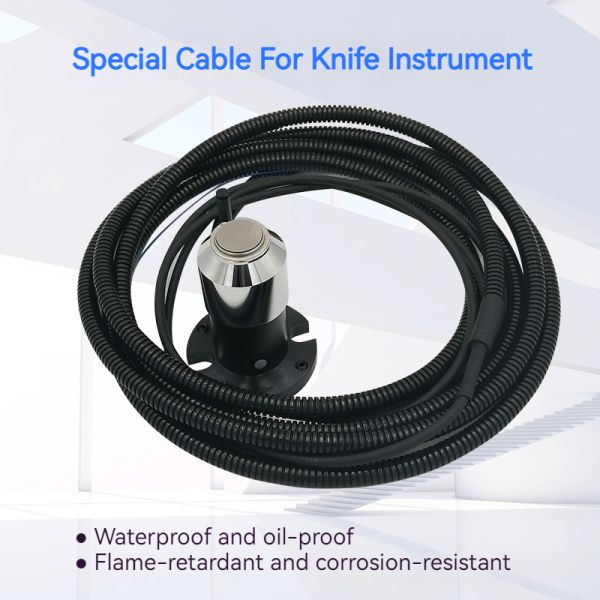

Cable	Standard 5m oil resistant, material black PU
Cable glands	Double metal oil-proof connector with locking bellows type
Cable Sheath	Outside diameter 10m specification bellows, bellows 3 meters
Control Box	Connecting REC231790 square junction box at the end of cable 500mm.
		The junction box is equipped with alarm release function, red LED power indicator and
		Green signal output indicator, light spacing 17mm, the middle position of the reset button
Contact Alarm Pushbutton	Red light (on behalf of the knife indicator alarm light), green light (on behalf of the normal operation)
Mounting Hole Distance	50.6mm
Net Weight	596.2g
Gross Weight	732.7g
Start alarm signal	Output Mode:NC Normally Closed (about 2.5mm from the detection signal)
Start alarm signal		Contact voltage: DC24V-20mA(MAX)(Recommended value 10mA) Resistor load

Details Images

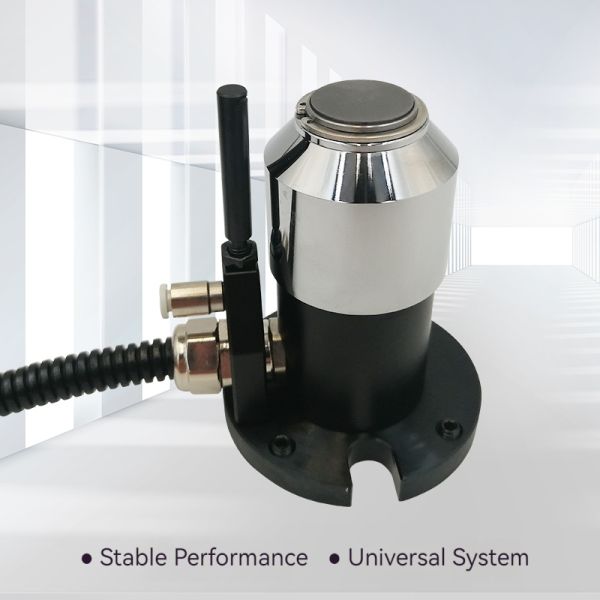

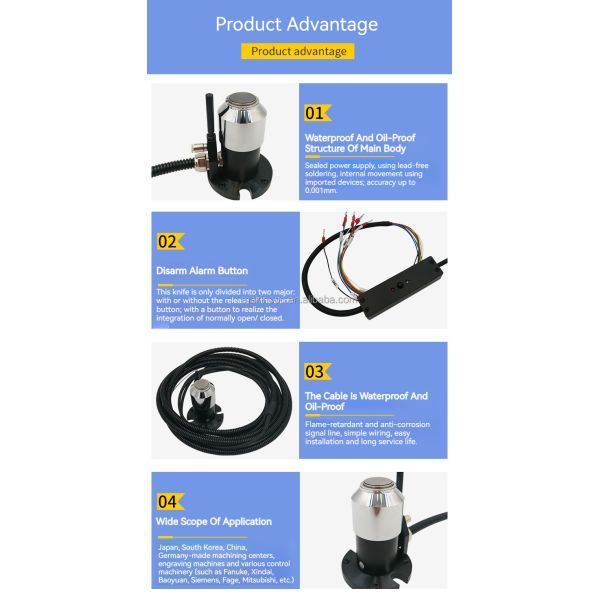

IP67 Waterproof High Precision 0.001mm CNC Milling Machine Z Axis Automatic Tool Setter 20mm Diameter Height Measuring Sensor

Product packaging

We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.

Company Profile

Founded in 2014, Shenzhen Muye Precision Control Electromechanical Co., Ltd. is a service-oriented enterprise integrating R&D, design and sales of CNC numerical control machine tools accessories, and the products currently put on the market mainly include CNC numerical control machine tools with automatic tool setting instrument, electronic handwheels, hand-cranked pulse generators, on-line measuring probes, band switches, spindle encoders, system panels, electronic handwheel accessories supporting programs, and the realization of automatic tool setting installation and debugging solutions. Commissioning solutions, etc. Our factory is located in Songgang, Bao'an District, Shenzhen City, covers an area of more than 3,000 square meters, with 20 professional and technical personnel, 15 sets of testing instruments, two production lines. The production capacity reaches 100,000 units per month. We have exclusive patent design and own brand, and have won many quality certificates. The products are widely used in Fanuc, , Mitsubishi, Fagor, Heidenhain, Bao Yuan, New Generation, HANUC, Guangzhou CNC GSK, open CNC, Kain Emperor KND, Nuoxin, Delta, a variety of PLCs, CNC CNC machining centers, engraving machines, engraving and milling machines, drilling and tapping machines, EDM, milling machines, lathes and so on. The company in line with the "customer first, integrity first" principle with a number of enterprises to establish long-term cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.

Our Advantages

1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.
