Showroom Location : China
Counterbore Diameter : 20mm
Contact life : 3 million times
Place of Origin : Guangdong, China
machinery test report : Not Available
video outgoing-inspection : Provided
weight (kg) : 1.5
Contact rating : DC24V~20mA(MAX) Recommended Value 10mA Resistance Load
Contact strength : 2.5N(Mounting condition:Vertical)
Stroke : 12mm
Brand Name : Makinopc
Surface treatment : Grinding 4S mirror
Marketing Type : Ordinary Product
Applicable Industries : Manufacturing Plant, Machinery Repair Shops, CNC Machining Center
Core Components : Tungsten steel,Cable,PCBA
MOQ : 1 piece
Price : $105-115 / piece
Signal output : Normally open/closed
Repeatability : 0.001mm (condition: operating speed 50-200mm/min)
Condition : New
warranty : 1 Year

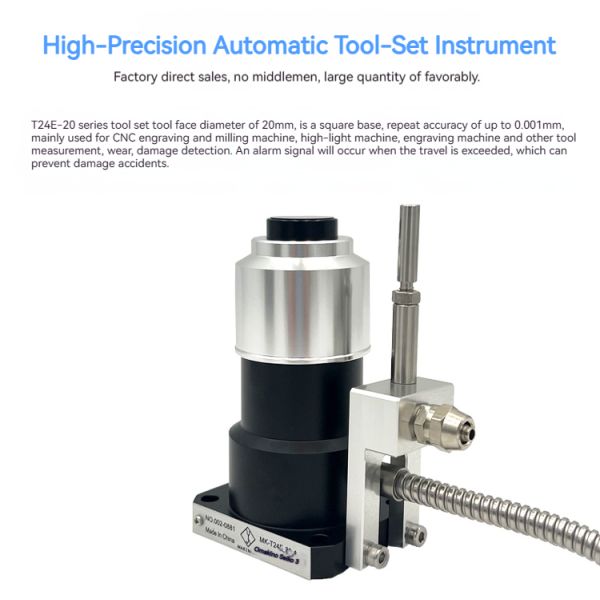

Product Name : Precision Automatic Tool Setting Instrument
Product Model : T24E-20
Product Name | Precision Automatic Tool Setter / CNC Tool Setting Instrument |
Product Model | T24E-20 |
Signal output | Normally open/closed |
Counterbore Diameter | 20mm |
Material | Tungsten steel |
Surface treatment | Grinding 4S mirror |
Repeatability | 0.001mm (condition: operating speed 50-200mm/min) |
Contact life | 3 million times |
Contact strength | 2.5N(Mounting condition:Vertical) |
Pre-travel | No |
Stroke | 12mm |
Contact rating | DC24V~20mA(MAX) Recommended Value 10mA Resistance Load |
Cable Specification | Standard 5m (customizable)6 core 4.8 tensile strength 30N,minimum bending radius R7 |
Cable Sheath | Standard 1.5m (can be customized) minimum bending radius R25 |
LED Lights | Normally closed, open at work |
Waterproof Rating | IP68*100% waterproof, oilproof sealing performance |
Net Weight | 641g |
Gross Weight | 721g |
Overtravel Alarm Signal | Output Mode:NC/Normally Closed(Emergency stop when signal is disconnected/Normally Open can be ordered) |
Contact Voltage:DC24V/20mA resistive load | |
(Load and current limitation are required in special cases) |










|
|

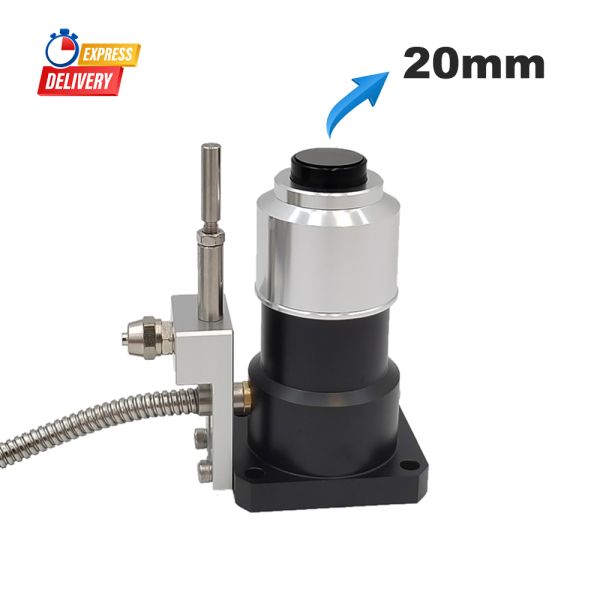

T24E-20 Square Base 20mm CNC Engraving Milling Tool Setter Measurement Detection Z Axis Pre-setter for CNC Control Machine Images |
