Product Model : T24E-40
Signal output : Normally open / Normally closed
Stroke : 12mm
machinery test report : Not Available
Brand Name : Makinopc
Product Name : Precision Automatic Tool Setting Instrument
Contact strength : 2.5N(Mounting condition:Vertical)
Contact rating : DC24V~20mA(MAX) Recommended Value 10mA Resistance Load
Repeatability : 0.001mm (condition: operating speed 50-200mm/min)
Price : $119-129 / piece
weight (kg) : 1.5
Counterbore Diameter : 40mm
Machine Type : Milling Machine, Drilling Machine, Grinding Machine
video outgoing-inspection : Provided
Surface treatment : Grinding 4S mirror
Contact life : 3 million times
warranty : 1 Year
MOQ : 1 piece
Place of Origin : Guangdong, China
Product Name | Precision Automatic Tool Setter / CNC Tool Setting Instrument |
Product Model | T24E-40 |
Signal output | Normally open/closed |
Counterbore Diameter | 40mm |
Material | Tungsten steel |
Surface treatment | Grinding 4S mirror |
Repeatability | 0.001mm (condition: operating speed 50-200mm/min) |
Contact life | 3 million times |
Contact strength | 2.5N(Mounting condition:Vertical) |
Pre-travel | No |
Stroke | 12mm |
Contact rating | DC24V~20mA(MAX) Recommended Value 10mA Resistance Load |
Cable Specification | Standard 5m (customizable)6 core 4.8 tensile strength 30N,minimum bending radius R7 |
Cable Sheath | Standard 1.5m (can be customized) minimum bending radius R25 |
LED Lights | Normally closed, open at work |
Waterproof Rating | IP68*100% waterproof, oilproof sealing performance |
Net Weight | Middle 40:1002g;Middle 60:1147.0g |
Gross Weight | Medium 40:1081g;Medium 60:1282.4g |
Overtravel Alarm Signal | Output Mode:NC/Normally Closed(Emergency stop when signal is disconnected/Normally Open can be ordered) |
Contact Voltage:DC24V/20mA resistive load | |
(Load and current limitation are required in special cases) |









|
|

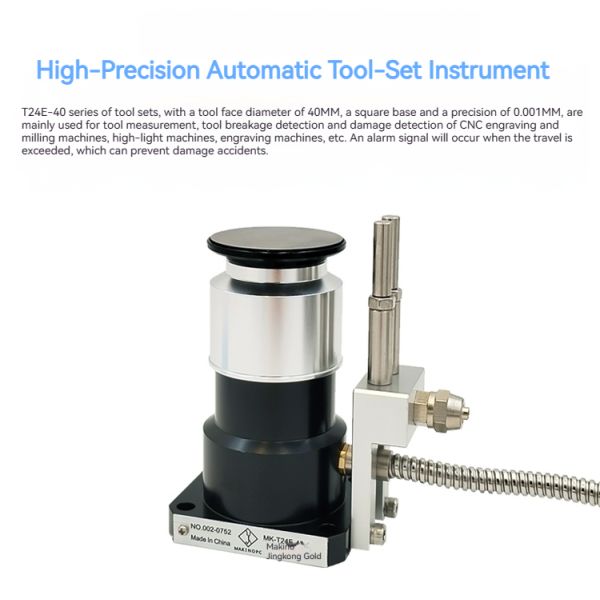

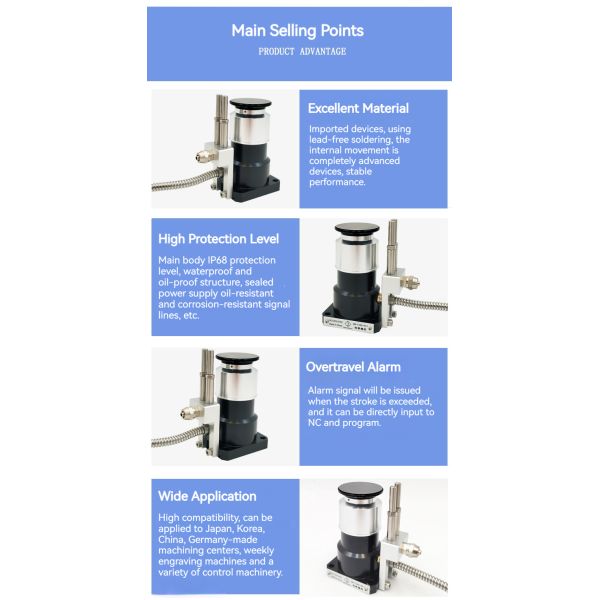

Makinopc T24E-40 High Precision 40mm Diameter CNC Tool Setter Grinding 4S Mirror Surface Treatment 0.001mm Repeatability Machine Images |
