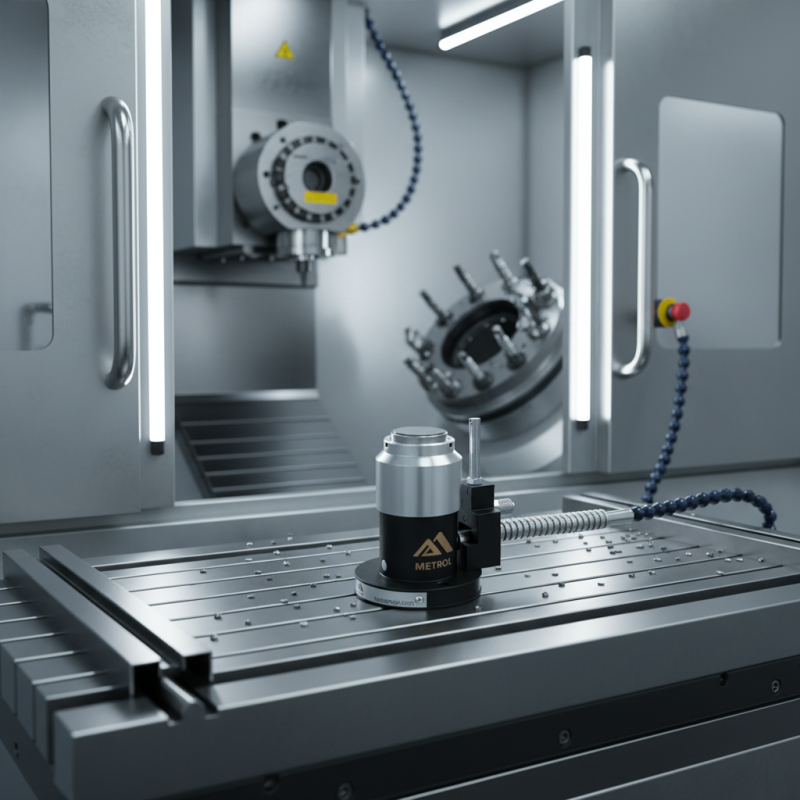

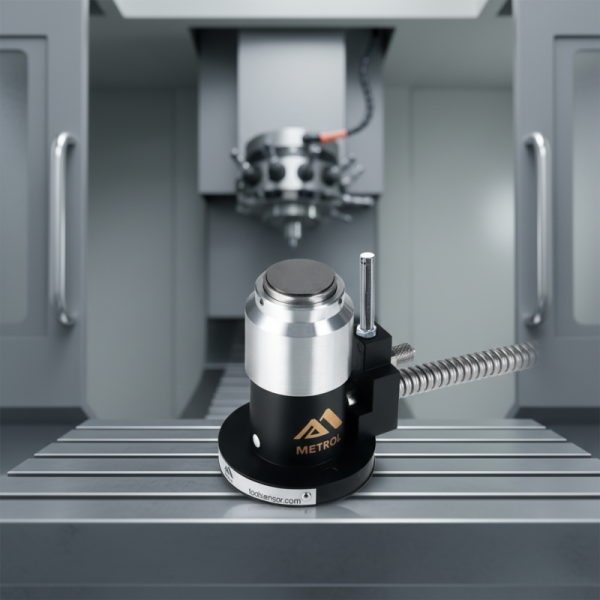

High Precision METROL TM26D Tool Setter for CNC Milling Machines with Tungsten Carbide Contact

Contact structure : NC (Normally closed)

Product name : TM26D

machinery test report : Provided

Price : $385-395 / piece

Contact diameter : 20

MOQ : 1 piece

Contact material : Tungsten carbide

Place of Origin : Guangdong, China

Brand Name : METROL

Machine Type : Milling Machine, lathe machine, Grinding Machine

Surface finishing : Grinding 4s

video outgoing-inspection : Provided

Contacting part : Stationary type

Output mode : NO (Normally open)

weight (kg) : 2

Repeatability : 0.001 (Recommended operating speed of 50 - 200mm/min)

warranty : 6 Months

Contact Now

Product descriptions from the supplier

Metrol tool setter TM26D-2-3-02 include not only precision positioning sensors for CNC machine tools but also tool measurement systems for other CNC machines. In addition to presetting tool positions, they are used to detect wear, breakage, and to compensate for thermal displacement of the machine.

Signals are output directly from contact with the tool tip, thereby preventing false readings and ensuring high reliability.

The built-in contact switch offers high precision (repeatability of 1 μm) with no drift.

No amplifier is required, so there is no temperature deviation caused by the sensors own heat dissipation or temperature characteristics.

The dust- and water-resistant design ensures excellent durability even in environments with coolant and flying metal chips. An alarm signal is triggered in the event of overtravel.

High Precision METROL TM26D Tool Setter for CNC Milling Machines with Tungsten Carbide Contact
High Precision METROL TM26D Tool Setter for CNC Milling Machines with Tungsten Carbide Contact
High Precision METROL TM26D Tool Setter for CNC Milling Machines with Tungsten Carbide Contact
About this supplier

Shenzhen Muye Precision Control Electromechanical Co., Ltd., established in 2014, specializes in CNC machine tool accessories and components. With 11-50 employees, it offers high-precision tool setters, touch probes, and integrated solutions for brands like FANUC and . Products ensure high reliability with 1 μm repeatability and dust/water resistance. The company holds patents and technical certifications, supporting rapid delivery and small-batch customization.
