Place of Origin : Guangdong, China
machinery test report : Not Available
warranty : 1 Year
Diameter of counterface : 10mm, 06mm
Contact life : 3 million times
Price : $65-75 / piece
Machine Type : Milling Machine, turning machine, lathe machine
Product Name : Mini Type Tool Setter Z Axis Presetter
video outgoing-inspection : Not Available
Output Mode : B: NC (Normally closed)
Brand Name : MAKINOPC
Stroke : 5
MOQ : 1 piece
Protection structure : IP67
Repeatability : 0.001mm (Condition: Operating speed 50-200mm/min)
weight (kg) : 1
Product Model : MP11-10-2, MP11-06-2
Contact force : 1.5N (Mounting condition:Vertical)
Contact surface material : Tungsten steel
Product Name | Mini Tool Setter |
Product Model | MP11-10-2, MP11-06-2 |
Diameter of counterface | 10mm, 06mm |
Output Mode | B:NC(Normally closed) |
Pre-stroke | 0 |
Stroke | 5 |
Repeatability | 0.001mm (Condition: Operating speed 50-200mm/min) |
Contact life | 3 million times |
Protection structure | IP67 |
Contact force | 1.5N(Mounting condition:Vertical) |
Contact surface material | Tungsten steel |
Surface treatment | Ground 4S mirror |
Contact rating | DC24V-20mA(MAX)(Recommended value: 10mA) Resistive load |
Cable | 3m oil-resistant 2-core 4.8 tensile strength 30N, minimum bending radius R7 |
Net weight | 72.7g |
Gross Weight | 77.8g |








|
|

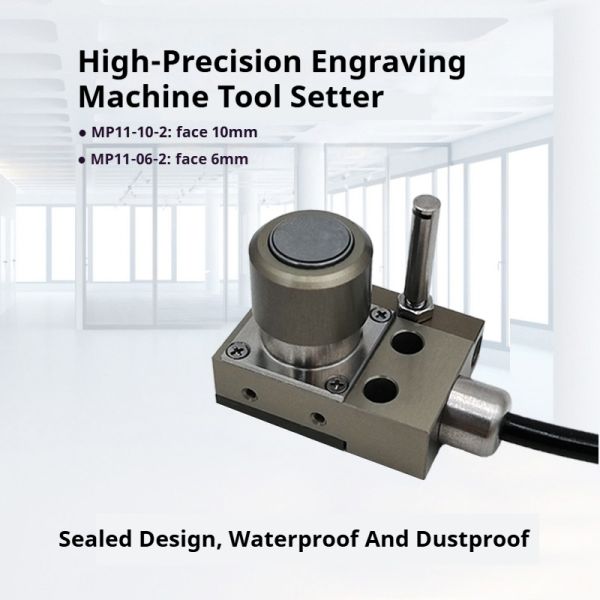

Makinopc MP11-10-2 Mini 6/10mm Diameter CNC Machine Tool Setter Z Axis IP67 Protection Tungsten Steel Contact Surface for Jade Images |
