MOQ : 1 set
Machine Type : Punching Machine, Milling Machine, planning machine
Repeatability : 0.001mm (Condition: Operating speed 50-200mm/min)
Product Model : MP11-10-2
Stroke : 5
Product Name : Mini Type Tool Setter for Small CNC Machining Centers
Contact life : 3 million times
Protection structure : IP67
Contact Diameter : 10mm
Contact force : 1.5N (Mounting condition:Vertical)
weight (kg) : 2
Place of Origin : Guangdong, China
Price : $70-75 / set
machinery test report : Not Available
Brand Name : Makinopc
warranty : 1 Year
Output Mode : NC (Normally closed)
Product ModelB37:C53B37:C52 | MP11-10-2 |
Tooling Face Diameter | ⌀10 |
Tooling Face Material | Alloy Steel |
Surface Treatment Method | Polished 4S Mirror Finish |
Output Mode | NC Normally Closed |
Pre-travel | None |
Travel | 5m |
Repeatability | 0.001mm (Speed: 50~200mm/min) |
Contact Point Life | 3 million cycles |
Protective Structure | IP68* Waterproof, Oil-Resistant |
Contact Force | 1.5N (Vertical installation required) |
Power Supply Voltage | DC24V+10% |
Current Consumption | 10 mA (max) |
Cable | Standard 2m oil-resistant cable, 2-core, min. bending radius R7 |
Metal Protective Tube | None |
Operating Temperature Range | -20℃~60℃ (No frost) |






|
|

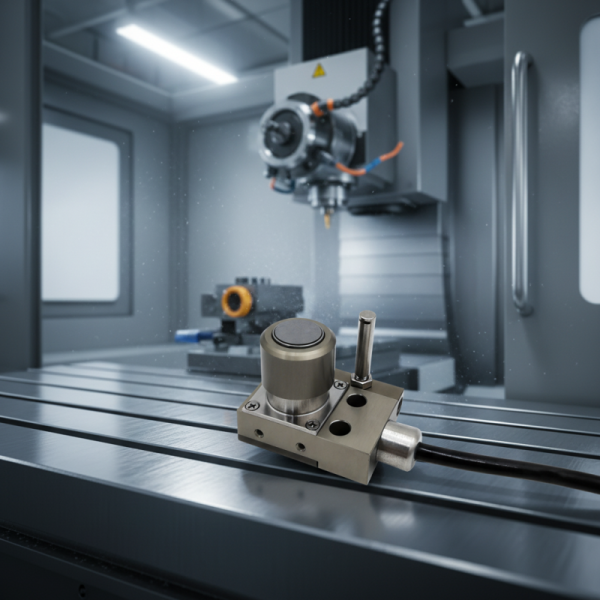

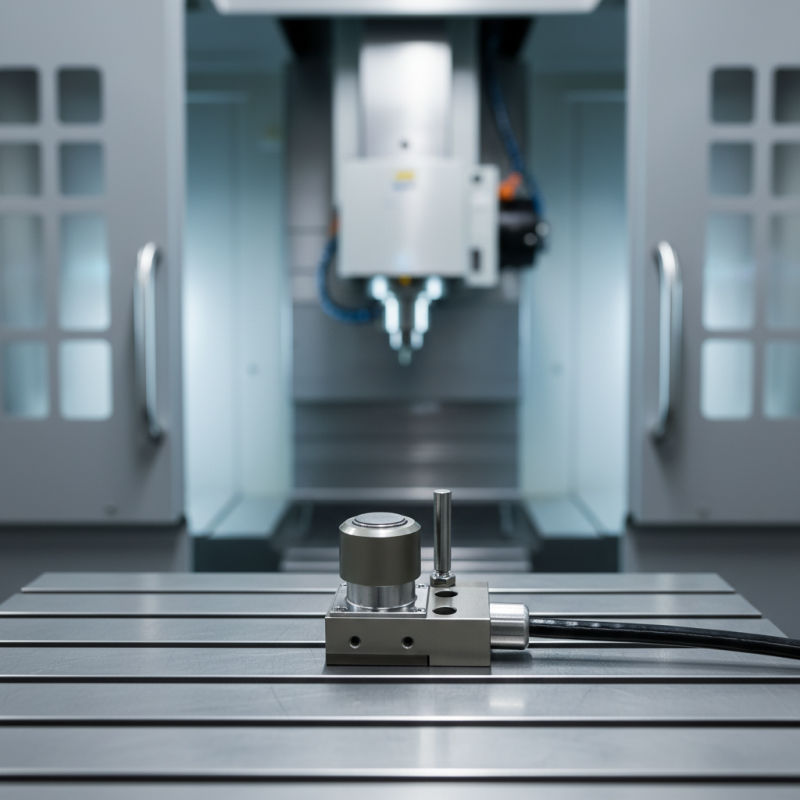

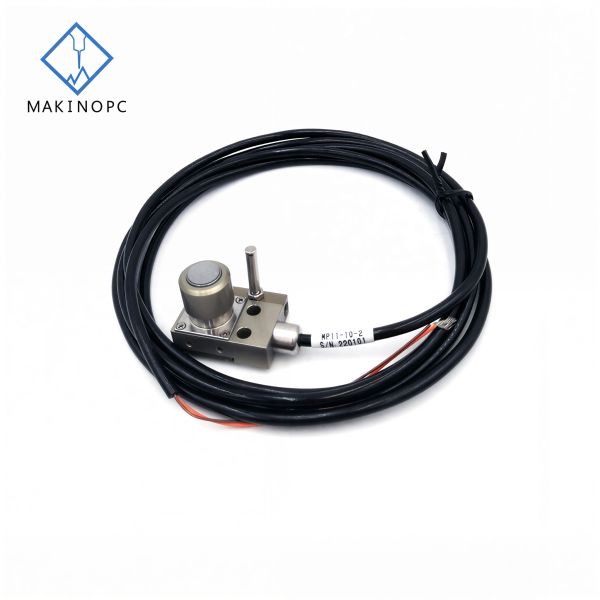

MP11-10-2 Mini Tool Setter 10mm Diameter 0.001mm Accuracy NC Output 1.5N for Dental Dispensing Engraving Milling Machines Images |
