Makinopc Multi Direction Tool Setter 2 Way Clamping Stations for CNC Machining Centers Tool Detection

Name: Makinopc Multi Direction Tool Setter 2 Way Clamping Stations for CNC Machining Centers Tool Detection
Brand: Makinopc
Price: 429 USD

Buy cheap Makinopc Multi Direction Tool Setter 2 Way Clamping Stations for CNC Machining Centers Tool Detection product

Place of Origin : Guangdong, China

Product Name : Multi direction tool setter

Measuring direction : ±X, ±Y,+Z

Price : $429 / piece

video outgoing-inspection : Provided

Marketing Type : Ordinary Product

Contact life : 3 million cycles

Applicable Industries : Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works , Energy & Mining

Protection structure : IP67

Repeatability : 0.001mm (condition: operating speed 50-200mm/min)

weight (kg) : 2

machinery test report : Not Available

Contact Diameter : 14-20mm

Core Components : PLC, Bearing, Pressure Vessel

Showroom Location : None

Brand Name : Makinopc

Condition : New

Product Model : MS27R-3-1

MOQ : 1 piece

warranty : 1 Year

Output Mode : Hardwired transmission

Contact Now

Products Description

Brief Introduction

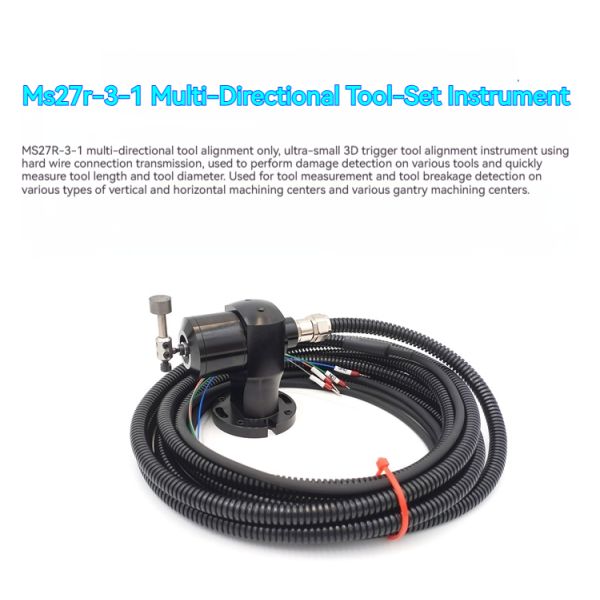

Multi-directional tool setting instrument is mainly used for CNC machine tools CNC machining centers, cutting tools, tool length, tool diameter, offset measurement, broken tool detection, tool positioning, wear and tear, fracture detection. Is a variety of models of vertical, horizontal a variety of gantry machining centers tool special measurement system, using the cable connection with the CNC machine tool to continue real-time communication, the measurement signal of the probe through the cable real-time output to the CNC system, with a special macro program. Alarm signals will occur if the stroke is exceeded, which can prevent breakage accidents!

Product Paramenters

Product Name	Multi-Directional Tool Setter
Product Model	MS27R-3-1
Control Output	PNP/NPN(Normally Open/Normally Closed)
Contact Diameter	14-20mm
Measuring direction	±X,±Y,+Z
Material	Alloy
Surface treatment	Ground 4S mirror
Repeatability	0.001mm
Contact life	3 million cycles
Contact strength	0.7N
Stroke	3mm
Supply Voltage	12-24VDC
Contact rating	15mA(MAX) Recommended Value 10mA Resistance Load

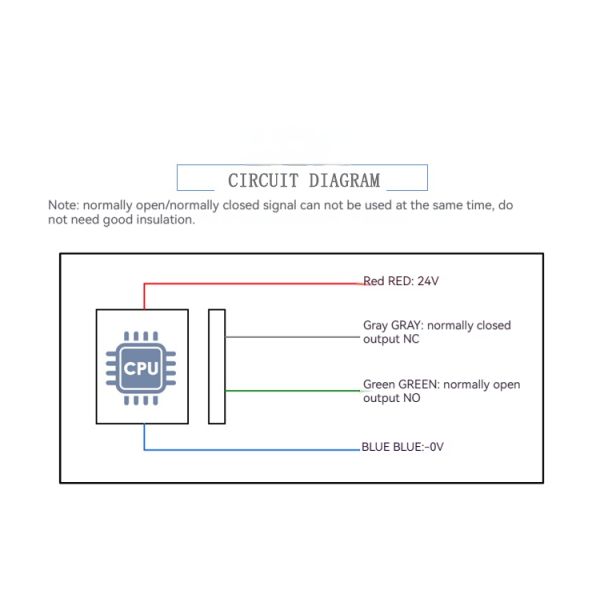

Number of signals	4 wires 2 sets of signal output
Cable specification	5m highly flexible oil resistant drag chain cable
Protection structure	IP67
Ambient Temperature	-20°C to +40°C
Relative Humidity	25% to 95% non-condensing
Net weight	605g
Gross Weight	620g
Side head size (optional)	8 round head, 8*8 square head, others
Attention	Be sure to use it within the rated power range. (12-24VDC), and the mounting base needs to be ground protected or shielded.

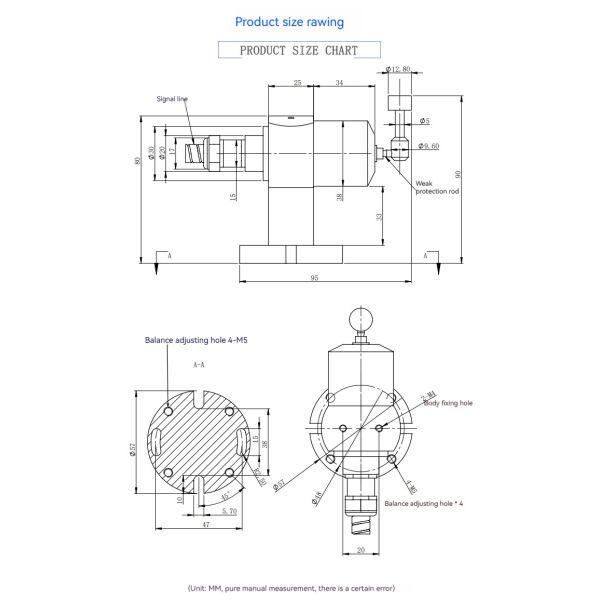

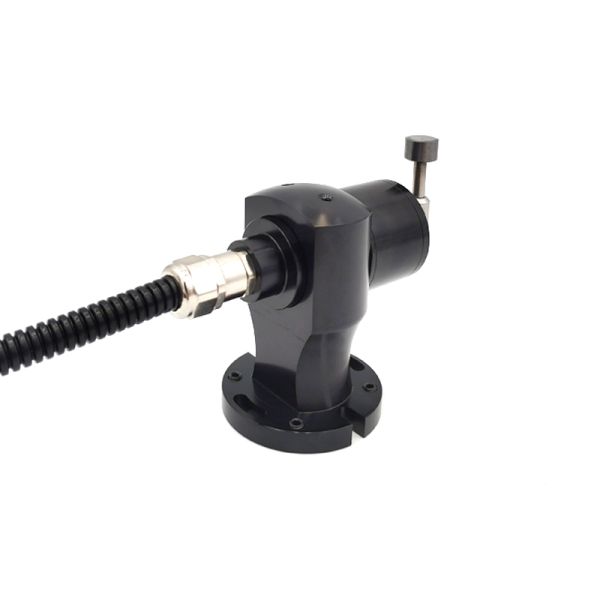

Details Images

Makinopc Multi Direction Tool Setter 2 Way Clamping Stations for CNC Machining Centers Tool Detection

Product packaging

We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.

Company Profile

Founded in 2014, Shenzhen Muye Precision Control Electromechanical Co., Ltd. is a service-oriented enterprise integrating R&D, design and sales of CNC numerical control machine tools accessories, and the products currently put on the market mainly include CNC numerical control machine tools with automatic tool setting instrument, electronic handwheels, hand-cranked pulse generators, on-line measuring probes, band switches, spindle encoders, system panels, electronic handwheel accessories supporting programs, and the realization of automatic tool setting installation and debugging solutions. Commissioning solutions, etc. Our factory is located in Songgang, Bao'an District, Shenzhen City, covers an area of more than 3,000 square meters, with 20 professional and technical personnel, 15 sets of testing instruments, two production lines. The production capacity reaches 100,000 units per month. We have exclusive patent design and own brand, and have won many quality certificates. The products are widely used in Fanuc, , Mitsubishi, Fagor, Heidenhain, Bao Yuan, New Generation, HANUC, Guangzhou CNC GSK, open CNC, Kain Emperor KND, Nuoxin, Delta, a variety of PLCs, CNC CNC machining centers, engraving machines, engraving and milling machines, drilling and tapping machines, EDM, milling machines, lathes and so on. The company in line with the "customer first, integrity first" principle with a number of enterprises to establish long-term cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.

Our Advantages

1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.

FAQ

Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2: How to choose the appropriate model or specifications? A:Based on your requirement and application, our professional engineers will offer you a detailed suggestions regarding models and specifications. Q3:Can I become your dealer? A:Of course, we need partners to create value together. Q4: Do you accept customized service? A:Yes, we can provide not only standard products, but also customized service and solutions. Q5: Do you have any MOQ (minimum order quality)limit? A: For standard product, usually 1pcs/item. For the OEM order, need to communicate product solutions. Q6.How long is the product shelf life? A: Our product watranty period is one year. Q7: How to proceed an order? A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a paying link.Online trading is safe and convenient.
