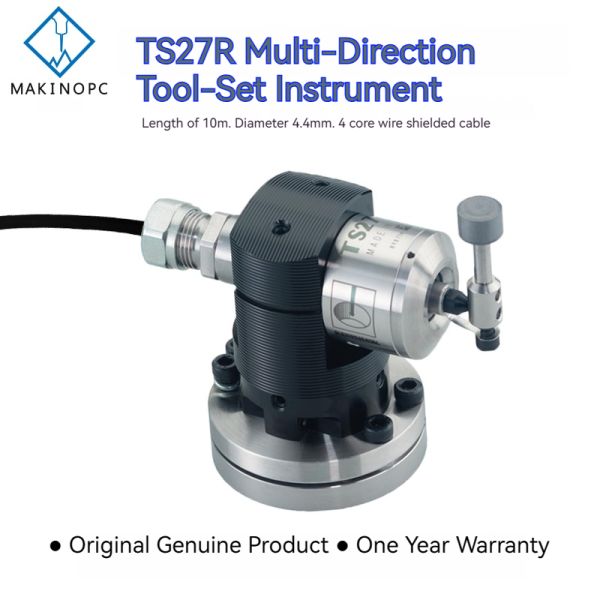

Product Name : Renishaw 5-way tool setting probe
Contact Diameter : 14-20mm
Measuring direction : ±X, ±Y,+Z
Repeatability : 0.001mm (condition: operating speed 50-200mm/min)
Protection structure : IP68
Price : $1,085-1,095 / piece
video outgoing-inspection : Not Available
Contact life : 3 million cycles
Brand Name : Renishaw
warranty : 1 Year
Product Model : TS27R
Receiver/Interface : M18-4 or HSI
weight (kg) : 2
MOQ : 1 piece
Machine Type : Milling Machine, lathe machine, turning machine
Recommended styli : Disk styli or square styli
Output Mode : Hardwired transmission
machinery test report : Not Available
Place of Origin : Guangdong, China
Product Name | Renishaw 5-way tool setting probe |
Product Model | TS27R |
Brand name | Renishaw |
Output Mode | Hardwired transmission |
Contact Diameter | 14-20mm |
Receiver/Interface | M18-4 or HSI |
Recommended styli | Disk styli or square styli |
Pre-travel | 0 |
Measuring direction | ±X, ±Y,+Z |
Repeatability | 0.001mm (condition: operating speed 50-200mm/min) |
Contact life | 3 million cycles |
Protection structure | IP68 |
Contact force | 1.3-2.4N (depending on sensing direction) |
Material of contact part | Tungsten steel/ceramic |
Surface treatment | Ground 4S mirror |
Cable | Standard 10m(4.35mm diameter, 4 core shielded cable) |

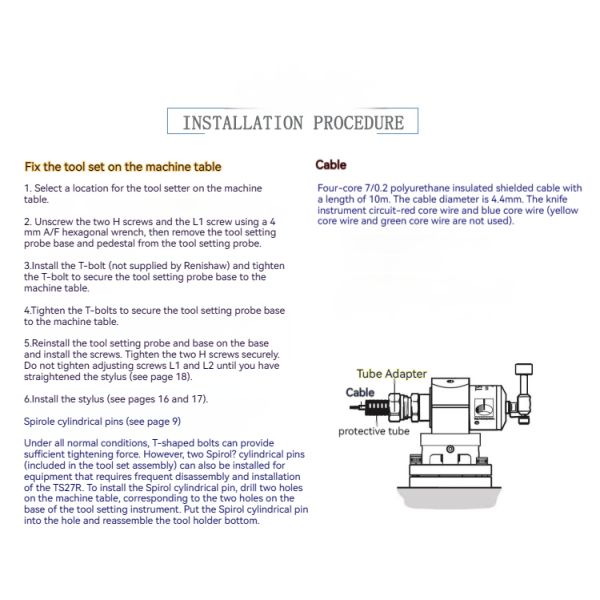

Installation | M12T-bolt |
with disk stylus | 1055g |
Operating Temperature | +5°C to 60°C |
Storage temperature | -10℃ to +70 |










|
|
Renishaw TS27R 5-Way Multi-Direction Tool Setting Probe 20mm Diameter IP68 Protection 0.001mm Repeatability for Milling Machine Images |
