FUTURE Electronic Handwheel 4/6 Axis Pulse Generator 100PPR 5V DC MPG for Fanuc CNC Machine PLC System

Name: FUTURE Electronic Handwheel 46 Axis Pulse Generator 100PPR 5V DC MPG for Fanuc CNC Machine PLC System
Brand: FUTURE
Price: 45 USD

Buy cheap FUTURE Electronic Handwheel 4/6 Axis Pulse Generator 100PPR 5V DC MPG for Fanuc CNC Machine PLC System product

Product Name : FUTURE Electronic Handwheels

Warranty : 12 months

Protection class : IP67

material : Metal

Number of pulses : 25PPR, 100PPR

Place of Origin : Taiwan, China

Number of Cables : Static is 1.8M, stretch up to 5M helix

machinery test report : Not Available

warranty : 1 Year

Product Model : EHDW Series

Price : $45-65 / piece

MOQ : 1 piece

Immunity : EN50082-2 standard

video outgoing-inspection : Provided

weight (kg) : 1.5

Brand Name : FUTURE

style : Solid

Product Size : 124mm(L)*73mm(W)*26mm(Thick)

Rated Voltage : 5~24V (DC 5V or 12V power system (24V for PLC system)

Option Switch : Axis selection OFF XY12345 6,Multiplier*1*10*100

Contact Now

Products Description

FUTURE Electronic Handwheel EHDW Series 25PPR, 100PPR

EHDW-BA4S-IM, EHDW-CA4S-IM: for Fanuc system, axis X, Y, Z, 4 EHDW-BD4S-IM, EHDW-CD4S-IM: for Mitsubishi system, axis X, Y, Z, 4 EHDW-BE4S-IM, EHDW-CE4S-IM: for system, axis X, Y, Z, 4 (Note 4S represents the number of axes e.g. 4S=4 axes, 5S=5 axes, 6S=6 axes ------)

Currently on the market can see the system we this handwheel can be adapted to the specific reference, such as

The following: EHDW series is applicable to Fanuc, Weihong, Guangdian, Beijing Jingdiao, , Bao Yuan, new generation, hair frame, Cain Emperor, Zhongwei Xing, Mitsubishi and other systems.

PLEASE NOTE: Please select the appropriate handwheel for your CNC machine control system. All electronic handwheels are supplied with wires without plugs by default, please contact us if you need plugs and soldering service.

Product Paramenters

Product Name	FUTURE Electronic Handwheels
Product Model	EHDW Series
Product Size	124mm(L)73mm(W)26mm(Thick)
Rated Voltage	5~24V (DC 5V or 12V power system (24V for PLC system))
Number of pulses	25PPR, 100PPR
Immunity	EN50082-2 standard
Option Switch	Axis selection OFF XY12345 6,Multiplier110*100
Number of Cables	Static is 1.8M, stretch up to 5M helix
Protection class	IP67

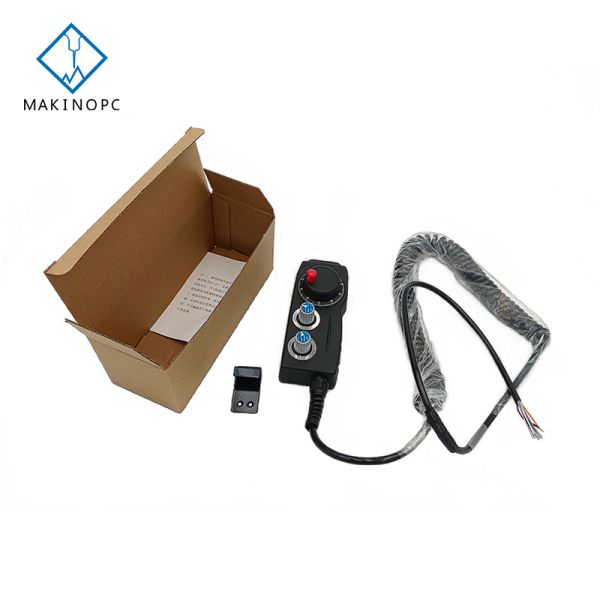

Full set of accessories	Electronic handwheel, including high-grade hooks, including 5 meters of oil-resistant spiral wire, instructions
Warranty	12 months
Net Weight	647g
Gross Weight	805.6g
System Options	This handwheel can be equipped with the following systems: Fanuc, , Mitsubishi, Kainty, GSK, Baoyuan, Xindai, Heinak, Kaikai, Fagor, Heidenhain, Sikai, Huaxing, Huazhong, Dasen, Aerospace, Guangtai, Weihong, and other kinds of CNC numerical control systems.

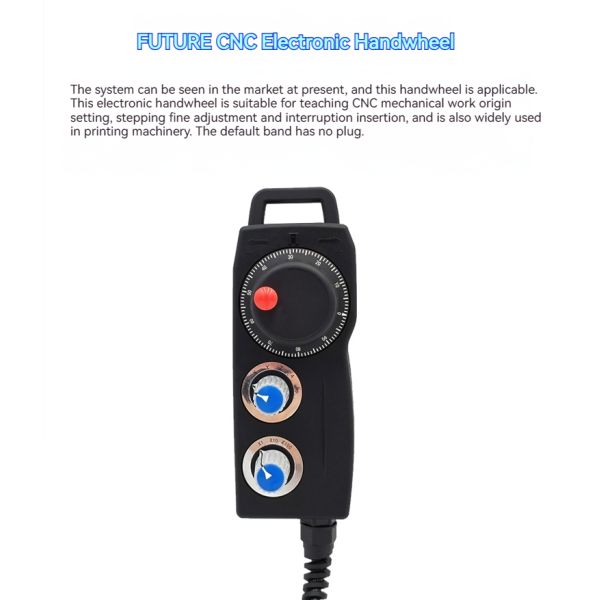

Details Images

FUTURE Electronic Handwheel 4/6 Axis Pulse Generator 100PPR 5V DC MPG for Fanuc CNC Machine PLC System

Product packaging

We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.

Company Profile

Shenzhen Muye Precision Control Electromechanical Co., Ltd., established in 2014, is a service-oriented enterprise specializing in the R&D, design, and sales of CNC machine tool accessories. Our current product portfolio primarily includes: CNC machine tool probes, automatic tool setters, electronic handwheels, manual pulse generators, measuring styli, spindle encoders, band switches, sensors, and installation/commissioning solutions for automatic tool changers. Our factory is located in Songgang Town, Bao'an District, Shenzhen, covering an area exceeding 3,000 square meters. We employ 20 professional technicians, operate 15 testing instruments, and maintain two production lines, achieving a monthly production capacity of 100,000 units. Our products feature exclusive patented designs and proprietary brands, and have obtained multiple international quality certifications including CE, FCC, and RoHS. Our products are widely compatible with PLC control systems including Fanuc, , Mitsubishi, Fagor, Heidenhain, Baoyuan, New Generation, Hanac, GSK CNC (Guangzhou), Open Source CNC, KND, Norson, Delta, and more. They serve CNC machining centers, engraving machines, engraving/milling machines, drilling/reaming machines, EDM machines, milling machines, lathes, and other equipment. Guided by the business philosophy of “Customer First, Integrity-Based,” the company has established long-term partnerships with numerous enterprises. We warmly welcome professionals worldwide to visit and discuss business opportunities.

Our Advantages

1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.

FAQ

Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2: How to choose the appropriate model or specifications? A:Based on your requirement and application, our professional engineers will offer you a detailed suggestions regarding models and specifications. Q3:Can I become your dealer? A:Of course, we need partners to create value together. Q4: Do you accept customized service? A:Yes, we can provide not only standard products, but also customized service and solutions. Q5: Do you have any MOQ (minimum order quality)limit? A: For standard product, usually 1pcs/item. For the OEM order, need to communicate product solutions. Q6.How long is the product shelf life? A: Our product watranty period is one year. Q7: How to proceed an order? A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a paying link.Online trading is safe and convenient.
