Place of Origin : Guangdong, China
MOQ : 1 piece
Showroom Location : None
Core Components : Housing/Nut/Operating Rod:SUS303
warranty : 1 Year
video outgoing-inspection : Provided
Price : $11.90-14.50 / piece
Brand Name : OEM/ODM
Applicable Industries : CNC machining center
Condition : New
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine
weight (kg) : 0.5
machinery test report : Not Available
Marketing Type : Ordinary Product
Supply Voltage | DC12~24V |
Stroke | 8mm |
Operating force | 0.4N |
Work point position [PT] | 0.3~0.8mm |
Differential [MD] | 0.1mm or less |
Repeat positioning accuracy | ±0.01mm |
Output current | 50mA MAX |
Leakage current | 0.5mA or less max. when OFF |
Operating frequency | 60 times/min or less |
Withstanding Voltage | AC1000V |
(1 minute, between the whole charging part and the case) | |
Insulation resistance | DC250V |
(20MΩ or more, between the whole charging part and the case) | |
Operating Temperature | -20°C~+85°C (no condensation) |
Humidity | 20~95%RH |
Wire specification | Φ2.8x1m |
ZTS92: Gray | |
ZTS92(B): Black | |
Material of operating rod | SUS303 |
Housing Material | Glass fiber reinforced resin (black) |
Installation | M3 screw, tightening torque 0.3N-m |
Indicator light | Red color |
Protection class | IP65 |







|
|

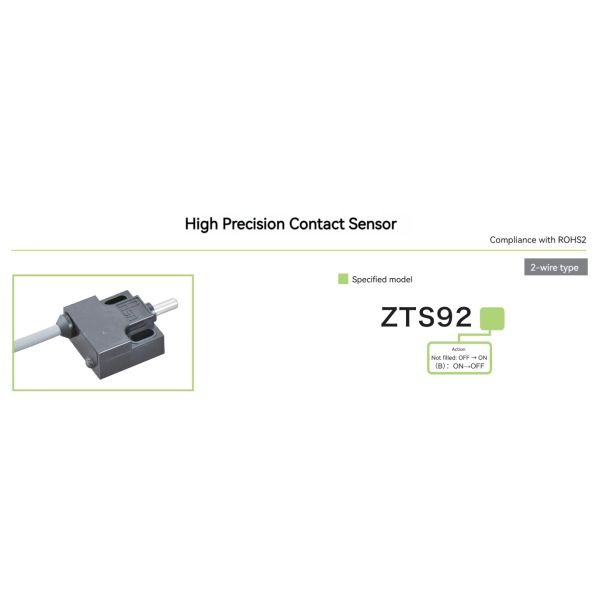

ZTS92 Makinopc High Precision CNC Machine Inductive Contact Sensors Detection Flat Mount Limit with Red Indicator Light Images |
