weight (kg) : 1.5
Brand Name : OEM/ODM
Applicable Industries : CNC machining center
video outgoing-inspection : Provided
machinery test report : Not Available
MOQ : 1 piece
Place of Origin : Japan
Condition : New
Core Components : Housing/Nut/Operating Rod:SUS303
Price : $11.90-14.50 / piece
warranty : 1 Year
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine
Supply Voltage | DC12~24V |
Stroke | 8mm |
Operating force | 0.4N |
Work point position [PT] | 0.3~0.8mm |
Differential [MD] | 0.1mm or less |
Repeat positioning accuracy | ±0.01mm |

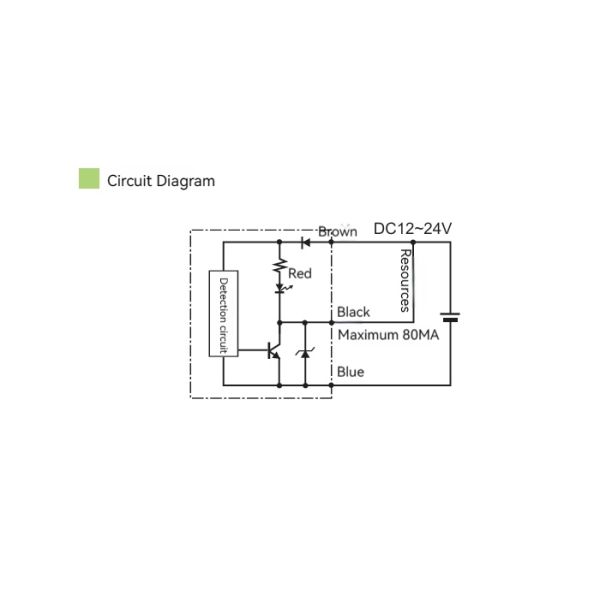

Output method | ZTS93. |
ZTS93: NPN Normally open (ON for proximity) | |
ZTS93(B). | |
ZTS93(B): NPN normally closed (OFF at proximity) | |
Output current | 80mA MAX |
Current consumption | 15mA MAX |
Operating Frequency | Less than 60 times/minute |
Withstanding Voltage | AC1000V |
(1 minute, between the whole charging part and the case) | |
Insulation resistance | DC250V |
(20MΩ or more, between the whole charging part and the case) | |
Operating Ambient Temperature | -20°C~+85°C (no condensation) |
Working environment humidity | 20~95%RH |
Wire specification | Φ2.8x1m |
ZTS93: Gray | |
ZTS93(B): Black | |
Material of operating rod | SUS303 |
Housing Material | Glass fiber reinforced resin (black) |

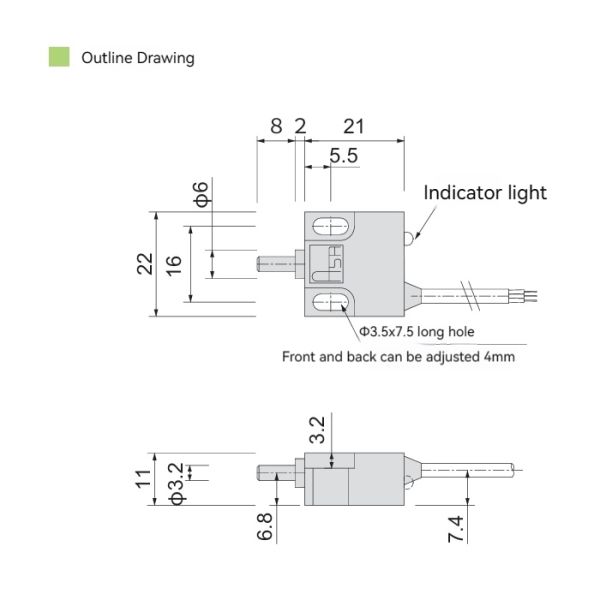

Installation | M3 screw, tightening torque 0.3N-m |
Indicator light | Red color |
Protection class | IP65 |







|
|

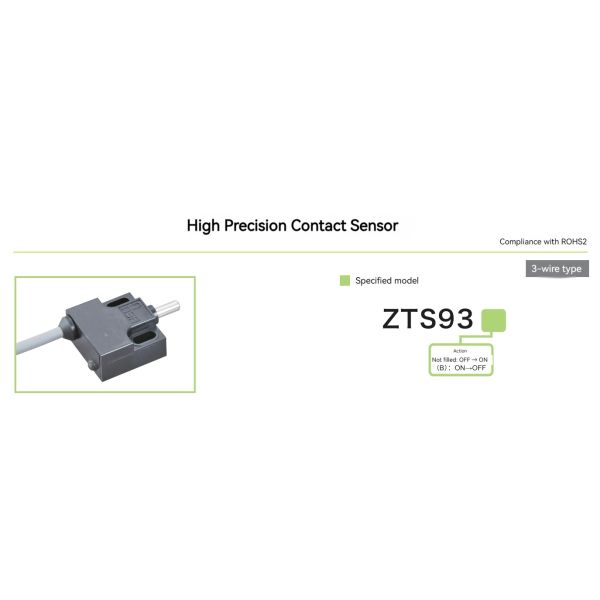

High Precision 0.01mm ZTS93 Sensor IP65 CNC Machine Tool Contact Measuring Instrument Inductive Switch with Red Indicator Light Images |
