Place of Origin : Guangdong, China
Core Components : Housing/Nut/Operating Rod:SUS303
machinery test report : Not Available
Marketing Type : Ordinary Product
video outgoing-inspection : Provided
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine
Price : $14.50-17.50 / piece
warranty : 1 Year
Condition : New
MOQ : 1 piece
Brand Name : OEM/ODM
weight (kg) : 0.5
Supply Voltage | DC5~24V |
Static load resistance | 100kN |
Stroke | 1mm |
Working point position [PT] | 18mm |
Differential [MD] | 0.1mm or less |
Repeat positioning accuracy | ±0.002mm |

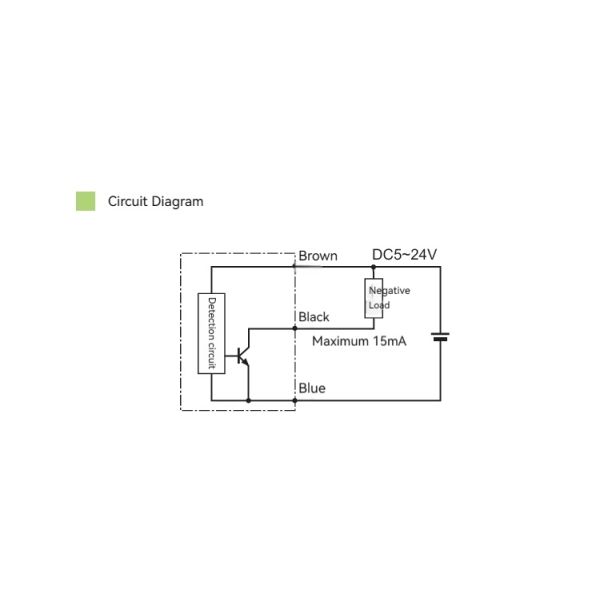

Output method | ZTS30. |
NPN Normally open (ON for proximity) | |
ZTS30(B). | |
ZTS30(B): NPN normally closed (OFF when close) | |
Output current | 15mA MAX |
Current consumption | 12mA MAX |
Operating Frequency | Less than 60 times/minute |
Withstanding Voltage | AC1000V |
(1 minute, between the whole charging part and the case) | |
Insulation resistance | DC250V |
(20MΩ or more, between the whole charging part and the case) | |
Operating Ambient Temperature | -20°C~+85°C (no condensation) |
Working environment humidity | 20~95%RH |
Wire specification | Φ2.8x1m |
ZTS30 / ZTS30-G: Gray color | |
ZTS30(B) / ZTS30(B)-G: Black color | |
Shell Material | SUS303 |
Front Material | SUS303 |
Cable Seal Material | Nitrile rubber |
Protective Cable Material | SUS304 |
Protection class | IP67 |







|
|

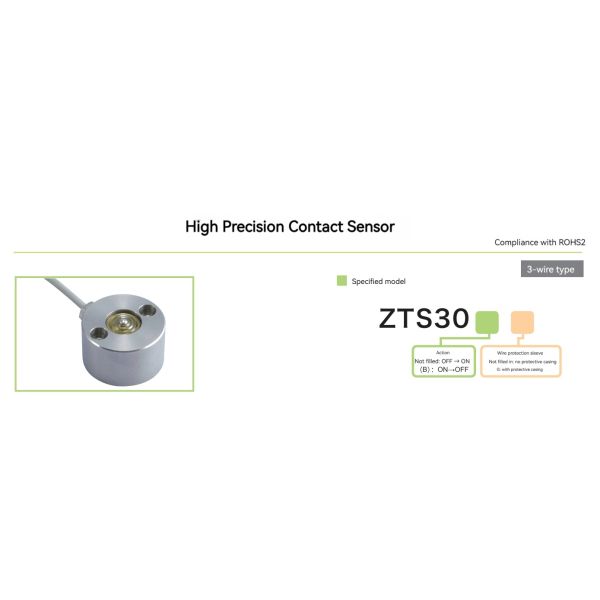

High Precision ZTS30 Limit Proximity Switch CNC Contact Sensor with IP67 Protection 15A 250V Maximum Voltage Images |
