MOQ : 1 piece
warranty : 1 Year
Place of Origin : Guangdong, China
Condition : New
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine
machinery test report : Not Available
Applicable Industries : CNC machining center
video outgoing-inspection : Provided
Price : $12.90-15 / piece
weight (kg) : 0.5
Brand Name : OEM/ODM
Marketing Type : Ordinary Product
Core Components : Housing/Nut/Operating Rod:SUS303
Supply Voltage | DC5~24V |
Stroke | 3.5mm |
Operating force | F: 2N |
W:3N | |
Waterproof | F:Waterproof in front of fixed plate |
W:Waterproof on both sides | |
Work point position [PT] | 1.2mm |
Differential [MD] | 0.1mm or less |
Repeat Positioning Accuracy | ± 0.04mm |

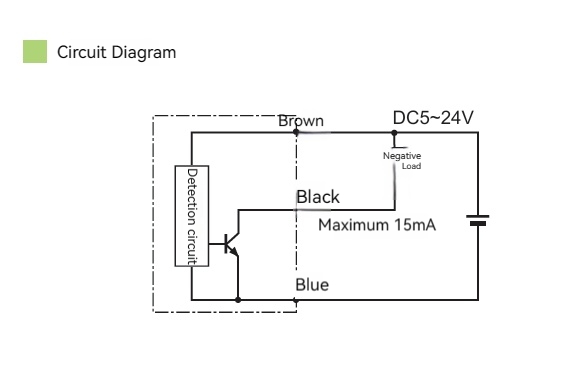

Output Method | ZTSM16. |
NPN Normally open (ON for proximity) | |
ZTSM16(B): NPN normally closed (OFF at proximity) | |
ZTSM16(B): NPN normally closed (OFF at proximity) | |
Output current | 15mA MAX |
Current consumption | 12mA MAX |
Operating Frequency | 60 times/minute or less |
Withstanding Voltage | AC1000V |
(1 minute, between the whole charging part and the case) | |
Insulation resistance | DC250V |
(20MΩ or more, between the whole charging part and the case) | |
Operating Ambient Temperature | -20°C~+85°C (no condensation) |
Working environment humidity | 20~95%RH |
Wire specification | Φ2.8x1m |
ZTSM16: Gray | |
ZTSM16(B): Black | |
Seal cover material | Sealing Plastic |
Housing and Nut Material | SUS303 |
Mounting | M16 Nut, tightening torque 20N-m or less |
Mounting hole processing size | Φ16 +0.5 / 0 |
Protection Grade | IP67 |







|
|

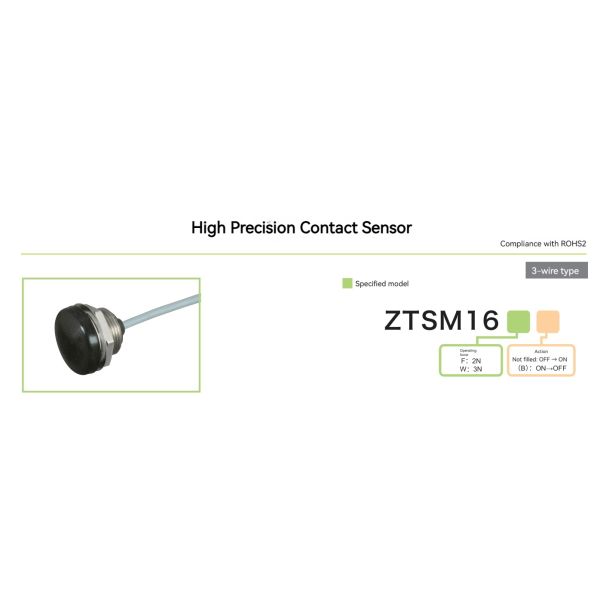

ZTSM16 Sensor Contactless Contact Measurement SUS303 Limit Switch Sensor for CNC Machine Tools Images |
