weight (kg) : 0.5
warranty : 1 Year
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine
Place of Origin : Guangdong, China
Condition : New
Brand Name : OEM/ODM
Applicable Industries : CNC machining center
Price : $11.50-15.50 / piece
Core Components : Housing/Nut/Operating Rod:SUS303
machinery test report : Not Available
MOQ : 1 piece
video outgoing-inspection : Provided
Marketing Type : Ordinary Product
Supply Voltage | DC5~24V | ||
Stroke | 3mm | ||
Operating force | 0.7N | ||
Work point position [PT] | 0.2~0.5mm | ||
Differential [MD] | 0.1mm or less | ||
Repeat positioning accuracy | ± 0.002mm | ||

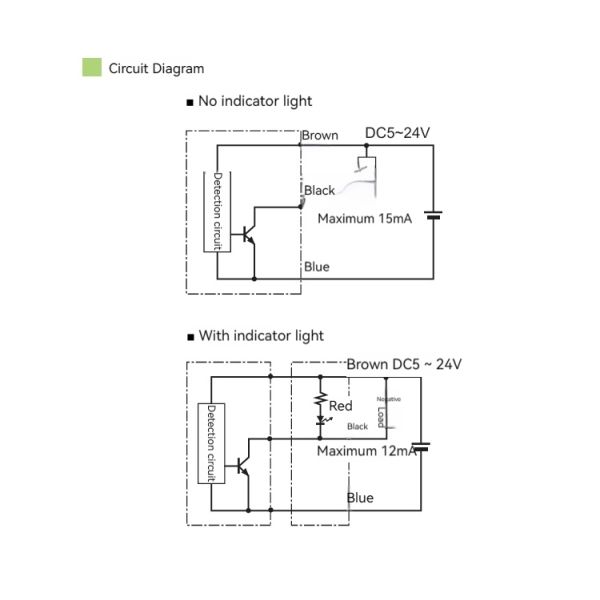

Output method | ZTS8: | ||
NPN Normally open (ON for proximity) | |||
ZTS8(B): | |||
NPN normally closed (OFF at proximity) | |||
Output current | ZTS8 | 15mA MAX | |
ZTS8(B) | |||
ZTS8-LED | 12mA MAX | ||
ZTS8(B)-LED | |||
Current consumption | ZTS8 | 12mA MAX | |
ZTS8(B) | |||
ZTS8-LED | 15mA MAX | ||
ZTS8(B)-LED | |||
Operating Frequency | Below 60 times/min | ||
Withstanding Voltage | AC1000V | ||
(1 minute, between the whole charging part and the shell) | |||
Insulation resistance | DC250V | ||
(20MΩ or more, between the whole charging part and the shell) | |||
Operating Ambient Temperature | -20°C~+85°C (no condensation) | ||
Working environment humidity | 20~95%RH | ||
Wire specification | Φ2.8x1m | ||
ZTSM8: Gray | |||
ZTSM8(B): Black color | |||
Material of operating rod | SUS303 | ||
Housing Material | Cast zinc alloy | ||
Indicator light | ZTS8 | None | |
ZTS8(B) | |||
ZTS8-LED | Approx. 100mm from sensor body | ||
ZTS8(B)-LED | |||
Protection Grade | IP67 | ||







|
|

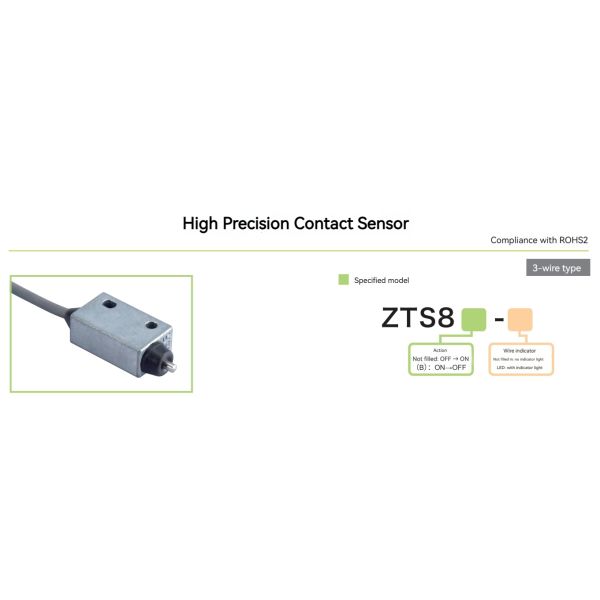

Original Japan CNC Machine Tools ZTS8 Contact Sensor Non-contact Measurement Detector Cast Zinc Alloy Limit Switch Images |
