Place of Origin : Guangdong, China
weight (kg) : 1.2
machinery test report : Not Available
Brand Name : OEM/ODM
video outgoing-inspection : Provided
Core Components : SUS303, Indicator light
Condition : New
Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining, CNC machining center
Price : $109.38-113.75 / piece
MOQ : 1 piece
Showroom Location : None
warranty : 1 Year
Marketing Type : Ordinary Product
Supply Voltage | DC5~24V | ||

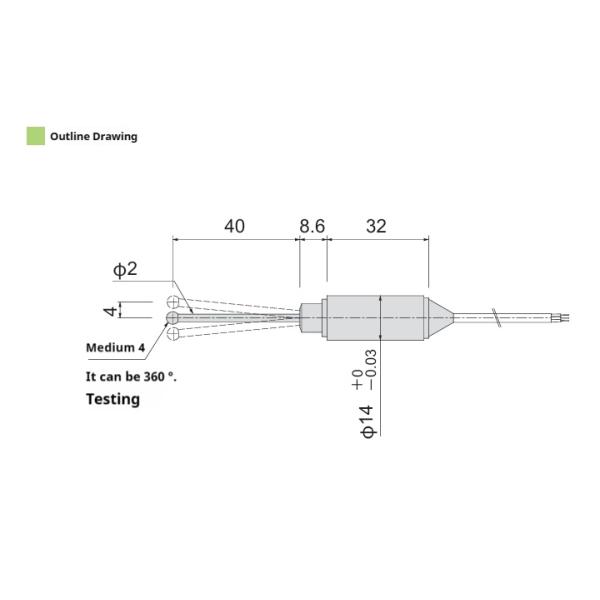

Stroke | 4mm(360°) | ||
Operating force | H:1N | ||
J:0.3N | |||
Work point position [PT] | 1.5±1mm | ||
Differential [MD] | 0.1mm以下 | ||
Repeat positioning accuracy | 0.02mm | ||

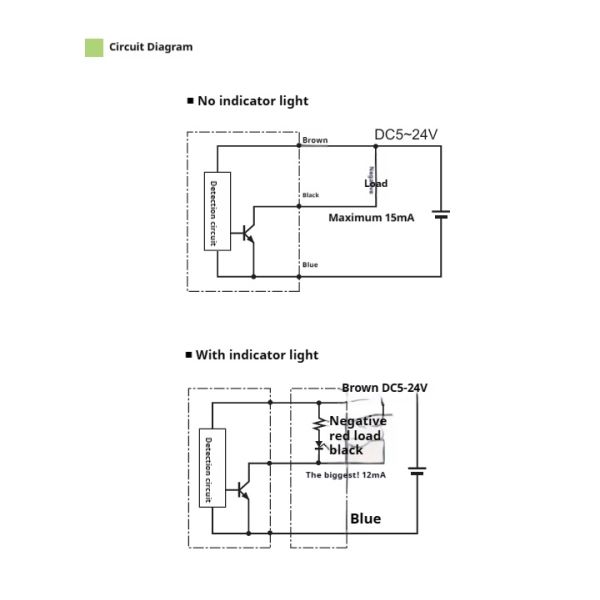

Output method | NPN normally open (ON for proximity) | ||
Output current | ZTSX1 :15mA MAX | ||
ZTSX1-LED:12mA MAX | |||
Current consumption | ZTSX1:12mA MAX | ||
ZTSX1-LED:15mA MAX | |||
Operating Frequency | Less than 20 times/min | ||
Withstanding Voltage | AC1000V | ||
(1 minute, between the whole charging part and the case) | |||
Insulation antibody | DC250V | ||
(20MΩ or more, between the whole charging part and the case) | |||
Operating ambient temperature | -20°C~+85°C (no condensation) | ||
Working environment humidity | 20~95%RH | ||
Wire specification | Φ2.8×1m | ||
Material | SUS303 | ||
Indicator light | ZTSX1 | None | |
ZTSX1-LED | Approx. 100mm from the sensor body | ||
Protection class | IP65 | ||







|
|

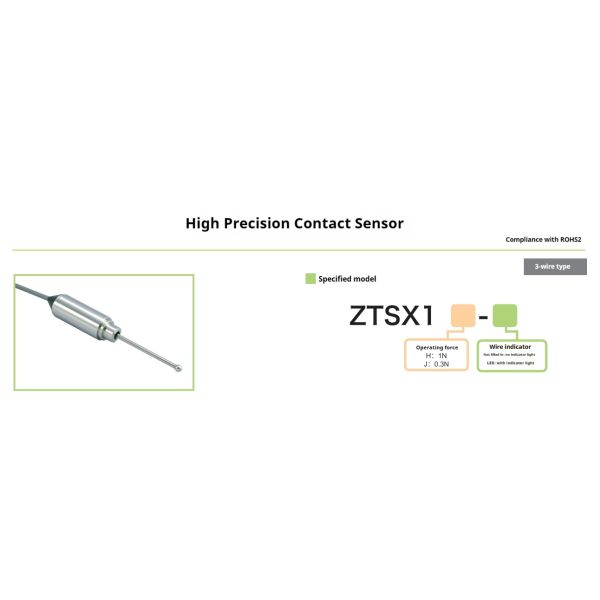

Makinopc Original AC1000V Wired Probe Type Sensor 0.02mm Probing Contactor Measuring Probe for CNC Equipment ZTSX1 Images |
