video outgoing-inspection : Provided
machinery test report : Not Available
Showroom Location : None
weight (kg) : 1.5
MOQ : 1 piece
material : Stainless Steel
style : Solid
Price : $26.62-29.75 / piece
warranty : 1 Year
Applicable Industries : Retail
Marketing Type : Ordinary Product
Core Components : Pulse,Handwheel encoder
Brand Name : Makinopc
Place of Origin : Guangdong, China
Condition : New

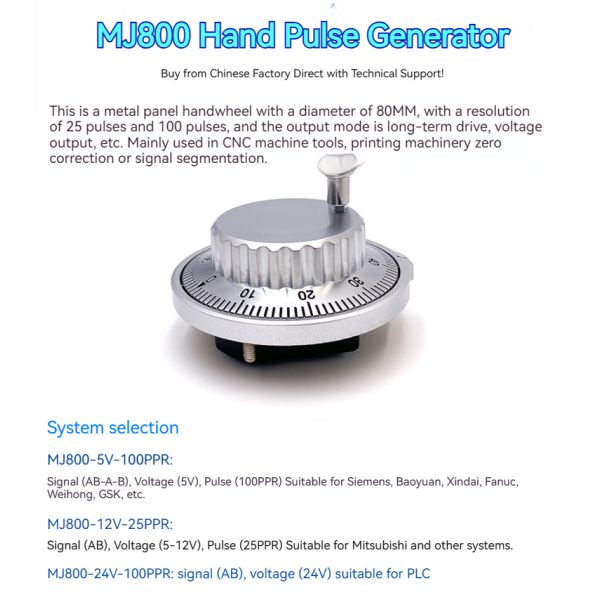

Product Name | Original Ripple Panel Mounted Manual Pulse Generator |
Product Model | RGT800 Series |
Product Specification | RGT800-001-100B-5L(5V, 100PPR, AB, A-B-phase output) |
RGT800-001-25B-12E(12V, 25PPR, A, B-phase output) | |
RGT800-001-100B-24E(24V, 100PPR, A, B-phase output) PLC | |
Voltage | DC 5V-24V |
Number of pulses | 25PPR, 100PPR |

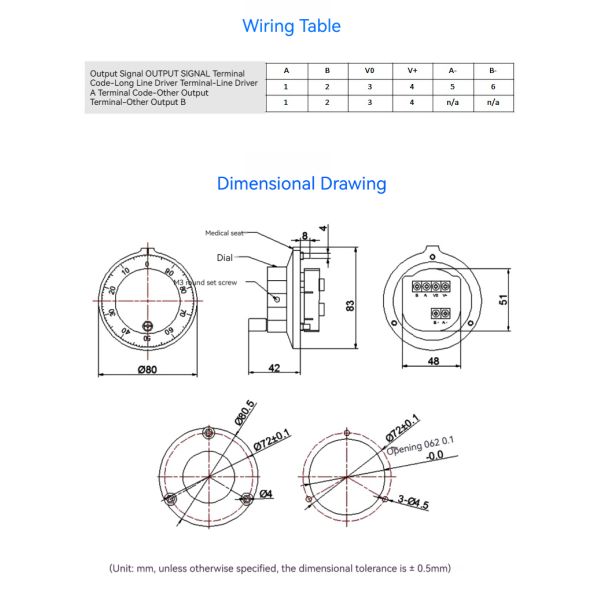

Dimension | Center 80mm |
Product Structure | Hand Crank/Handheld |
Terminal block | 4-terminal/6-terminal |
Maximum mechanical speed | 600r/min |
Normal mechanical speed | <200r/min |
Mechanical life | 3*100000rpm(below 200r/min) |
Operating temperature | -10°C to 60°C |
Storage temperature | -20°C to 70°C |
Protection class | IP54 |
Net weight | 249.7g |
Gross weight | 286g |
Available Systems | Fanuc, Italy, Heinak, Guangdian, open, Kainty, Mitsubishi, Fagor, France, Heidenhain, Baoyuan, Xindai, Kainty, Shikai, Huaxing, Huazhong, Dasen, Aerospace, Guangtai and other well-known CNC systems. |







|
|

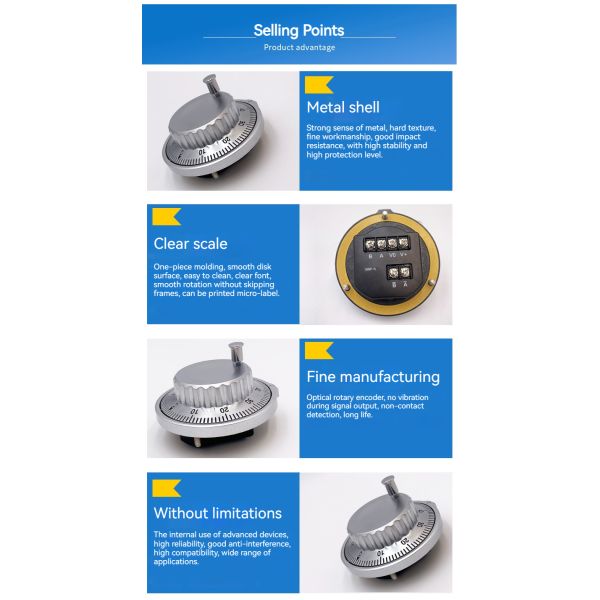

Durable Metal Panel Handwheel Manual Pulse Generator MPG Hand Pulsing 80mm 100ppr 24v Pendant Encoder for CNC Machining Tools Images |
