Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine
Repeat positioning accuracy : ±0.005mm
ON hold : Below 1.1mm
Output current : 15mA MAX
Place of Origin : Guangdong, China
weight (kg) : 0.5
Work point position [PT] : 0.3~0.6mm
Wire specification : 3 core wires, 0.9 *1m
warranty : 1 Year
Stroke : 1.2mm
Operating force : 0.9N
Brand Name : Makinopc
Supply Voltage : DC5~24V
Working Frequency : Less than 60 times/minute
Consumption current : 12mA MAX
MOQ : 1 piece
Price : $12-15 / piece
Supply Voltage | DC5~24V |
Stroke | 1.2mm |
Operating force | 0.9N |
Work point position [PT] | 0.3~0.6mm |
Differential [MD] | 0.1mm or less |
Static load resistance | 50N |
Repeat Positioning Accuracy | ±0.005mm |
Output method | ZTSR8: |
NPN normally open (ON for proximity) | |
ZTSR8(B): | |
NPN normally closed (OFF at proximity) | |
Output current | 15mA MAX |
Current consumption | 12mA MAX |
Operating Frequency | 60 times/minute or less |
Withstanding Voltage | AC1000V |
(1 minute, between the whole charging part and the case) | |
Insulation resistance | DC250V |
(20MΩ or more, between the whole charging part and the case) | |
Operating Ambient Temperature | -20°C~+85°C (no condensation) |
Working environment humidity | 20~95%RH |
Wire specification | 3 core wires, Φ0.9×1m |
Material | Housing/Operating lever: SUS303 |
Protection Grade | IP65 |







|
|

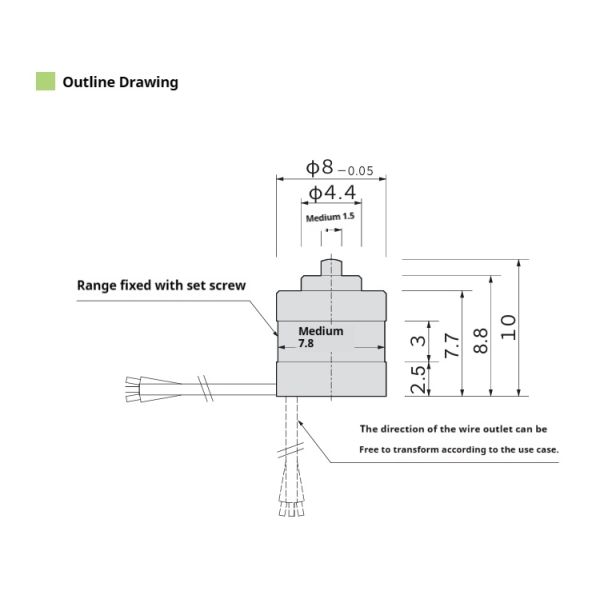

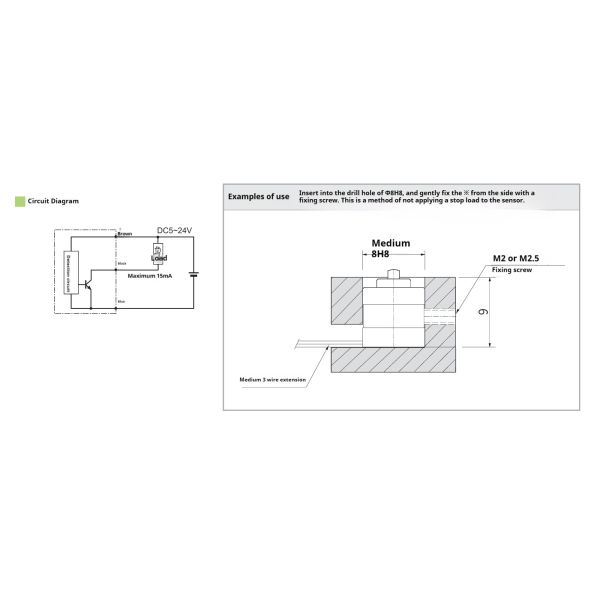

IP65 protection Class DC24V High Precision Contact Sensor ZTSR8 with Static Load 50N for CNC Machine Tool Automation Equipment Images |
