weight (kg) : 0.5
Brand Name : Makinopc
Place of Origin : Guangdong, China
Price : $35-39 / piece
warranty : 1 Year
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine
MOQ : 1 piece
Model | Monomer Specification | Dedicated power supply specifications | |
ZMB3()A24 | ZMB3()P24 | ||
Rated Voltage | DC24V±10% | ||
Maximum current | 0.1A | 0.3A | |
Instantaneous maximum power | 7.2W | ||
Power consumption | 2.4W or less | 1W or less | |
Static friction torque | 20N.cm | 36N.cm | |
Suction time | 40msec or less | ||
Release time | 10msec or less | ||
Suction voltage | 20V or less | ||
Release voltage | 3V or more | 10V or more | |
Moment of inertia | 3.2g.cm2 | ||
Insulation resistance | DC500V ≥ 10MΩ | ||
Insulation withstand voltage | AC1000V - 1min | ||
Insulation class | Class F | ||
Weight | 110g | ||
Rotor inner diameter | φ6, φ8 (H7) | ||








|
|

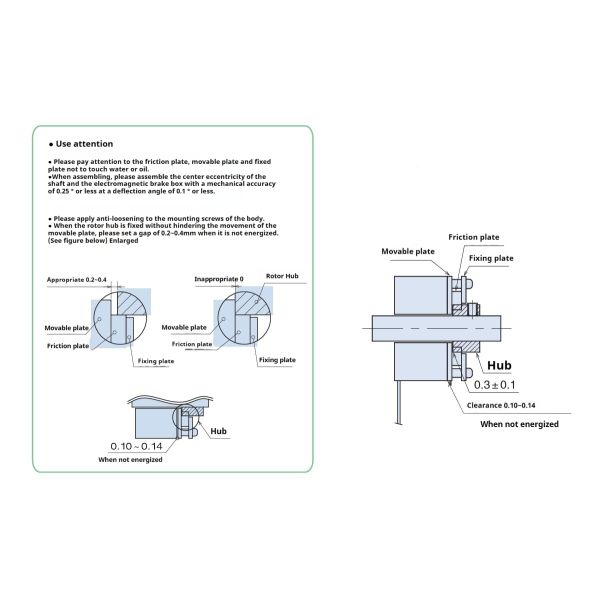

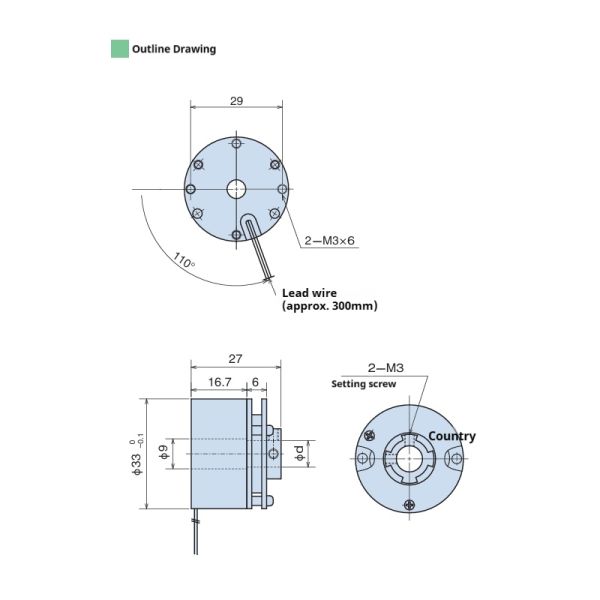

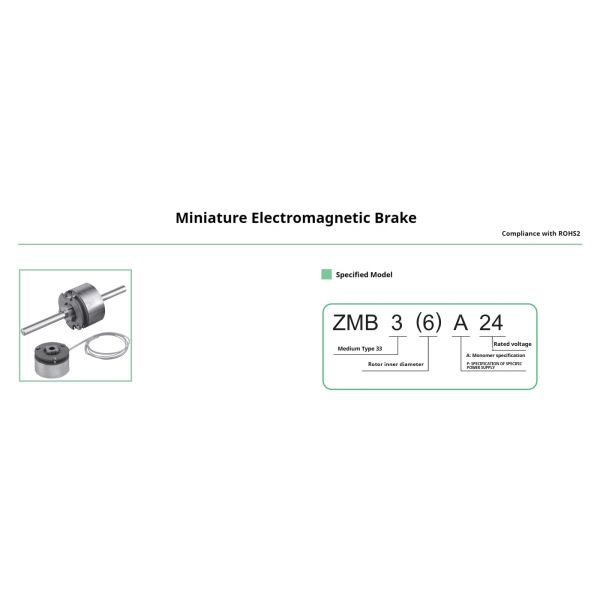

RoHS2 Compliant CNC Machine Wear Resistant Miniature Electromagnetic Brake From Chinese Factory ZMB3 Images |
