video outgoing-inspection : Provided
Machine Type : Milling Machine, lathe machine, Grinding Machine, Drilling Machine
machinery test report : Not Available
warranty : 1 Year
Brand Name : Makinopc
MOQ : 1 piece
Place of Origin : Guangdong, China
Price : $159-169 / piece
weight (kg) : 1
Product Name | Wired Probe |
Product Model | MT25Led-Plus |
Repeat Positioning Accuracy | ≤0.001mm (Probe: 50mm, Speed: 50~200mm/min) |
Signal transmission method | Cable |
Stylus sensing direction | X, ±Y, +Z |
Departure protection stroke | XY plane 12.5°, 2-way 6.35mm |
Measuring speed | <5m/min |
Trigger life | ≥10 million times |
Body material | Stainless steel 316 |
Cable specification | Standard 5 meters Oil-resistant 4-core Φ5mm |
Protection class | IP68(double sealing) |
Power supply | 12~30VDC |
Operating Temperature | 10℃ to 40℃ |
Storage Temperature | -20℃ to 70℃ |
Indicator Light | With LED indicator |
Net Weight | 327g |
Gross Weight | 610g |
Warranty | 12 months |










|
|

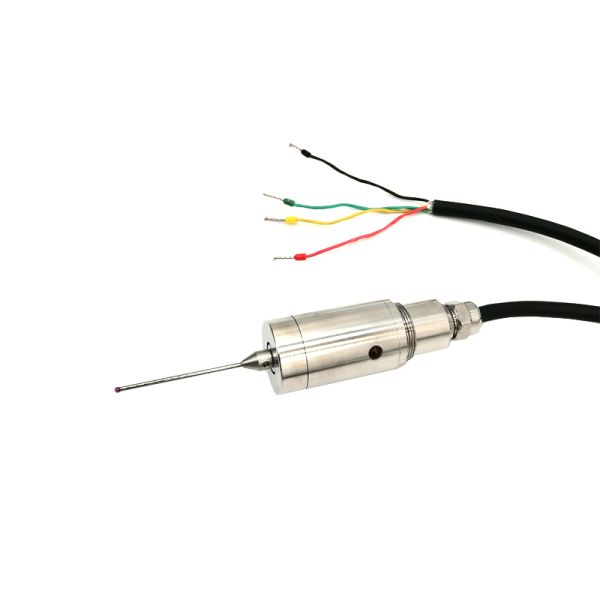

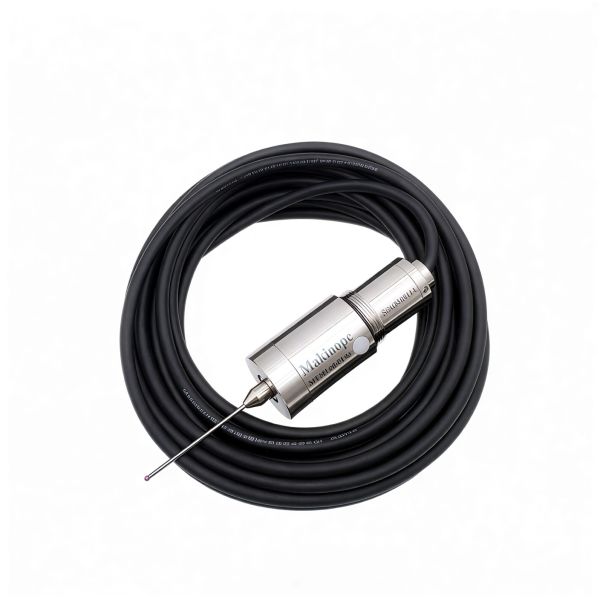

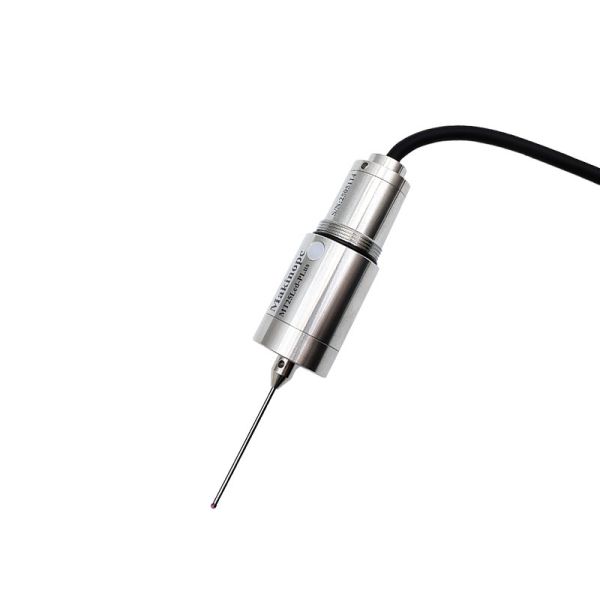

MT25Led-Plus Standard 5M 4 Cores Wired Probe XYZ Axis Sensor with LED Light Indicator for Engraving Machine CNC Router Images |
