MNC Series Non Contact Laser Tool Setter 0.03/50/80/160mm Diameter CNC Tools Z Axis Zero Height Setting Measuring Instrument

Name: MNC Series Non Contact Laser Tool Setter 0035080160mm Diameter CNC Tools Z Axis Zero Height Setting Measuring Instrument
Brand: Makinopc
Price: 3 USD

Buy cheap MNC Series Non Contact Laser Tool Setter 0.03/50/80/160mm Diameter CNC Tools Z Axis Zero Height Setting Measuring Instrument product

Signal transmission method : 5m 8-core shielded twisted pair cable, oil resistant

machinery test report : Not Available

Maximum Repeatability : 0.1 μm (depending on system, spacing and installation)

General sub-composite accuracy : 1 um

Core Components : Aviation Aluminum, Cable

weight (kg) : 1.5

Brand Name : Makinopc

Laser beam collimation : Adjustable mounting plate for adjustment

Supply voltage : 50mA @ 24VDC

Lifetime : >1 million switching cycles

video outgoing-inspection : Provided

warranty : 1 Year

Applicable Industries : Building Material Shops, Manufacturing Plant, Machinery Repair Shops

Showroom Location : China

Power supply protection : Recoverable protection, replaceable fuses

Laser type : Power <1mw, wavelength 680nm

Condition : New

Output Signal : Maximum current 50mA, maximum voltage 50V

Place of Origin : Guangdong, China

MOQ : 1 piece

Price : $3,985-4,338 / piece

Products name : Laser Tool Setter

Marketing Type : Ordinary Product

Contact Now

Products Description

Brief Introduction

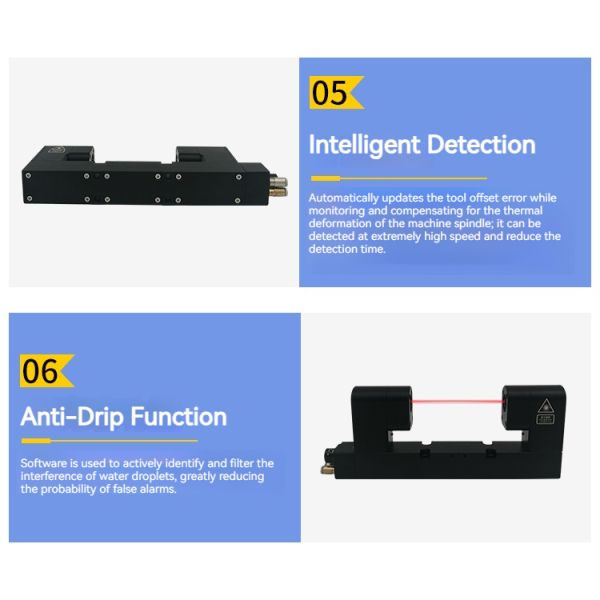

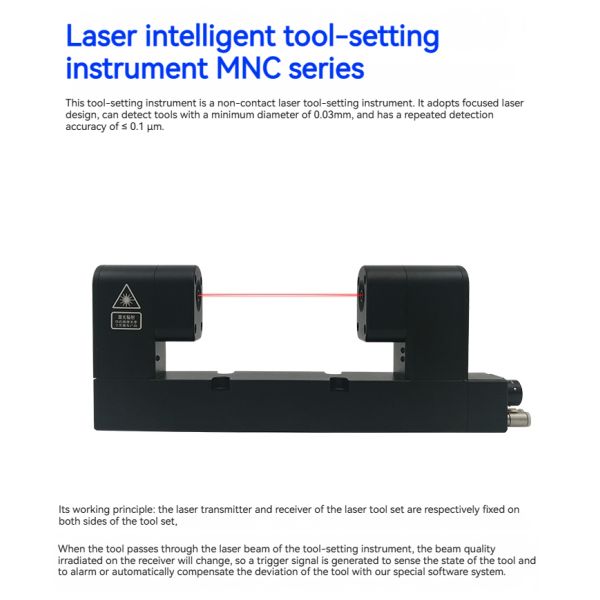

MNC series of non-contact laser tool setting instrument, using focused laser design, the smallest can detect the diameter of 0.03mm tool, at the same time with the machine tool setting, tool detection and automatic compensation function. Tool length, diameter and oscillation can be detected, including damage to the teeth of multi-tooth tools; automatically update the tool offset error, while also monitoring and compensating for thermal deformation of the machine tool spindle; and be able to inspect at very high speeds, reducing inspection time.

Product Paramenters

Product Name	Laser Tool Setter	Laser Tool Setter	Laser Tool Setter
Product Model	MNC56	MNC86	MNC168
Centralized measurement to the diameter range	0.03-50MM	0.03-80MM	0.03-160MM
Tangential Measurement Diameter Range	0.03-60MM	0.03-110MM	0.03-320MM

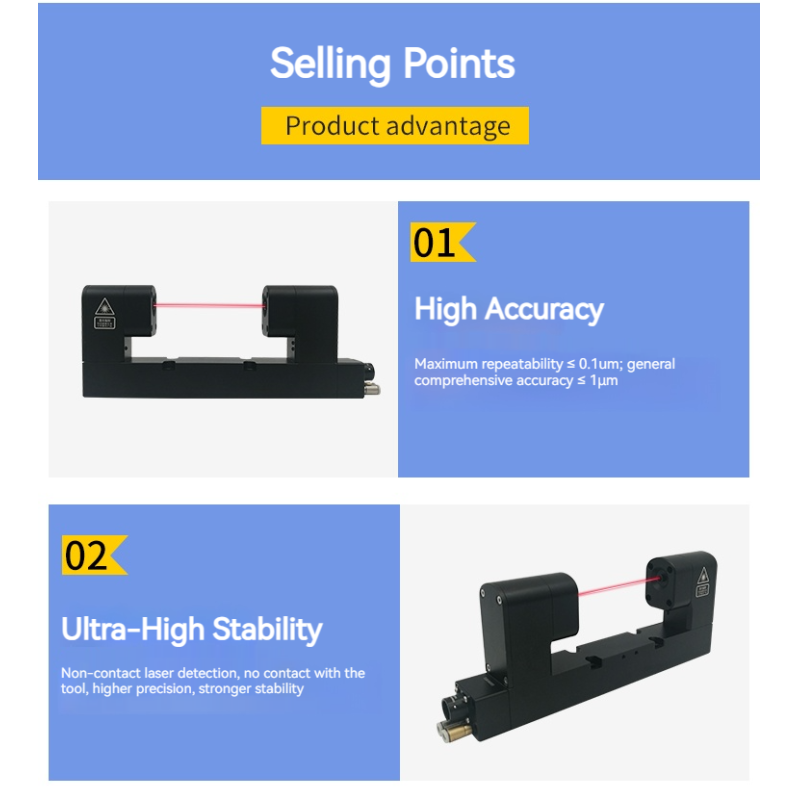

Maximum Repeatability	0.1 μm (depending on system, spacing and installation)
General sub-composite accuracy	1 um
Laser type	Power <1mw, wavelength 680nm
Laser beam collimation	Adjustable mounting plate for adjustment
Supply voltage	50mA @ 24VDC
Power supply protection	Recoverable protection, replaceable fuses
Output Signal	Maximum current 50mA, maximum voltage 50V
Signal transmission method	5m 8-core shielded twisted pair cable, oil resistant
Gas source	4mm air hose
Lifetime	>1 million switching cycles

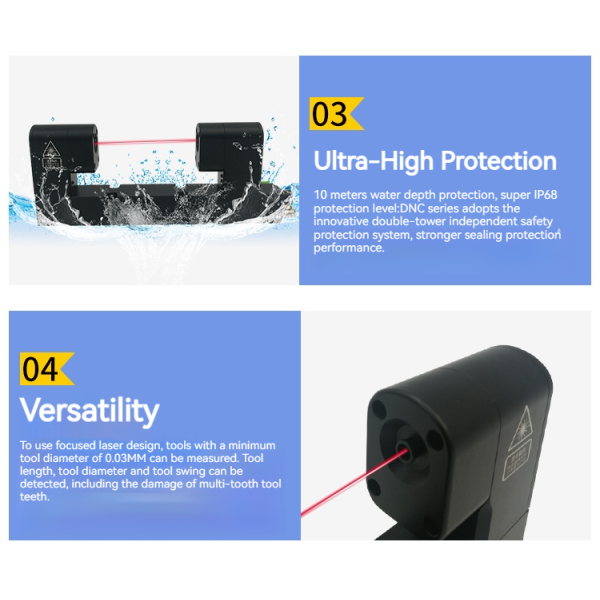

Sealing grade	IP68 (with or without compressed air)
Body Material	Aviation aluminum
Storage Temperature	-10°C to 70°C
Operating Temperature	-5°C to 50°C
Main Applications	For use on a variety of vertical and horizontal machining centers, a variety of gantry machining centers, and multi-purpose machines for high-speed, non-contact tool breakage detection of solid tools.

Details Images

MNC Series Non Contact Laser Tool Setter 0.03/50/80/160mm Diameter CNC Tools Z Axis Zero Height Setting Measuring Instrument

Product packaging

We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.

Company Profile

Founded in 2014, Shenzhen Muye Precision Control Electromechanical Co., Ltd. is a service-oriented enterprise integrating R&D, design and sales of CNC numerical control machine tools accessories, and the products currently put on the market mainly include CNC numerical control machine tools with automatic tool setting instrument, electronic handwheels, hand-cranked pulse generators, on-line measuring probes, band switches, spindle encoders, system panels, electronic handwheel accessories supporting programs, and the realization of automatic tool setting installation and debugging solutions. Commissioning solutions, etc. Our factory is located in Songgang, Bao'an District, Shenzhen City, covers an area of more than 3,000 square meters, with 20 professional and technical personnel, 15 sets of testing instruments, two production lines. The production capacity reaches 100,000 units per month. We have exclusive patent design and own brand, and have won many quality certificates. The products are widely used in Fanuc, , Mitsubishi, Fagor, Heidenhain, Bao Yuan, New Generation, HANUC, Guangzhou CNC GSK, open CNC, Kain Emperor KND, Nuoxin, Delta, a variety of PLCs, CNC CNC machining centers, engraving machines, engraving and milling machines, drilling and tapping machines, EDM, milling machines, lathes and so on. The company in line with the "customer first, integrity first" principle with a number of enterprises to establish long-term cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.

Our Advantages

1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.

FAQ

Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2: How to choose the appropriate model or specifications? A:Based on your requirement and application, our professional engineers will offer you a detailed suggestions regarding models and specifications. Q3:Can I become your dealer? A:Of course, we need partners to create value together. Q4: Do you accept customized service? A:Yes, we can provide not only standard products, but also customized service and solutions. Q5: Do you have any MOQ (minimum order quality)limit? A: For standard product, usually 1pcs/item. For the OEM order, need to communicate product solutions. Q6.How long is the product shelf life? A: Our product watranty period is one year. Q7: How to proceed an order? A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a paying link.Online trading is safe and convenient.
