Original Germany KU KA Robot Calibrator Positioning Zero Calibration SEMD/MEMD 00-228-936

Name: Original Germany KU KA Robot Calibrator Positioning Zero Calibration SEMDMEMD 00228936
Brand: KU KA
Price: 2 USD

Buy cheap Original Germany KU KA Robot Calibrator Positioning Zero Calibration SEMD/MEMD 00-228-936 product

video outgoing-inspection : Provided

Core Components : Cable, Sensor, SEMD/MEMD

Brand Name : KU KA

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Retail

weight (kg) : 5

Price : $2,076.30-2,256.90 / set

Showroom Location : None

Place of Origin : Germany

machinery test report : Not Available

MOQ : 1 set

Condition : New

warranty : 1.5 year

Marketing Type : Ordinary Product

Contact Now

Products Description

Key Features

Located in Shenzhen China, Makinopc is the leading manufacturer specialized in offering CNC machine accessories like CNC wired/wireless probe, tool setter, electronic hand wheel, hand pulse generator, band switch, Spindle Encoder, system panels, electronic hand wheel accessories matching scheme and realize the automatic installation solution tool setting gauge, etc. Products are widely used in FANUC, , MITSUBISHI, FAGOR,HEIDENHAIN, LNC, SYNTEC, HANUC, GSK, KND, LOKSHUN, DELTA, all kinds of PLC and CNC CNC machining centers, engraving machine, engraving and milling machine, drilling and tapping machine, edm machine, milling machine, lathe, etc.

Product Paramenters

Product Name	SEMD/MEMD zero point calibrator for KUKA robots
Brand	MAKINOPC-KUKA
Product Model	SEMD/MEMD Zero Point Calibrator (Order No. 00-228-936)
Place of Origin	Germany

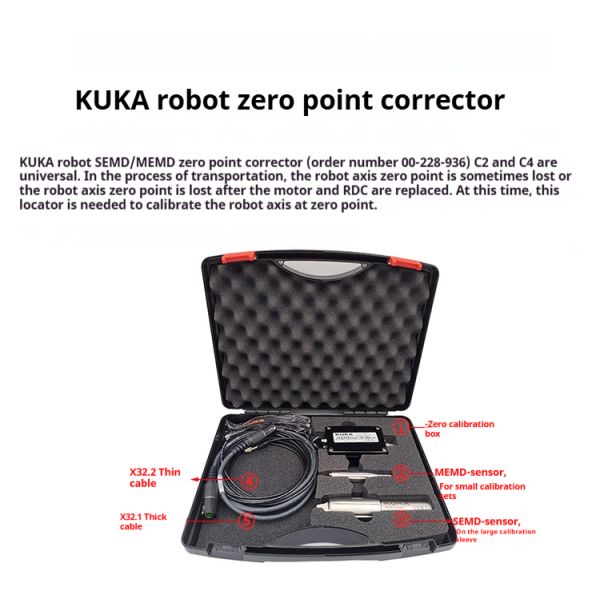

Composition	Cable "X32.1", cable "X32.2", zero calibration box, and "SEMD" and "MEMD "

Details Images

Original Germany KU KA Robot Calibrator Positioning Zero Calibration SEMD/MEMD 00-228-936

EMD connection instructions

1. Find the connector marked with "X32.1" of the zero calibration box, and then find the cable with the corresponding "X32.1" marking, then align the plug of the cable with the connector of the zero calibration box and connect it. 2. Find the connector marked with "X32.2" of the zero calibration box, and then find the cable marked with "X32.2", and then align the plug of the cable with the connector of the zero calibration box and connect it. 3. Check the cable connector of the KUKA robot base, find the connector labeled "X32", and remove the dust cover from the connector. 4. Align the plug of the other end of "X32.1" with the "X32" connector of the industrial robot base and connect it. 5. Move the axis where the robot zero point is lost to the pre-zeroed position. 6. On the robot body, locate the pre-zero calibration position of "A1" and remove the dust cover of the pre-zero calibration position with the help of "MEMD" or "SEMD". 7. Screw the "MEMD" or "SEMD" onto the measuring cylinder. 8. Finally, connect the measurement cable to the "MEMD" or "SEMD".

Calibration steps

(1) Select T1 working mode and move the robot to the pre-zero calibration position. (2) In the main menu, select Input Operation>Zero Calibration>EMD>Calibration with Load>First Zero Calibration. A window opens automatically. All axes to be zero calibrated are displayed. The axis with the lowest number is selected. (3) Remove the protective cover of the measuring cylinder from the axis selected in the window. (The EMD turned over can be used as a screwdriver.) Screw the EMD onto the measuring cylinder. (4) Then connect the measuring leads to the EMD and to connector X32 of the robot junction box. (5) Click on Zero Calibration. (6) Press the confirmation switch to the center stop and hold it, then press and hold the start button. (7)Finally, after executing startup, the calibration is complete and the robot fault message will disappear.

Product packaging

We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
