Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine
warranty : 1 Year
Price : $59.50-62.50 / piece
weight (kg) : 0.5
Place of Origin : Guangdong, China
Brand Name : Makinopc
MOQ : 1 piece
Supply Voltage | DC5~24V |
Magnetic Sensitivity | 65mV/mT: Center value |
Magnetic detection direction | Upward |
Output Voltage | 0.3→4.7V (-40~ +40mT): Center value |
Center Voltage | 2.5V±0.15V |
Output Current | ±1.2mA MAX |
Current Consumption | 12mA |
Response time | 5μ sec (100kHz) |
Magnetic Sensitivity Temperature Coefficient | 0±0.04%/°C |
Center Voltage Temperature Coefficient | 0±5mV/°C |
Operating Ambient Temperature | -20°C to +85°C (no condensation) |
Operating Ambient Humidity | 20~95%RH |

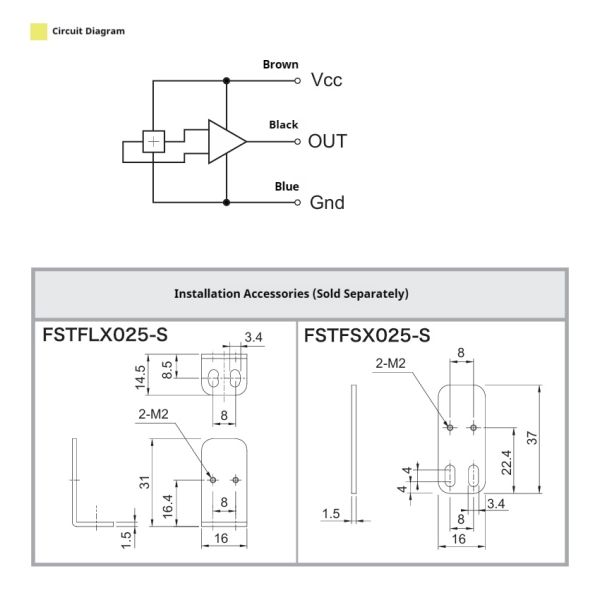

Wire Specification | 3 core wires, φ0.9×0.3m |
Shell material | Glass fiber reinforced resin: Orange |
Installation | M2 screw, tightening torque 0.15N-m |
Protection grade | IP65 |








|
|

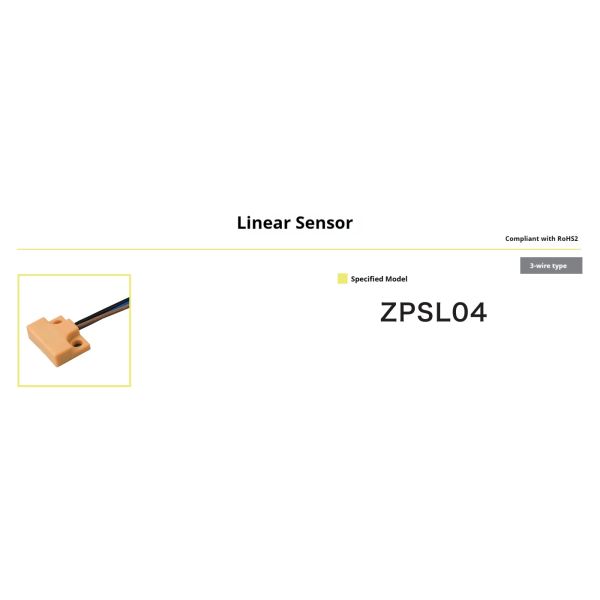

DC5V 3-wire Linear Sensor Magnet Monitoring Detection Magnetic Field Tube Facility Monitoring Various Applications Images |
