12mA Low-drift Current Measurements Accurate Magnetic Proximity Sensors Inductive Switches for Control System CNC Machine

Name: 12mA Lowdrift Current Measurements Accurate Magnetic Proximity Sensors Inductive Switches for Control System CNC Machine
Brand: Makinopc
Price: 6.30 USD

Buy cheap 12mA Low-drift Current Measurements Accurate Magnetic Proximity Sensors Inductive Switches for Control System CNC Machine product

warranty : 1 Year

Response time : 5μ sec

Protection class : IP67

Indicator light : Red color

Brand Name : Makinopc

Detection Poles : ZPSM024 -S: S pole; ZPSM024 -N: N pole

Magnetic sensitivity : 2.5~3.5mT

Current consumption : 15mA MAX

Shell material : Glass fiber reinforced resin: black

weight (kg) : 0.5

Magnetic detection direction : Forward

MOQ : 1 piece

Supply Voltage : DC5~24V

Price : $6.30-7.90 / piece

Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine

Place of Origin : Guangdong, China

Output current : 12mA MAX

Contact Now

Products Description

Magnetic proximity sensors use for non-contact position detection beyond the normal limits of inductive sensors. In conjunction with a separate “damping” magnet, magnetic sensors offer very long sensing ranges from a small package size and can detect magnets through walls of non-ferrous metal, stainless steel, aluminum, plastic or wood.

Key Features

●Magnetic proximity sensors are sensors that operate ON and OFF according to changes in the strength of the magnetic field. ●The operating principle is the Hall principle, which detects the magnetic field according to its polarity, and the standard detection pole is the S pole. ●Because of the short response time (5μsec or less), it can also be used for tachometers and speedometers. ●Compared with general proximity sensors, it is characterized by high sensitivity, large detection distance, and small size. ●Can perform both home position and over-travel detection of servo mechanisms with only one dual sensor. ●Strong resistance to electromagnetic interference and high reliability.

Product Paramenters

Supply Voltage	DC5～24V

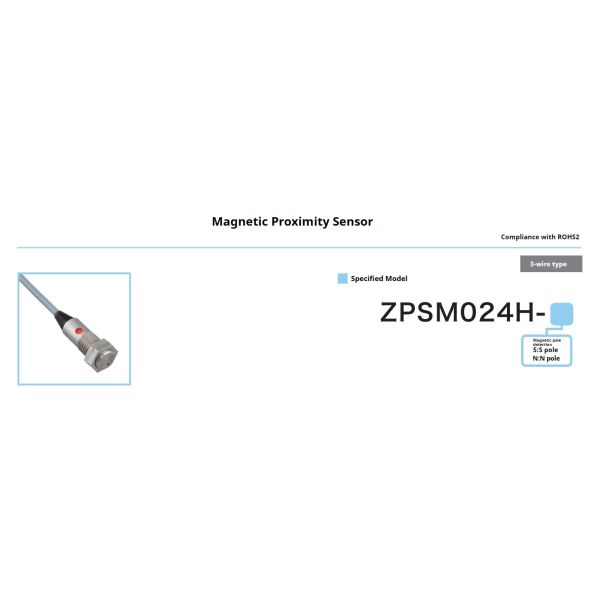

Detection Poles	ZPSM024H-S: S pole
Detection Poles		ZPSM024H-N: N pole
Magnetic sensitivity	ZPSM024H-S：0.8±0.2mT
Magnetic sensitivity		ZPSM024H-N: 0.9±0.2mT
Magnetic detection direction	Forward

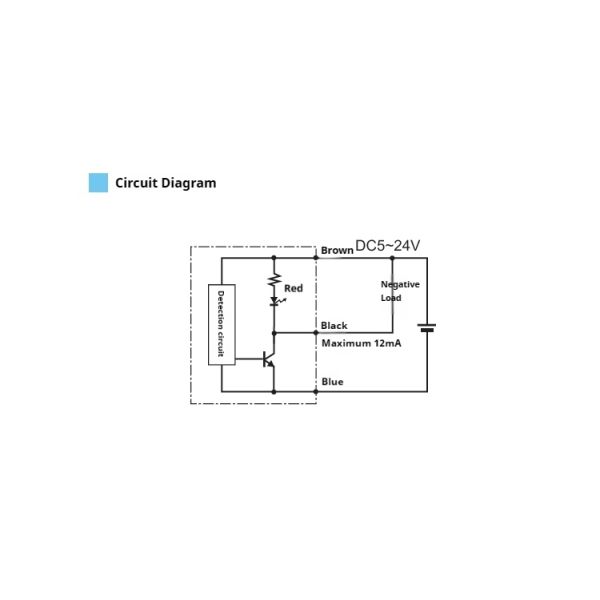

Output mode	NPN normally open (ON when close)
Output current	12mA MAX
Current consumption	15mA MAX
Response time	5μ sec
Withstanding Voltage	AC1000V
Withstanding Voltage		(1 minute, between the whole charging part and the case)
Insulation resistance	DC250V
Insulation resistance		(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature	-20℃～+85℃ (no condensation)
Humidity	20～95%RH
Wire Specification	φ2.8×1m
		S pole: Gray
		N pole: black
Shell material	SUS303

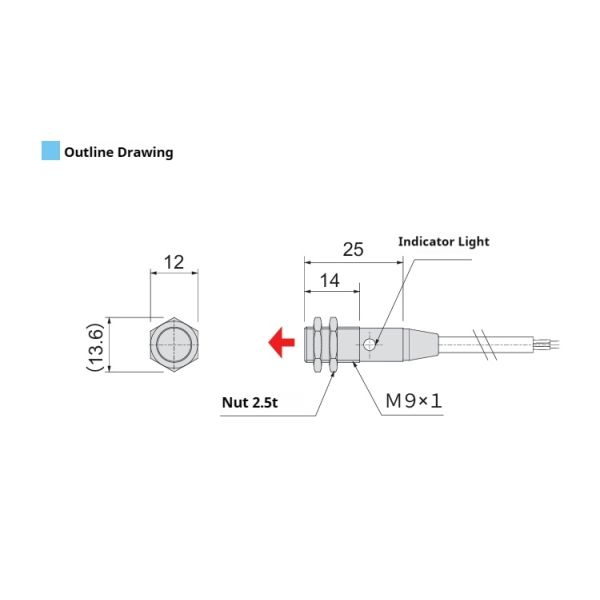

Installation	M9 nut Tightening torque 5N-m
Mounting aperture processing size	φ9 +0.5 / 0
Indicator light	Red color
Protection Class	IP67

※Output conversion and current increase can be realized by wire attachment.

Details Images

12mA Low-drift Current Measurements Accurate Magnetic Proximity Sensors Inductive Switches for Control System CNC Machine

※Output conversion and current increase can be realized by wire attachment.
