warranty : 1 Year
Measuring Speed : 50-500rev/min
weight (kg) : 1.5
Power Supply : 14250 Li-Ion Battery (3.6V)
Machine Type : Milling Machine, lathe machine, turning machine, Cnc machining center
Place of Origin : Guangdong, China
Product Name : 3D Edge Finder
machinery test report : Not available
Price : $139-149 / piece
video outgoing-inspection : Provided
Model Number : MP41-10
Trigger Direction : ±X , ±Y, -Z
Brand Name : Makinopc
Stylus Length : 54.5mm
Stylus : Default M4*L50*5.0 Ruby Ceramic Stylus
Stylus OD : 41mm
Maximum Overtravel : XY+12.5°, Z6mm
MOQ : 1 piece
Repeat Positioning Accuracy : 0.001mm
Product Name | 3D Edge Finder |
Model Number | MP41-10 |
Repeat Positioning Accuracy | 0.001mm |
Trigger Direction | ±X , ±Y, -Z |
Power Supply | 14250 Li-Ion Battery (3.6V) |
Stylus | Default M4*L50*5.0 Ruby Ceramic Stylus |
Stylus OD | 41mm |
Stylus Length | 54.5mm |
Measuring Speed | 50-500rev/min |
Maximum Overtravel | XY+12.5°, Z6mm |
Trigger Force | 1N |
Trigger Mode | Contact |
Trigger Life | >10 million cycles |
Protection Level | IP68:EN60529 |
Weight (without stylus) | Includes Batteries 329.1g |
No Battery included 309.4g | |
Application | CNC machine tools, mold industry, cell phone industry, aerospace, electronics, industrial machinery, railroad trains, etc. |










|
|

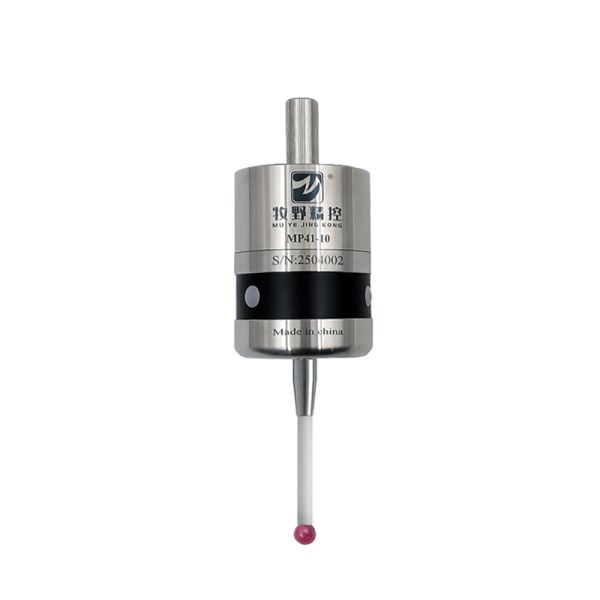

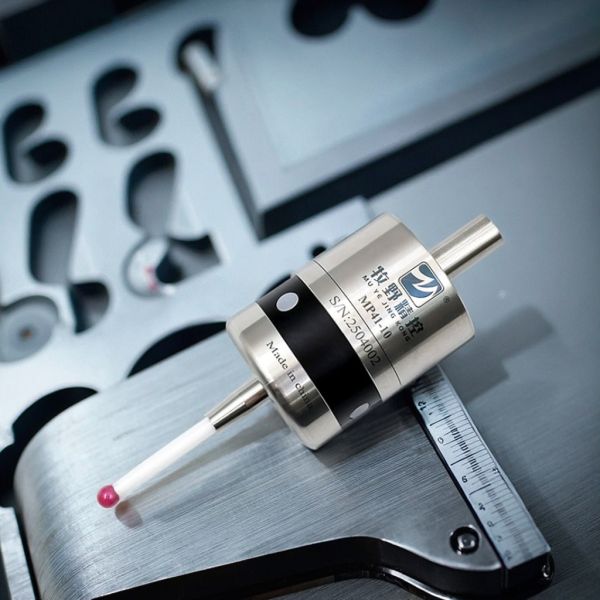

Makinopc MP41-10 Manual 3D Edge Finder Concentricity Adjustment Probe for CNC Machining Tools Workpiece Measurement Images |
