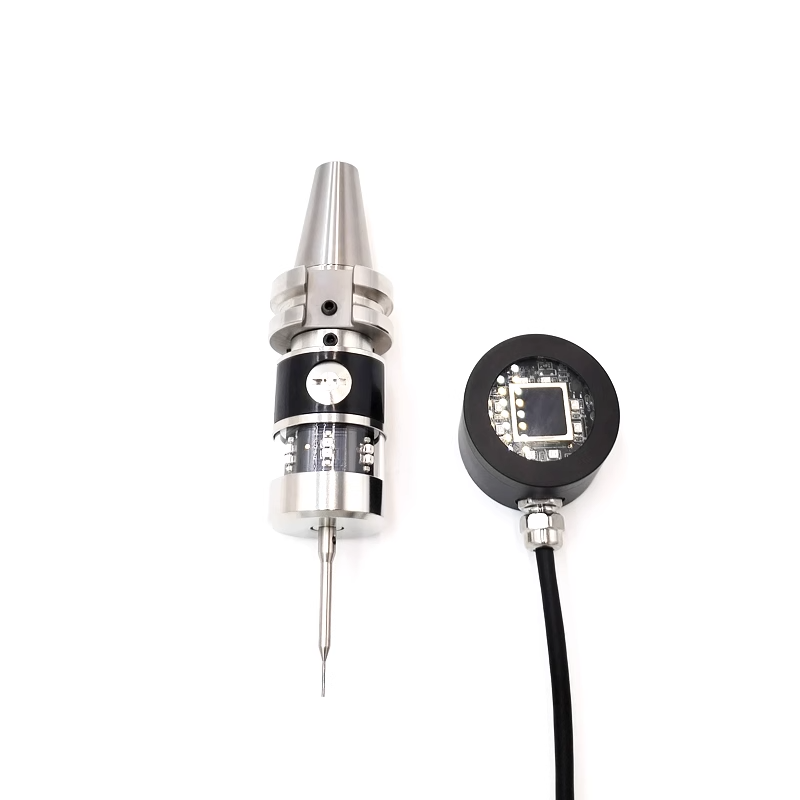

Optical MDP40-1 3D Touch Probe for CNC Machine with Infrared Transmission Suitable for Milling Lathe Workpiece Custom Parts

Name: Optical MDP401 3D Touch Probe for CNC Machine with Infrared Transmission Suitable for Milling Lathe Workpiece Custom Parts
Brand: Makinopc
Price: 1 USD

Buy cheap Optical MDP40-1 3D Touch Probe for CNC Machine with Infrared Transmission Suitable for Milling Lathe Workpiece Custom Parts product

Body material : Stainless Steel

Price : $1,045-1,085 / piece

Accuracy : 0.001mm

MOQ : 1 piece

Probe diameter : 41mm

Power supply : 14250 lithium battery (3.6V)

Application : CNC machine tools, manufacturing lines

Product Name : Wireless Probe MDP40-1

Signal transmission mode : Infrared

Precision : ±X, ±Y, -Z

Place of Origin : Guangdong, China

machinery test report : Not Available

video outgoing-inspection : Provided

weight (kg) : 2

warranty : 1 Year

Brand Name : Makinopc

Stylus : Flat top tungsten steel measuring needle

Machine Type : Milling Machine, turning machine, shaping machine, planning machine, Drilling Machine, Boring Machine, Grinding Machine

Probe length : 50mm

Contact Now

Products Description

Brief Introduction

The MDP40-1 wireless probe uses optical signals, radio signal transmission, and can be installed on most CNC lathes, machining centers, CNC grinders, and other CNC machine tools. In the machining cycle without human intervention, directly on the tool or workpiece size and position measurement, and automatically correct the workpiece or tool offset, so that the same machine tool can be machined to a higher precision parts. Substantially reduce the parts scrap rate and rework rate, 3C high-gloss chamfering products more uniform and symmetrical. Designed to improve machining accuracy and efficiency, our automated systems deliver significant cost savings and quality
improvements.

Product Paramenters

Product name	Wireless probe for CNC machine tool
Product model	MDP40-1
Repeatability accuracy	0.001mm
Signal transmission mode	Unlimited electricity / infrared
Trigger direction	±X, ±Y, -Z
power supply	14250 lithium battery (3.6V)
Body material	stainless steel
Probe outer diameter	41mm
Probe length	50mm
Measure speed	<500mm/min
Maximum pass	XY±12.5°, Z 6.35mm
Trigger force	Adjustable
Trigger mode	Contact
Working temperature	-10-60°C
Ingress protection	IP68:EN60529
Net weight	1011g
Gross weight	1685.8g
Application industry	CNC machine tools, mold industry, mobile phone industry, aerospace and aviation electronics field, industrial machinery, rail trains, etc.

Details Images

Optical MDP40-1 3D Touch Probe for CNC Machine with Infrared Transmission Suitable for Milling Lathe Workpiece Custom Parts

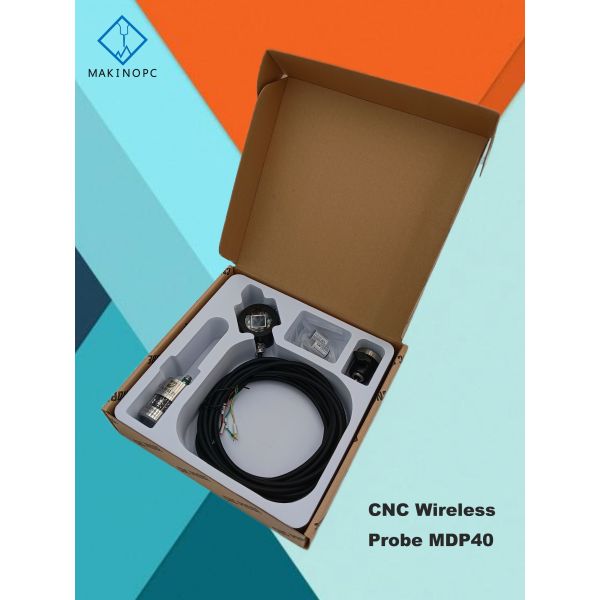

Product packaging

We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.

Company Profile

Founded in 2014, Shenzhen Muye Precision Control Electromechanical Co., Ltd. is a service-oriented enterprise integrating R&D, design and sales of CNC numerical control machine tools accessories, and the products currently put on the market mainly include CNC numerical control machine tools with automatic tool setting instrument, electronic handwheels, hand-cranked pulse generators, on-line measuring probes, band switches, spindle encoders, system panels, electronic handwheel accessories supporting programs, and the realization of automatic tool setting installation and debugging solutions. Commissioning solutions, etc. Our factory is located in Songgang, Bao'an District, Shenzhen City, covers an area of more than 3,000 square meters, with 20 professional and technical personnel, 15 sets of testing instruments, two production lines. The production capacity reaches 100,000 units per month. We have exclusive patent design and own brand, and have won many quality certificates. The products are widely used in Fanuc, , Mitsubishi, Fagor, Heidenhain, Bao Yuan, New Generation, HANUC, Guangzhou CNC GSK, open CNC, Kain Emperor KND, Nuoxin, Delta, a variety of PLCs, CNC CNC machining centers, engraving machines, engraving and milling machines, drilling and tapping machines, EDM, milling machines, lathes and so on. The company in line with the "customer first, integrity first" principle with a number of enterprises to establish long-term cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.

Our Advantages

1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.
