Makinopc MDP40-1 Compact 3D CNC Machine XYZ Touch Probe Tool Measurement Optical Probes for Workpiece Set-up and Inspection

Name: Makinopc MDP401 Compact 3D CNC Machine XYZ Touch Probe Tool Measurement Optical Probes for Workpiece Setup and Inspection
Brand: Makinopc
Price: 380 USD

Buy cheap Makinopc MDP40-1 Compact 3D CNC Machine XYZ Touch Probe Tool Measurement Optical Probes for Workpiece Set-up and Inspection product

Stylus outer diameter : 41mm

weight (kg) : 3.5

video outgoing-inspection : Provided

machinery test report : Not Available

Stylus : Default flat-top tungsten stylus (thread M4)

Signal transmission mode : Infrared

Body material : Stainless steel 316

Stylus length : 54.5mm

Machine Type : Milling Machine, lathe machine, Grinding Machine, Drilling Machine

Brand Name : Makinopc

Power supply : 14250 Li-ion battery (3.6V)

Price : $380-949 / piece

Repeat Positioning Accuracy : 0.001mm

warranty : 1 Year

Product Model : MDP40-1

Trigger direction : ±X, ±Y, -Z

MOQ : 1 piece

Place of Origin : Guangdong, China

Product Name : Optical Signal Transmission Wireless Probe

Contact Now

Products Description

Makinopc's Patent Design MDP40-1 High Precision Wireless Inspection Machine Probe with Optical Signal Transmission. Ideal for RENISHAW Probe Alternative and Replacement, Compatible Receiver for Most Systems

Brief Introduction

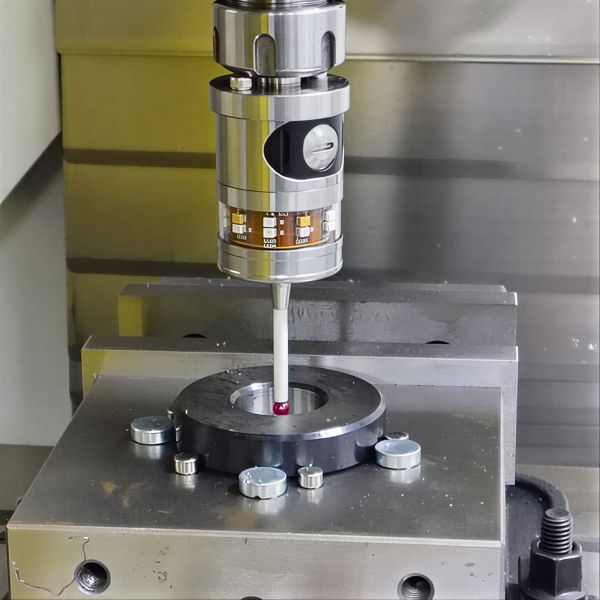

MDP40-1 is a compact 3-dimensional triggering workpiece inspection probe produced by Shenzhen Makinopc Precision Control Electromechanical Co., Ltd. It adopts optical signal transmission, and is mainly used in the on-machine inspection of 2D plane and 3D surface on CNC milling machines, and in the field of batch processing of parts on lathes and beds; it is also used in the workpiece setting and inspection on small and medium-sized CNC machining centers, and it compensates for the tool loss to ensure the accuracy of parts by automatically compensating for tool loss. The accuracy of the machine can greatly reduce the scrap rate and rework rate of the parts.

Product Paramenters

Product Name	Wireless Probe
Product Model	MDP40-1
Repeat Positioning Accuracy	0.001mm
Signal transmission mode	Infrared
Trigger direction	±X, ±Y, -Z
Power supply	14250 Li-ion battery (3.6V)
Body material	Stainless steel 316
Stylus	Default flat-top tungsten stylus (thread M4)
Stylus outer diameter	41mm
Stylus length	54.5mm
Measuring speed	<5m/min
Maximum overtravel	XY 12.5°, 26mm
Trigger force	Adjustable
Trigger mode	Contact
Trigger life	>10 million times
Working Temperature	5°C to 55°C
Protection class	IP68
Transmission distance	5m
Standby time	700 days
Industry	CNC machine tools, mold industry, cell phone industry, aerospace, lathe, machining center, electronic field, industrial machinery,
Accessories	1 x MDP40-1 probe, 1 x receiver, 1 x batteries, 1 x optional BT30/BT40/BT50, 1 x D6*L50mm ceramic ruby, optional stylus tungsten stylus, 1 x user manual, 1 x package box

Optional Purchase Combination Sets

◉ MDP40-1 Probe + Wireless Receiver + M4*D6*L50mm Stylus +Tool Holder BT30
◉ MDP40-1 Probe + Wireless Receiver + M4*D6*L50mm Stylus + Tool Holder BT40
◉ MDP40-1 Probe + Wireless Receiver + M4*D6*L50mm Stylus + Tool Holder BT50

Enhance the efficiency of your CNC machining centres and lathes with our innovative range of automated machine tool probes for workpiece set-up and inspection.

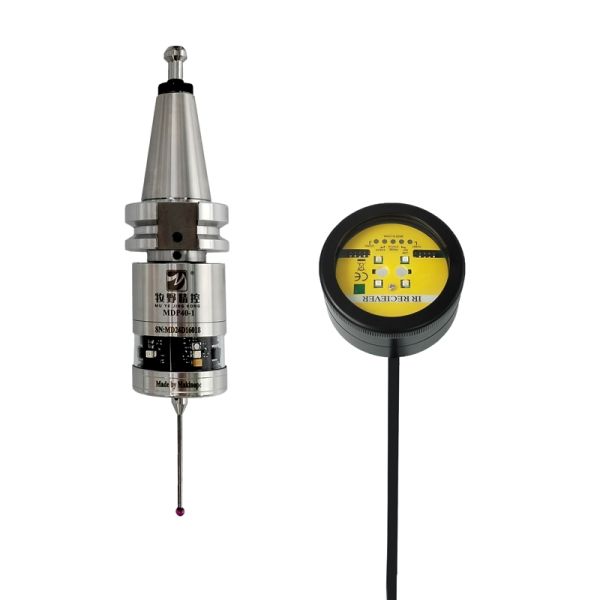

Tips: The MDP40-1 probe and receiver are interchangeable with Renishaw's OMP40-2.

Note:

● Default tungsten ruby stylus, ceramic stylus is available in multiple specifications.
● Customization branding services available, minimum order quantity starts from 10 pieces.

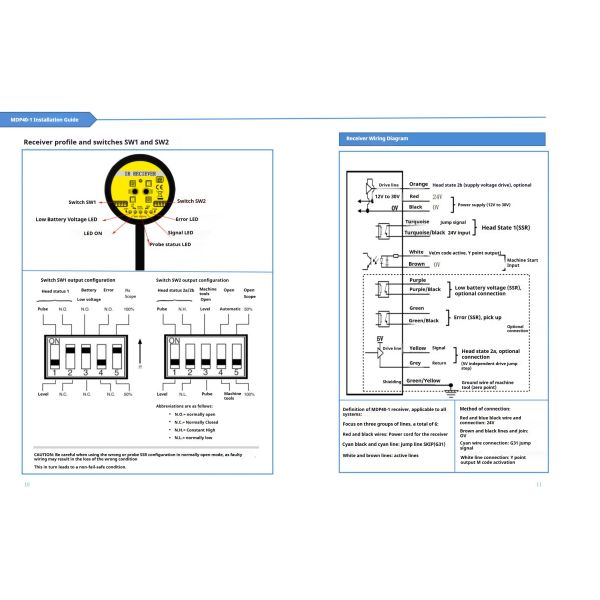

● English user manuals and macro program templates provided for reference.

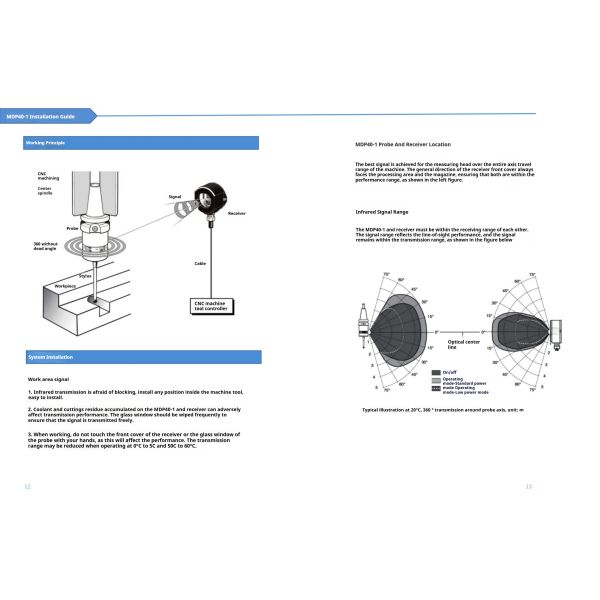

● Please install the device according to the installation manual.

Details Images

Makinopc MDP40-1 Compact 3D CNC Machine XYZ Touch Probe Tool Measurement Optical Probes for Workpiece Set-up and Inspection

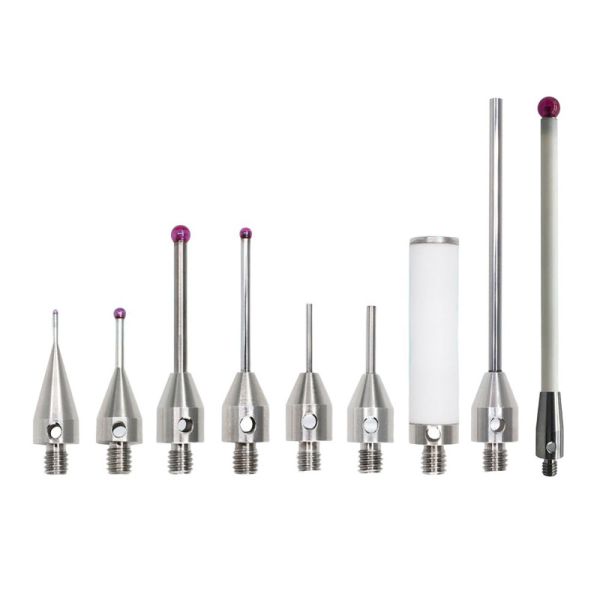

A variety of probe stylus are available

This stylus is a complete replacement for the Renishaw stylus, a ceramic stem, ruby ball stylus with additional crash protection for probes as the stem breaks on impact. The stylus is suitable for most probing applications and can also be used as a crash guard in machine tool applications.

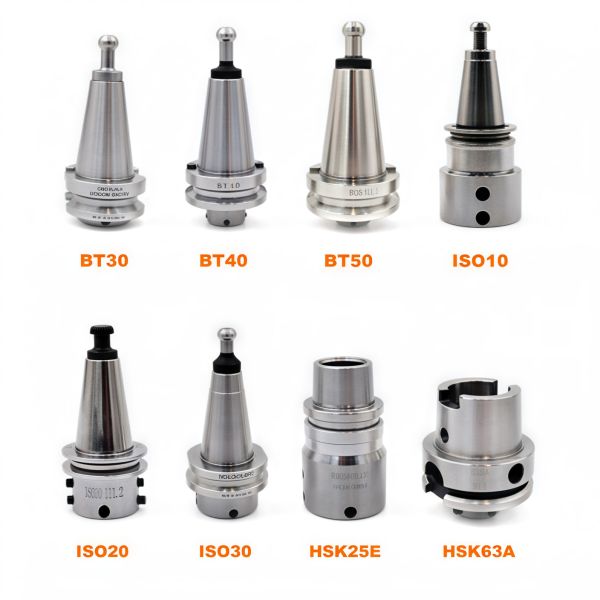

A variety of tool holder models are available

CNC tool holders are the interface between the machine spindle and the cutting tool. We offers a wide variety of shanks common to the market, including standard versions of , BT(JIS B6339), and CAT(ASME B5.50) steep tapers as well as HSK (ISO12164) hollow shank tapers.

Product packaging

We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.

Company Profile

Shenzhen Muye Precision Control Electromechanical Co., Ltd., established in 2014, is a service-oriented enterprise specializing in the R&D, design, and sales of CNC machine tool accessories. Our current product portfolio primarily includes: CNC machine tool probes, automatic tool setters, electronic handwheels, manual pulse generators, measuring styli, spindle encoders, band switches, sensors, and installation/commissioning solutions for automatic tool changers. Our factory is located in Songgang Town, Bao'an District, Shenzhen, covering an area exceeding 3,000 square meters. We employ 20 professional technicians, operate 15 testing instruments, and maintain two production lines, achieving a monthly production capacity of 100,000 units. Our products feature exclusive patented designs and proprietary brands, and have obtained multiple international quality certifications including CE, FCC, and RoHS. Our products are widely compatible with PLC control systems including Fanuc, , Mitsubishi, Fagor, Heidenhain, Baoyuan, New Generation, Hanac, GSK CNC (Guangzhou), Open Source CNC, KND, Norson, Delta, and more. They serve CNC machining centers, engraving machines, engraving/milling machines, drilling/reaming machines, EDM machines, milling machines, lathes, and other equipment. Guided by the business philosophy of “Customer First, Integrity-Based,” the company has established long-term partnerships with numerous enterprises. We warmly welcome professionals worldwide to visit and discuss business opportunities.

Our Advantages

1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.

FAQ

Q1. Can I have a sample order? A: Yes, we welcome sample orders for testing and quality inspection. Q2: How to choose the appropriate model or specifications? A: Based on your requirements and application scenarios, our professional engineers will provide detailed recommendations regarding model selection and specifications. Q3:Can I become your dealer? A: Of course, we need partners to create value together. Q4: Do you accept customized service? A: Yes, we not only offer standard products but also provide customized services and solutions. Q5: Do you have any MOQ (minimum order quality)limit? A: Standard products are typically supplied individually. OEM orders require discussion of product solutions. Q6.How long is the product shelf life? A: Our products come with a one-year warranty.

Q7: How to proceed an order? A: Once the buyer confirms the product and price are correct and is ready to purchase, please provide us with your shipping address, contact phone number, and occasionally an email address. We will then draft the order and attach an payment link. Online transactions are secure and convenient.
