Marketing Type : Ordinary Product
Brand Name : OEM/ODM
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine
Price : $16.90-19.90 / piece
Core Components : Housing/Nut/Operating Rod:SUS303
machinery test report : Not Available
Showroom Location : None
MOQ : 1 piece
weight (kg) : 0.5
Applicable Industries : CNC machining center
warranty : 1 Year
Condition : New
Place of Origin : Guangdong, China
video outgoing-inspection : Provided
Supply Voltage | DC5~24V | ||
Stroke | 1.2mm | ||
Operating force | 0.3N | ||
Work point position [PT] | 0.2~0.5mm | ||
Differential [MD] | 0.1mm or less | ||
Repeat positioning accuracy | ± 0.002mm | ||

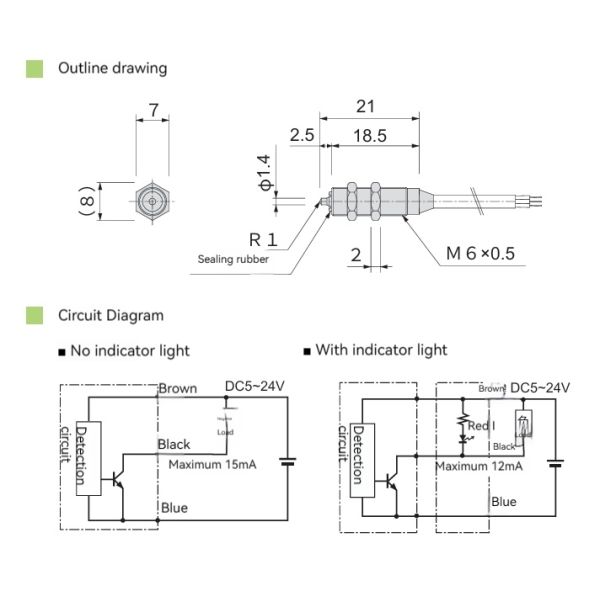

Output method | ZTSM6. | ||
ZTSM6: NPN Normally open (ON for proximity) | |||
ZTSM6(B): NPN normally closed (OFF at proximity) | |||
ZTSM6(B): NPN normally closed (OFF at proximity) | |||
Output current | ZTSM6 | 15mA MAX | |
ZTSM6(B) | |||
ZTSM6-LED | 12mA MAX | ||
ZTSM6(B)-LED | |||
Current consumption | ZTSM6 | 12mA MAX | |
ZTSM6(B) | |||
ZTSM6-LED | 15mA MAX | ||
ZTSM6(B)-LED | |||
Operating Frequency | Below 60 times/min | ||
Withstanding Voltage | AC1000V | ||
(1 minute, between the whole charging part and the shell) | |||
Insulation resistance | DC250V | ||
(20MQ or more, between the whole charging part and the shell) | |||
Operating Ambient Temperature | -20°C~+85°C (no condensation) | ||
Working environment humidity | 20~95%RH | ||
Wire specification | Φ2.8x1m | ||
ZTSM6:Gray | |||
ZTSM6(B):Black color | |||
Material | Housing/Nut/Operating Rod:SUS303 | ||

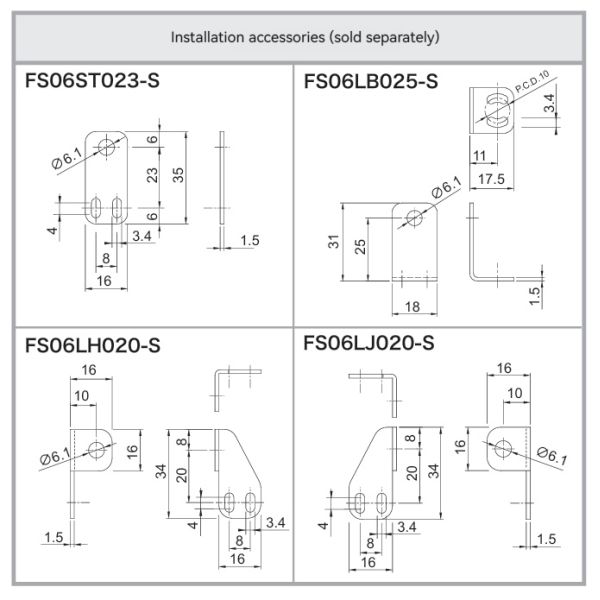

Installation | M6 nut, tightening torque 2N-m or less | ||
Mounting hole processing size | Φ6+0.5 / 0 | ||
Indicator light | ZTSM6 | No | |
ZTSM6(B) | |||
ZTSM6-LED | Approx. 100mm from sensor body | ||
ZTSM6(B)-LED | |||
Protection Class | IP67 | ||







|
|

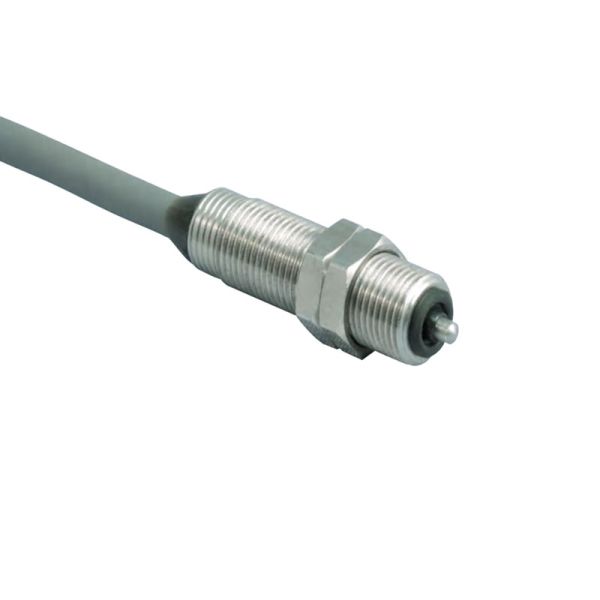

Japan Imported ZTSM6 CNC Machine Tool Contact Transducer Sensor Contactless Probe Travel Limit Switch Images |
