IP67 Protective ZTSM10P Contact Sensor CNC Machine Tools 3mm Stroke Limit Switch CNC Lathe NPN Normally Open/closed

Name: IP67 Protective ZTSM10P Contact Sensor CNC Machine Tools 3mm Stroke Limit Switch CNC Lathe NPN Normally Openclosed
Brand: OEM/ODM
Price: 23 USD

Buy cheap IP67 Protective ZTSM10P Contact Sensor CNC Machine Tools 3mm Stroke Limit Switch CNC Lathe NPN Normally Open/closed product

machinery test report : Not Available

Place of Origin : Guangdong, China

warranty : 1 Year

Core Components : Housing/Nut/Operating Rod:SUS303

video outgoing-inspection : Provided

Condition : New

Applicable Industries : CNC machining center

MOQ : 1 piece

Brand Name : OEM/ODM

Price : $23-29 / piece

Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine

weight (kg) : 0.5

Contact Now

Products Description

Key Features

ZTSM11P Sensor in CNC machines serves multiple purposes. Their main function is to provide real-time feedback to the machine's control system, allowing it to monitor and adjust various parameters during the machining process. Let's explore some of the essential sensors used in CNC machines.

Product Paramenters

Supply Voltage	DC5~24V
Stroke	3mm
Operating force	0.7N
Work point position [PT]	0.2~0.5mm
Differential [MD]	0.1mm or less
Repeat positioning accuracy	± 0.001mm

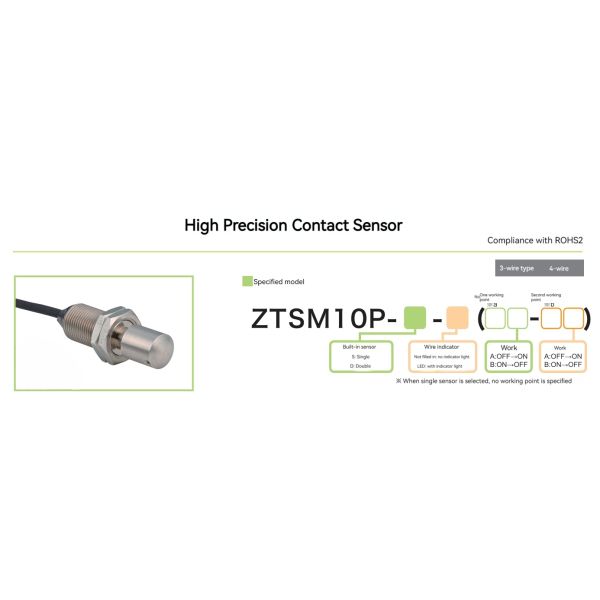

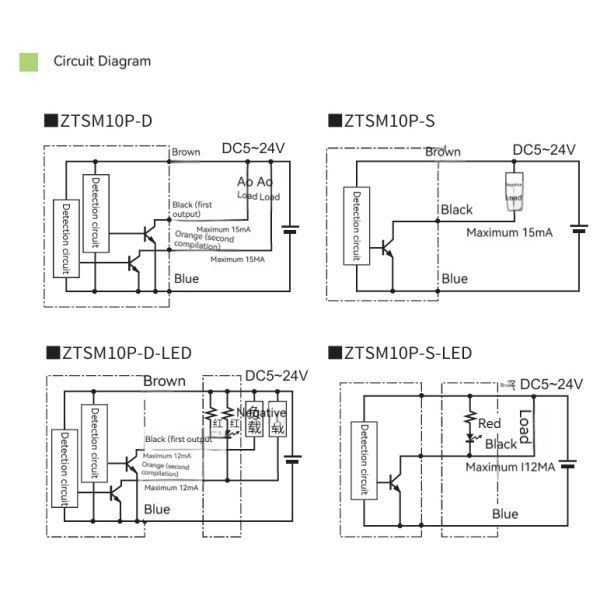

Output method	ZTSM10P：
		NPN Normally open (ON for proximity)
		ZTSM10P(B):
		NPN normally closed (OFF at proximity)
Output current	ZTSM10P	15mA MAX
			ZTSM10P(B)
		ZTSM10P-LED	12mA MAX
		ZTSM10P(B)-LED
Current consumption	ZTSM10P	12mA MAX
			ZTSM10P(B)
		ZTSM10P-LED	15mA MAX
		ZTSM10(B)P-LED
Operating Frequency	Below 60 times/min
Withstanding Voltage	AC1000V
		(1 minute, between the whole charging part and the shell)
Insulation resistance	DC250V
		(20MΩ or more, between the whole charging part and the shell)
Operating Ambient Temperature	-20°C~+85°C (no condensation)
Working environment humidity	20~95%RH
Wire specification	ZTSM10P-S	Gray
		ZTSM10P-D	Black
		ZTSM10P-(B)
		ZTSM8(B): Black color
Material	Housing/Nut/Operating Rod:SUS303

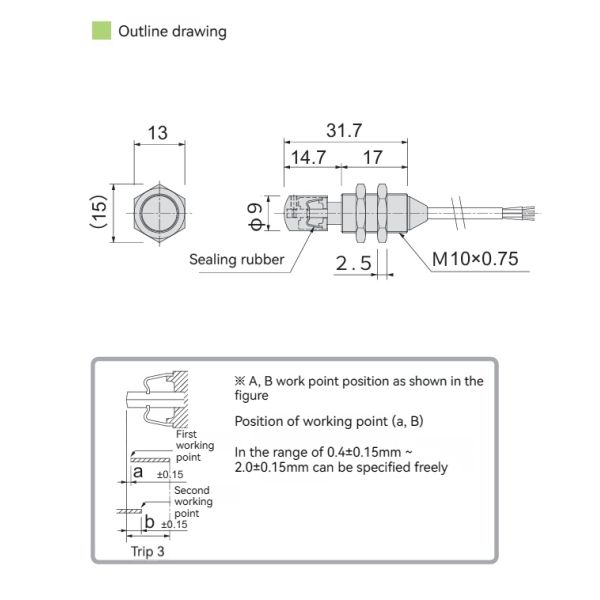

Installation	M8 nut, tightening torque 5N-m or less
Mounting hole processing size	Φ10＋0.5
Indicator light	ZTSM10P	None
			ZTSM10(B)P
		ZTSM10P-LED	Approx. 100mm from sensor body
		ZTSM10(B)P-LED
Protection Class	IP67

Note: Do not apply more than 30N of force to the lever.

Details Images

IP67 Protective ZTSM10P Contact Sensor CNC Machine Tools 3mm Stroke Limit Switch CNC Lathe NPN Normally Open/closed

Product packaging

We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
