weight (kg) : 0.5
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine
Core Components : SUS303,SUS,Nitrile rubber
Applicable Industries : CNC machining center
machinery test report : Not Available
Brand Name : OEM/ODM
Condition : New
Price : $12.70-16.90 / piece
MOQ : 1 piece
video outgoing-inspection : Provided
Place of Origin : Guangdong, China
warranty : 1 Year
Supply Voltage | DC5~24V |
Static load resistance | 10kN |
Stroke | 0.8mm |
Working point position [PT] | 0.15~0.4mm |
Differential [MD] | 0.1mm or less |
Repeat positioning accuracy | ± 0.002mm |
Output method | ZTSM14. |
ZTSM14: NPN Normally open (ON for proximity) | |
ZTSM14(B): NPN normally closed (OFF at proximity) | |
ZTSM14(B): NPN normally closed (OFF when close) | |
Output current | 15mA MAX |
Current consumption | 12mA MAX |
Operating Frequency | 60 times/min or less |
Withstanding Voltage | AC1000V |
(1 minute, between the whole charging part and the case) | |
Insulation resistance | DC250V |
(20MΩ or more, between the whole charging part and the case) | |
Operating Ambient Temperature | -20°C~+85°C (no condensation) |
Working environment humidity | 20~95%RH |
Wire specification | Φ2.8x1m |
ZTSM14: Gray | |
ZTSM14(B): Black | |
Shell Material | SUS303 |
Front Material | SUS |
Cable Seal Material | Nitrile rubber |

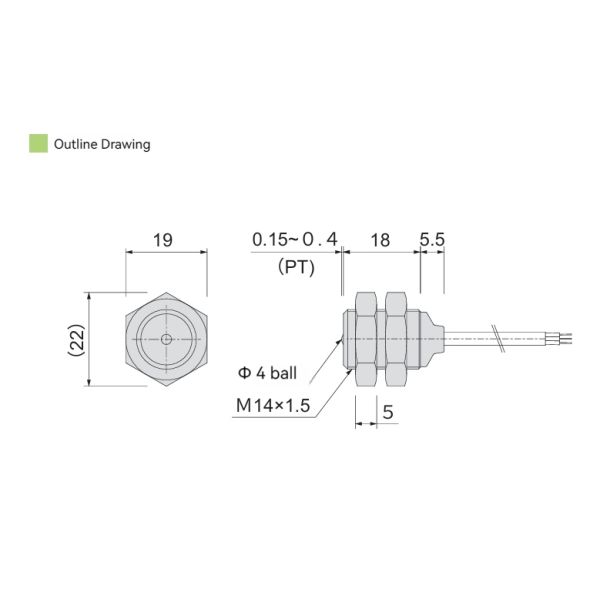

Installation | M14 nut, tightening torque up to 18N-m |
Mounting Hole Size | Φ14+0.5 / 0 |
Protection Class | IP44 |







|
|

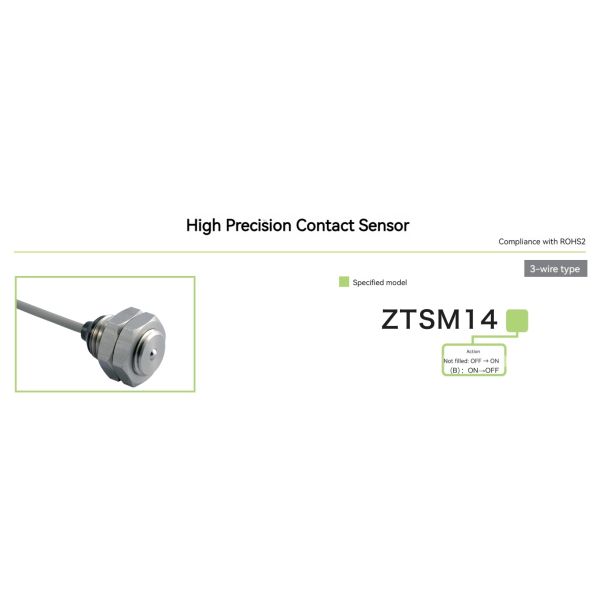

ZTSM14 High Precision DC24v Sensor Contact Type CNC Machine Tool Miniature 0.8mm Transducer Images |
