weight (kg) : 0.5
MOQ : 1 set
warranty : 1 Year
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine
Brand Name : Makinopc
Insulation resistance : DC250V
Supply Voltage : DC5~24V
Magnetic detection direction : Downward
Price : $13.75-15.95 / set
Output current : 12mA MAX
Magnetic sensitivity : 3~4mT
Output mode : NPN normally open (ON at proximity)
Current consumption : 15mA MAX
Place of Origin : Guangdong, China
Withstanding Voltage : AC1000V
Response time : 5μ sec
Shell Material : Glass fiber reinforced resin: Black
Supply Voltage | DC5~24V |
Detection Poles | ZPSC006-S: S pole |
ZPSC006-N: N pole | |
Magnetic sensitivity | 2.5~3.5mT |
Magnetic detection direction | Downward |
Output mode | NPN normally open (ON when close) |
Output current | 12mA MAX |
Current consumption | 15mA MAX |
Response time | 5μ sec |
Withstanding Voltage | AC1000V |
(1 minute, between the whole charging part and the case) | |
Insulation resistance | DC250V |
(20MΩ or more, between the whole charging part and the case) | |
Operating Ambient Temperature | -20℃~+85℃ (no condensation) |
Humidity | 20~95%RH |
Wire Specification | φ2.8×1m |
S pole: Gray | |
N-pole: Black | |
Shell Material | Glass fiber reinforced resin: black |

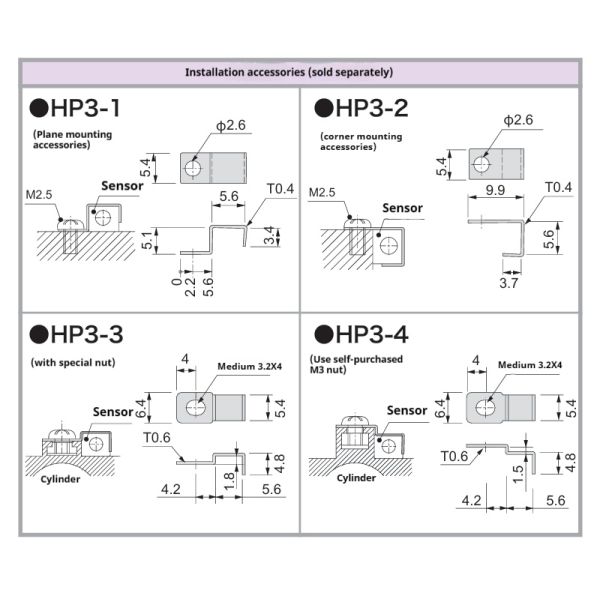

Installation | Dedicated mounting accessory |
Indicator light | Red color |
Protection level | IP67 |







|
|

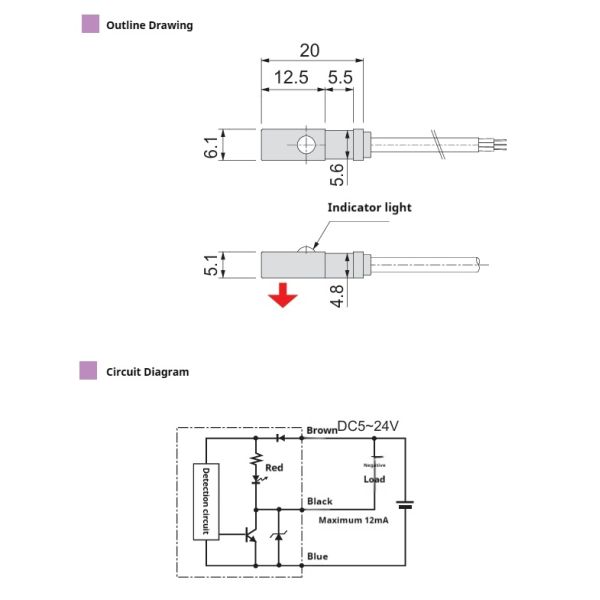

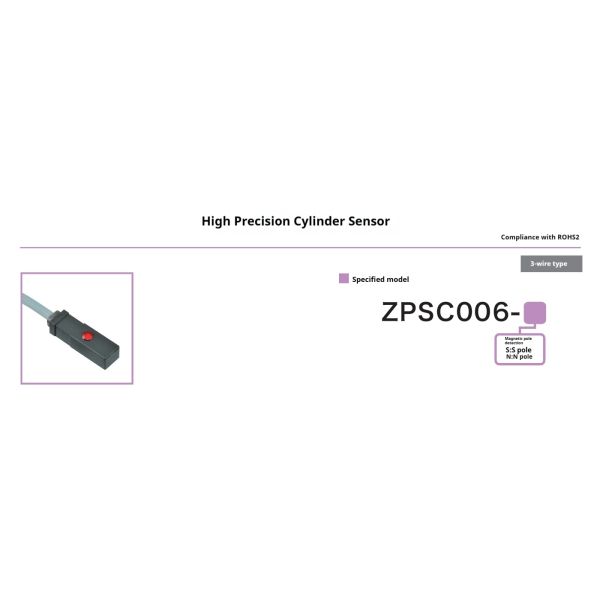

IP67 Reinforced Resin Cylinder Magnetic Sensor Magnetic Switch with Red Indicator for Automation Equipment ZPSC006 Images |
