IP67 High Sensitivity Compact Door Sensor S Pole Door Magnet Magnetic Detecting 15mm Detection Distance NPN Output

Name: IP67 High Sensitivity Compact Door Sensor S Pole Door Magnet Magnetic Detecting 15mm Detection Distance NPN Output
Brand: Makinopc
Price: 5.90 USD

Buy cheap IP67 High Sensitivity Compact Door Sensor S Pole Door Magnet Magnetic Detecting 15mm Detection Distance NPN Output product

Warranty : 3 months ~ 1 year

Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine

Brand Name : Makinopc

Place of Origin : Guangdong, China

warranty : 1 Year

weight (kg) : 0.5

Customized : Yes

MOQ : 1 piece

Price : $5.90-8.90 / piece

Contact Now

Products Description

Key Features

The door magnetic sensor consists of two parts: the smaller part is the permanent magnet  with a permanent magnet  inside to generate a constant magnetic field; the larger one is the door magnetic body with a sensor (such as a reed switch ) inside. When the permanent magnet and the reed switch are close together (usually less than 5 millimeters), the door magnet sensor is in a working guard state, and when the permanent magnet leaves the reed switch at a certain distance, the sensor senses the open state of the door or window. For the wireless door magnetic sensor , when the door or window is opened, it will immediately transmit a wireless alarm signal to the host alarm. This working principle is realized based on the magnetic sensitivity effect , i.e., detecting the opening and closing status of the door and window by means of magnets and magnetic sensors.

Product Paramenters

Supply Voltage	DC5～24V
Detection pole	S pole
Magnetic detection direction	Upward
Detection distance	15mm (when used in combination with door magnet)
Output mode	NPN normally open (ON when close)
Output current	15mA MAX
Current Consumption	12mA MAX
Response time	5μ sec
Withstanding Voltage	AC1000V
Withstanding Voltage		(1 minute, between the whole charging part and the case)
Insulation resistance	DC250V
Insulation resistance		(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature	-20℃～+85℃ (no condensation)
Humidity	20～95%RH
Wire Specification	φ2.8×1m Gray
Shell material	Glass fiber reinforced resin: Black
Installation	M3 screw, tightening torque 0.8N-m
Protection grade	IP67

Details Images

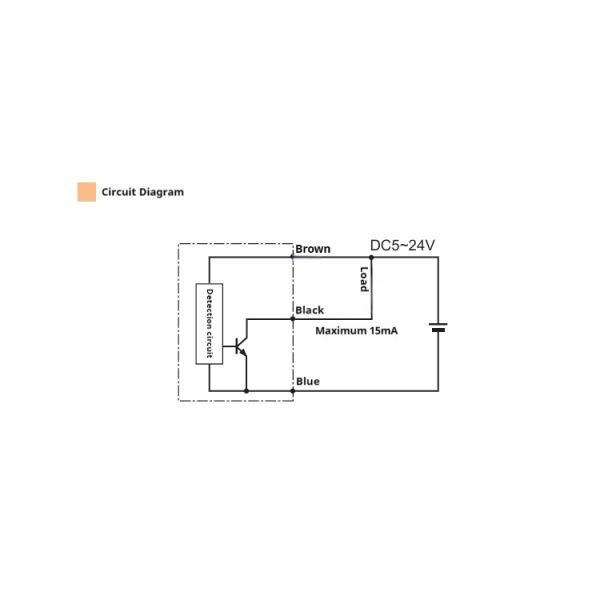

IP67 High Sensitivity Compact Door Sensor S Pole Door Magnet Magnetic Detecting 15mm Detection Distance NPN Output

Product packaging

We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
