M8 Easily Mounted Magnet Detection S/N Pole Magnetic Proximity Sensor 15mA for Smart Automation and Process Control Markets

Name: M8 Easily Mounted Magnet Detection SN Pole Magnetic Proximity Sensor 15mA for Smart Automation and Process Control Markets
Brand: Makinopc
Price: 6.70 USD

Buy cheap M8 Easily Mounted Magnet Detection S/N Pole Magnetic Proximity Sensor 15mA for Smart Automation and Process Control Markets product

warranty : 1 Year

Magnetic sensitivity : 3~4mT

Response time : 16μ sec

Place of Origin : Guangdong, China

Detection Poles : ZPS028-S: S pole ; ZPS028-N: N pole

Brand Name : Makinopc

Magnetic detection direction : Forward

Output current : 15mA MAX

Supply Voltage : DC12~24V

Price : $6.70-7.90 / piece

weight (kg) : 0.5

Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine

Current consumption : 4mA MAX

Protection class : IP67

Shell material : SUS303

MOQ : 1 piece

Indicator light : Red color

Contact Now

Products Description

Magnetic Proximity Sensor Suppliers, Manufacturer offering high performance magnetic proximity sensors that use for non-contact position detection beyond the normal limits of inductive sensors. In conjunction with a separate “damping” magnet, magnetic sensors offer very long sensing ranges from a small package size and can detect magnets through walls of non-ferrous metal, stainless steel, aluminum, plastic or wood.

Key Features

●Magnetic proximity sensors are sensors that operate ON and OFF according to changes in the strength of the magnetic field. ●The operating principle is the Hall principle, which detects the magnetic field according to its polarity, and the standard detection pole is the S pole. ●Because of the short response time (5μsec or less), it can also be used for tachometers and speedometers. ●Compared with general proximity sensors, it is characterized by high sensitivity, large detection distance, and small size. ●Can perform both home position and over-travel detection of servo mechanisms with only one dual sensor. ●Strong resistance to electromagnetic interference and high reliability.

Product Paramenters

Supply Voltage	DC5～24V
Detection Poles	ZPS028-S: S pole
	ZPS028-N: N pole
Magnetic sensitivity	3～4mT
Magnetic detection direction	Forward
Output mode	NPN normally open (ON when close)
Output current	15mA MAX
Current consumption	4mA MAX
Response time	16μ sec
Withstanding Voltage	AC1000V
	(1 minute, between the whole charging part and the case)
Insulation resistance	DC250V
	(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature	-20℃～+85℃ (no condensation)
Humidity	20～95%RH
Wire Specification	φ2.8×1m
	S pole: Gray
	N pole: black
Shell material	SUS303
Installation	M8 nut Tightening torque 2N-m
Mounting aperture processing size	φ8 +0.5 / 0
Indicator light	Red color
Protection Class	IP67

※Output conversion and current increase can be realized by wire attachment.

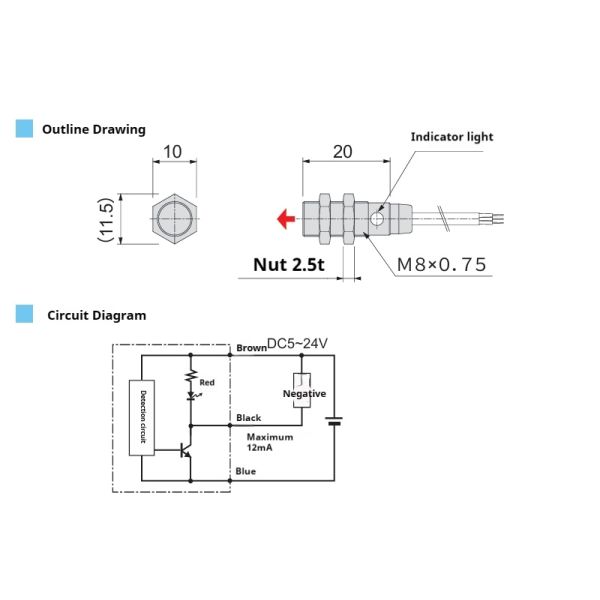

Details Images

M8 Easily Mounted Magnet Detection S/N Pole Magnetic Proximity Sensor 15mA for Smart Automation and Process Control Markets

※Output conversion and current increase can be realized by wire attachment.

Product packaging

We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
