Makinopc 6 Angle Nuts S Pole Detection Proximity Approach Switch Magnetic Reed Switch NPN with 1m Grey Cable ZPS026

Name: Makinopc 6 Angle Nuts S Pole Detection Proximity Approach Switch Magnetic Reed Switch NPN with 1m Grey Cable ZPS026
Brand: Makinopc
Price: 5.50 USD

Buy cheap Makinopc 6 Angle Nuts S Pole Detection Proximity Approach Switch Magnetic Reed Switch NPN with 1m Grey Cable ZPS026 product

warranty : 1 Year

Shell material : SUS303

Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine

Response time : 16μ sec

Magnetic detection direction : Forward

Protection class : IP67

weight (kg) : 0.5

MOQ : 1 piece

Brand Name : Makinopc

Supply Voltage : DC5~24V

Output current : 15mA MAX

Indicator light : Red color

Place of Origin : Guangdong, China

Detection Poles : S pole

Price : $5.50-6.50 / piece

Magnetic sensitivity : 3~4mT

Current consumption : 4mA MAX

Contact Now

Products Description

Makinopc's Magnetic proximity sensors are used for non-contact object detection beyond the normal limits of inductive sensors. Our magnetic sensors deliver reliable, accurate data to help control your system. Low-power, highly reliable, cost-optimized solutions for magnetic position and current sensing

Key Features

●Magnetic proximity sensors are sensors that operate ON and OFF according to changes in the strength of the magnetic field. ●The operating principle is the Hall principle, which detects the magnetic field according to its polarity, and the standard detection pole is the S pole. ●Because of the short response time (5μsec or less), it can also be used for tachometers and speedometers. ●Compared with general proximity sensors, it is characterized by high sensitivity, large detection distance, and small size. ●Can perform both home position and over-travel detection of servo mechanisms with only one dual sensor. ●Strong resistance to electromagnetic interference and high reliability.

Product Paramenters

Supply Voltage	DC5～24V
Detection Poles	S-pole
Magnetic sensitivity	3～4mT
Magnetic detection direction	Forward
Output mode	NPN normally open (ON when close)
Output current	15mA MAX
Current consumption	4mA MAX
Response time	16μ sec
Withstanding Voltage	AC1000V
Withstanding Voltage		(1 minute, between the whole charging part and the case)
Insulation resistance	DC250V
Insulation resistance		(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature	-20℃～+85℃ (no condensation)
Humidity	20～95%RH
Wire Specification	φ2.8×1m
Shell material	SUS303
Installation	M6 nut Tightening torque 2N-m
Mounting aperture processing size	φ6 +0.5 / 0
Protection Grade	IP67

※Output conversion and current increase can be realized by wire attachment.

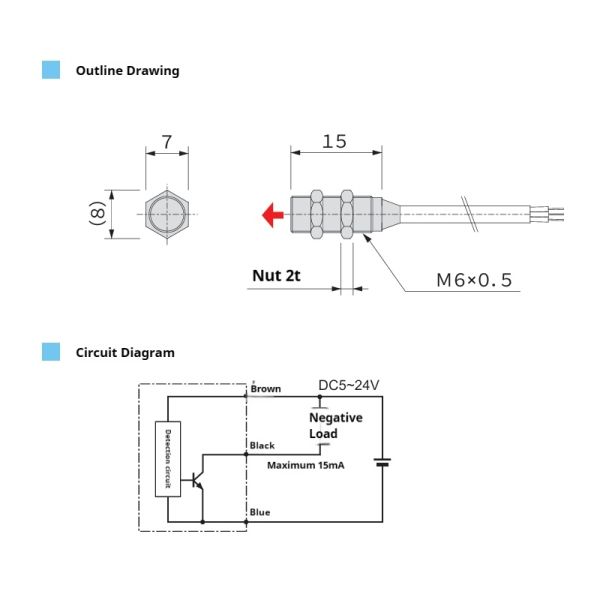

Details Images

Makinopc 6 Angle Nuts S Pole Detection Proximity Approach Switch Magnetic Reed Switch NPN with 1m Grey Cable ZPS026

※Output conversion and current increase can be realized by wire attachment.

Product packaging

We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
