Current consumption : 4mA MAX
warranty : 1 Year
Detection Poles : S-pole
Magnetic sensitivity : 3~4mT
Output current : 15mA MAX
Indicator light : Red color
Price : $7.90-10.80 / piece
Supply Voltage : DC5~24V
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine
MOQ : 1 piece
Brand Name : Makinopc
Magnetic detection direction : Forward
Output mode : NPN normally open (ON when close)
weight (kg) : 0.5
Protection class : IP65
Place of Origin : Guangdong, China
Response time : 16μ sec
Supply Voltage | DC5~24V |
Detection Poles | S-pole |
Magnetic sensitivity | 3~4mT |
Magnetic detection direction | Forward |
Output mode | NPN normally open (ON when close) |
Output current | 15mA MAX |
Current consumption | 4mA MAX |
Response time | 16μ sec |
Withstanding Voltage | AC1000V |
(1 minute, between the whole charging part and the case) | |
Insulation resistance | DC250V |
(20MΩ or more, between the whole charging part and the case) | |
Operating Ambient Temperature | -20℃~+85℃ (no condensation) |
Humidity | 20~95%RH |
Wire Specification | φ2.8×1m |
S pole: Gray | |
N-pole: Black | |
Shell material | Glass fiber reinforced resin: black |
Installation | M2 screw, tightening torque 0.15N-m |
Indicator light | Red color |
Protection class | IP65 |







|
|

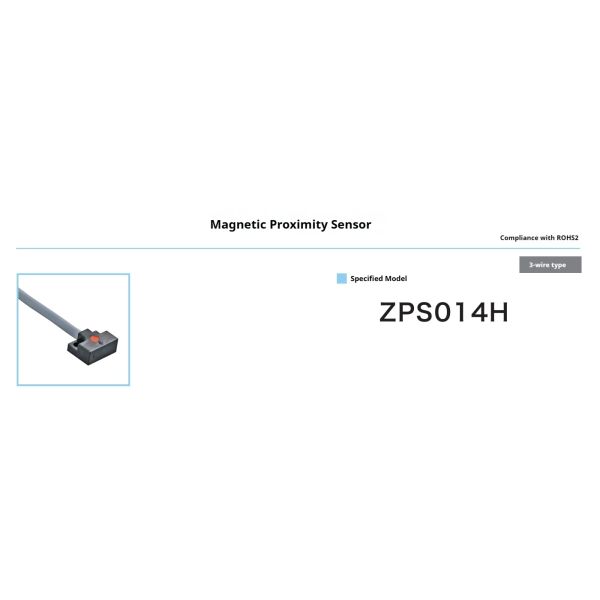

Makinopc ZPS014H Magnetic Sensor CNC Machine Tool Magnetic Proximity Switch Sensor with Indicator Light Images |
