Brand Name : Makinopc
Showroom Location : None
MOQ : 1 piece
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine
Marketing Type : Ordinary Product
warranty : 1 Year
Price : $49.80-53.30 / piece
Place of Origin : Guangdong, China
Condition : New
weight (kg) : 1
Core Components : Glass fiber reinforced resin: Green
Supply Voltage | DC5~24V |
Detection Poles | S-pole |
Magnetic sensitivity | 2.5~3.5mT |
Magnetic detection direction | Downward |

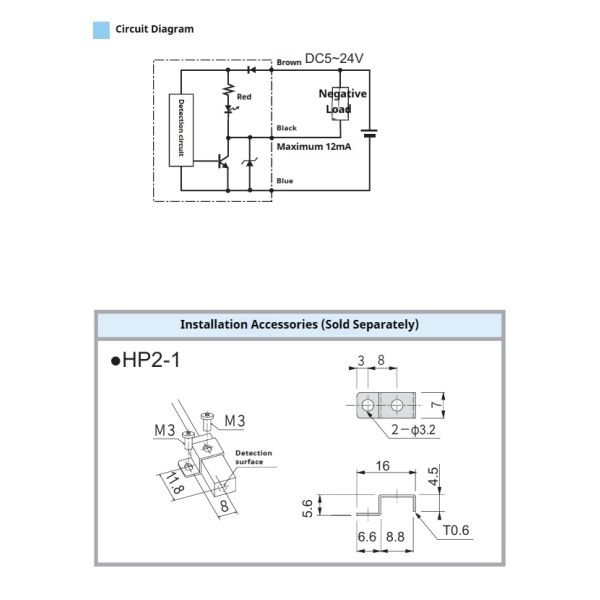

Output mode | NPN normally open (ON when close) |
Output current | 12mA MAX |
Current consumption | 15mA MAX |
Response time | 5μ sec |
Withstanding Voltage | AC1000V |
(1 minute, between the whole charging part and the case) | |
Insulation resistance | DC250V |
(20MΩ or more, between the whole charging part and the case) | |
Operating Ambient Temperature | -20℃~+85℃ (no condensation) |
Humidity | 20~95%RH |
Wire Specification | φ2.8×1m Gray |
Shell material | Glass fiber reinforced resin: Green |

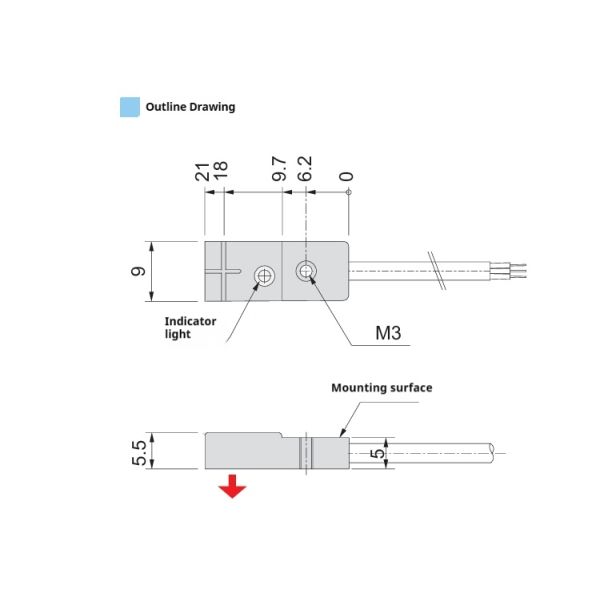

Installation | M3 screw, tightening torque 0.2N-m |
Recommended treatment to prevent loosening such as using adhesive. | |
Indicator light | Red color |
Protection class | IP65 |







|
|

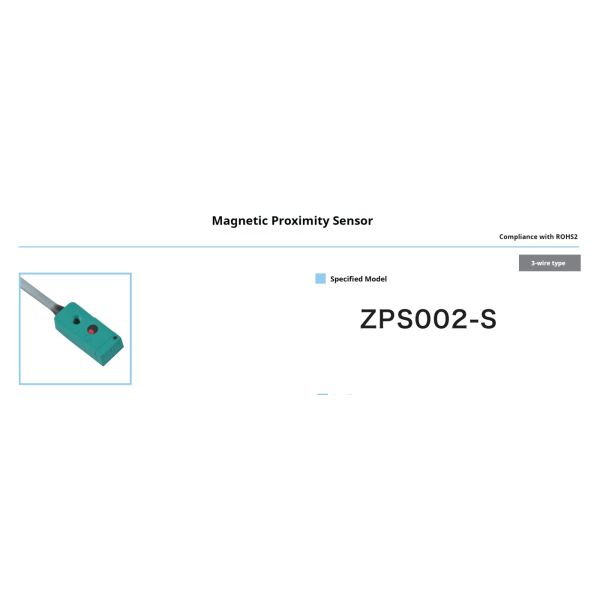

RoHS2 Certified IP65 S-pole Magnetic Proximity Sensor with Red Indicator ZPS002-S Images |
