Brand Name : Makinopc
Output mode : NPN normally open (ON when close)
Output current : 15mA MAX
Shell material : Glass fiber reinforced resin: Gray
Price : $4.70-7.30 / piece
Detection Poles : ZPS013-S: S pole; ZPS013-N: N pole
Magnetic detection direction : Forward
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine
Supply Voltage : DC5~24
Response time : 5μ sec
Protection class : IP65
MOQ : 1 piece
weight (kg) : 0.5
warranty : 1 Year
Current consumption : 12mA MAX
Place of Origin : Guangdong, China
Magnetic sensitivity : 2.5~3.5mT
Supply Voltage | DC5~24V |
Detection Poles | ZPS013-S: S pole |
ZPS013-N: N pole | |
Magnetic sensitivity | 2.5~3.5mT |
Magnetic detection direction | Forward |
Output mode | NPN normally open (ON when close) |
Output current | 15mA MAX |
Current consumption | 12mA MAX |
Response time | 5μ sec |
Withstanding Voltage | AC1000V |
(1 minute, between the whole charging part and the case) | |
Insulation resistance | DC250V |
(20MΩ or more, between the whole charging part and the case) | |
Operating Ambient Temperature | -20℃~+85℃ (no condensation) |
Humidity | 20~95%RH |
Wire Specification | φ2.8×1m |
S pole: Gray | |
N-pole: Black | |
Shell material | Glass fiber reinforced resin: Gray |

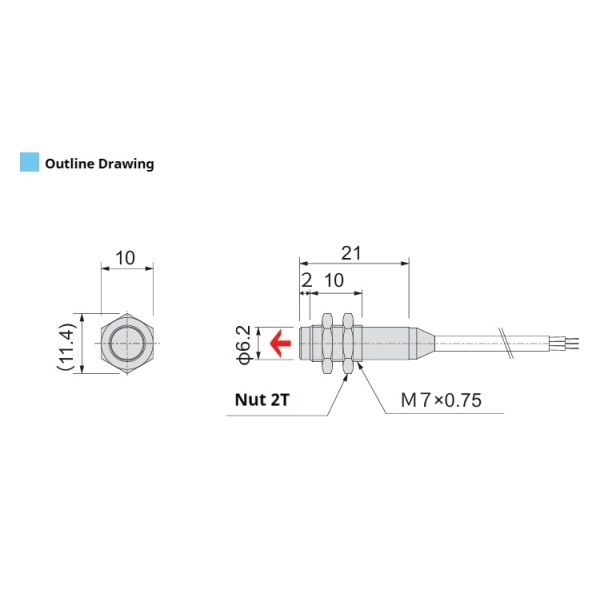

Installation | M7 nut Tightening torque 0.3N-m |
It is recommended to prevent loosening by using an adhesive or the like. | |
Mounting aperture processing size | φ7 +0.5 / 0 |
Protection Grade | IP65 |







|
|

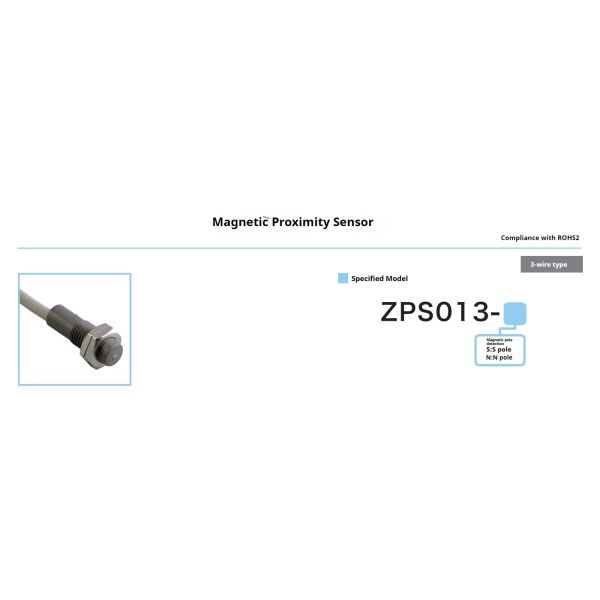

Makinopc 2 Wires Magnetic Inductive Sensor NPN Nc Style 24v Proximity Sensor Switch 2.5-3.5mT Inductive Proximity Sensors Images |
