weight (kg) : 0.5
Place of Origin : Guangdong, China
Supply Voltage : DC12~24V
Detection Poles : ZPS0012-S: S pole; ZPS0012-N: N pole
Current consumption : 0.5mA MAX when OFF
Shell material : Glass fiber reinforced resin: black
Magnetic sensitivity : 2.5~3.5mT
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine
MOQ : 1 piece
warranty : 1 Year
Leakage Current : 50mA MAX
Brand Name : Makinopc
Protection class : IP67
Indicator light : Red color
Response time : 50m sec
Price : $5.50-6.50 / piece
Magnetic detection direction : Downward
Supply Voltage | DC12~24V |
Detection Poles | ZPS0012-S: S pole |
ZPS0012-N: N pole | |
Magnetic sensitivity | 2.5~3.5mT |
Magnetic detection direction | Downward |
Output Current | 50mA MAX |
Leakage Current | 0.5mA MAX when OFF |
Response time | 50m sec |
Withstanding Voltage | AC1000V |
(1 minute, between the charging section as a whole and the case) | |
Insulation resistance | DC250V |
(20MΩ or more, between the whole charging section and the case) | |
Operating Temperature | -20℃~+85℃ (no condensation) |
Humidity | 20~95%RH |
Wire Specification | φ3.2×1m |
S pole: Gray | |
N-pole: Black | |
Shell material | Glass fiber reinforced resin: black |

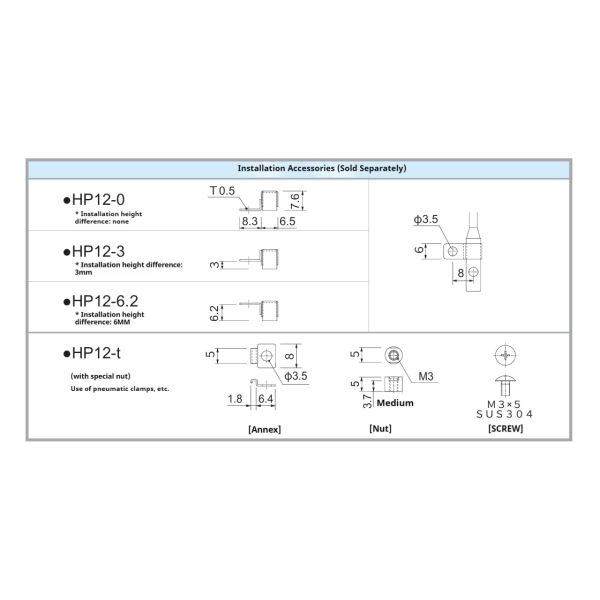

Installation | Dedicated mounting accessory |
Indicator light | Red color |
Protection class | IP67 |







|
|

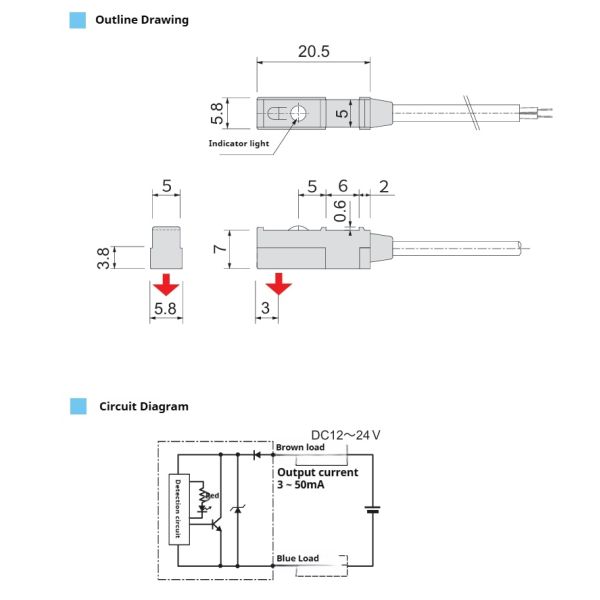

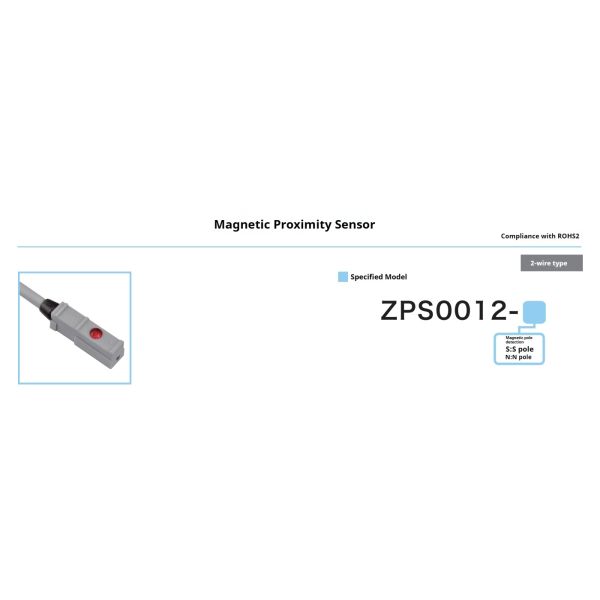

Magnetic Reed Sensor Switch 250V 50mA MAX Proximity Switch Magnetic 2.5-3.5mT Sensitivity with S/N 1m Cable Images |
