style : Solid
Marketing Type : Ordinary Product
Condition : New
Place of Origin : Guangdong, China
Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Retail
MOQ : 1 piece
Brand Name : HEDSS
warranty : 1 Year
weight (kg) : 1.2
material : Stainless Steel
video outgoing-inspection : Provided
Price : $30.50-34.50 / piece
machinery test report : Not Available
Showroom Location : None
Core Components : Pulse,Handwheel encoder

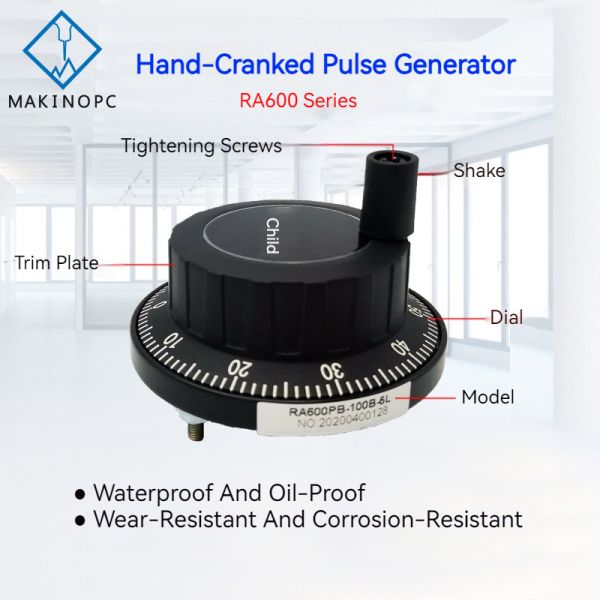

Product Name | Original Ripple Panel Mounted Manual Pulse Generator |
Product Model | RA600 Series |
Product Specification | RA600-001-100B-5L(5V, 100PPR, ABA-B-phase output) |
RA600-001-25B-12E(12V, 25PPR, A, B-phase output) | |
RA600-001-100B-24E(24V, 100PPR, A, B-phase output) PLC | |
Voltage | DC 5V-24V |
Number of pulses | 25PPR, 100PPR |
Dimension | Center 60MM |
Product Structure | Hand Crank/Handheld |
Terminal block | 4-terminal/6-terminal |
Net Weight | 160.5g |
Gross weight | 189.1g |
Maximum mechanical speed | 600r/min |
Normal mechanical speed | <200r/min |
Mechanical life | 3*100000rpm (below 200r/min) |
Operating temperature | -10°C to 60°C |
Storage temperature | -20°C to 70°C |
Protection class | IP54 |
Matching system | NAKO, Italy, HENAK, HUAZHONG, OPEN, KAENTI, MITSUBISHI, FAG, FRANCE, HEIDENHAIN, BAOYUAN, XINYAO, KAENTI, SHIKAI HUAXING, HUAZHONG, DAISEN, AIWEI, KWANTI, and other well-known CNC systems. |
Remarks | This 5V-100PPR is fully compatible with the old model 4 terminals, consult us. |







|
|

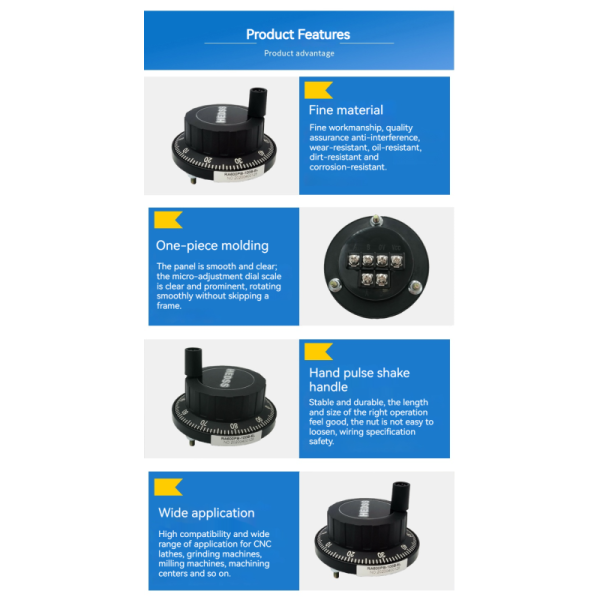

Original REP Manual Handheld CNC Machine Pulse Generator Handwheel Accessories 60mm 5V-100PPR 6 Terminals AB Signal Output RA600 Images |
