Optional axis : 4 (2/3/4/5/6 Axes Optional)
LED Lamp : DC24V green Led
warranty : 1 Year
Size : 130*70*35MM
weight (kg) : 1
Voltage : 5v/12v/24v
LJJ-12V-25PPR : Suitable for Mitsubishi and other systems.
machinery test report : Provided
Application : CNC Machine Center, CNC System
LJJ-5V-100PPR : Suitable for , Baoyuan, Xindai, Fagor, Fanuc, Weihong.
LJJ-24V-100PPR : Signal (A B), voltage (24V) suitable for PLC
Place of Origin : Guangdong, China
video outgoing-inspection : Provided
material : Stainless Steel
style : Solid
Brand Name : Makinopc
Work temperature : -10C~+60C
Price : $65.90-69.90 / piece
Product Name : LJJ Series Electronic Handwheel
MOQ : 1 piece
Product Name | LJJ Series Electronic Handwheel |
Product Specification | LJJ-5v-100ppr, LJJ-12v-25ppr, LJJ-24v-100ppr |
Product Size | 130*70*35(mm) |
Core Components | Photoelectric all-metal pulse |
Option switch | Imported from Taiwan(ALPS) |
Axis selection OFF XYZ4, magnification X1 X10 X100 | |
Adsorption Method | With strong magnetic adsorption |
Cables | Static 1.6 meters, straighten 5.5 meters oil resistant spiral line |
Complete set of accessories | Including 5.5m oil resistant spiral wire, hook, box, manual. |
LED Visible Indicator | Green color |
Immunity | EN50082-2 standard |
Warranty | 12 months |
Net Weight | 701.8g |
Gross Weight | 769.8g |
System Options | LJJ-5V-100PPR:Suitable for Fanuc, , Quanta and other systems. |
LJJ-12V-25PPR:Suitable for Mitsubishi and other systems. | |
LJJ-24V-100PPR:Suitable for PLC system. |







|
|

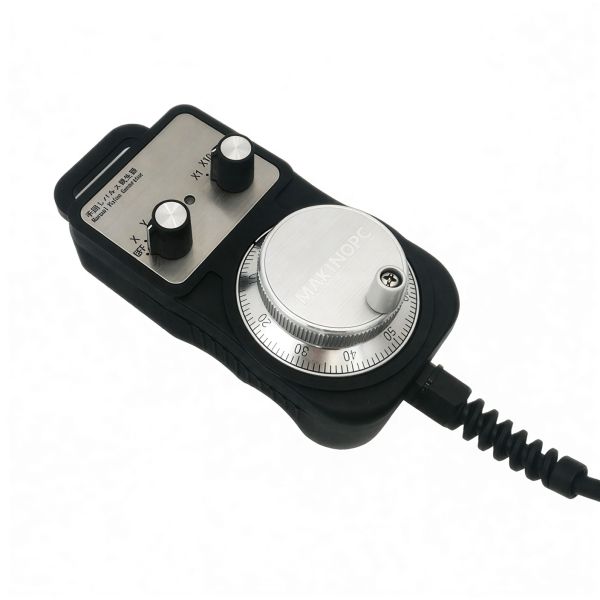

LJJ Stainless Steel Solid CNC Manual Pulse Generator MPG Lathe Electronic Handwheel 12V 25PPR for Fanuc PLC Fagor Controller Images |
