LJJ Series Solid Electronic Handwheel with All Metal Pulse 5V/12V/24V 100PPR LED Indicator for Fanuc GSK PLC Systems

Shenzhen Muye Precision Control Electromechanical Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

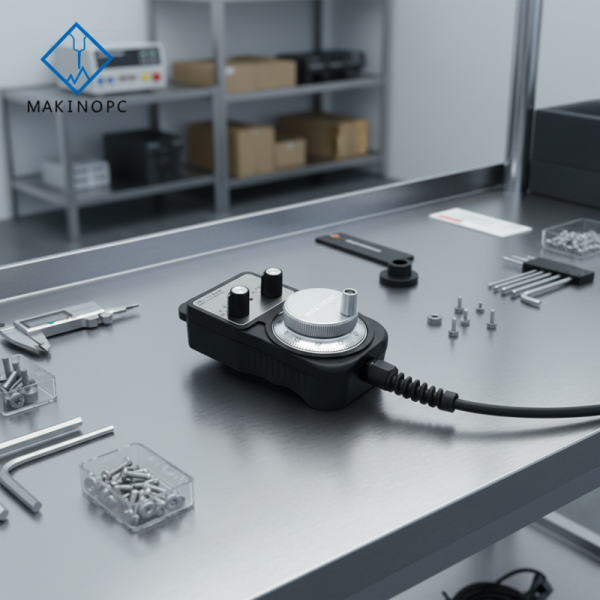

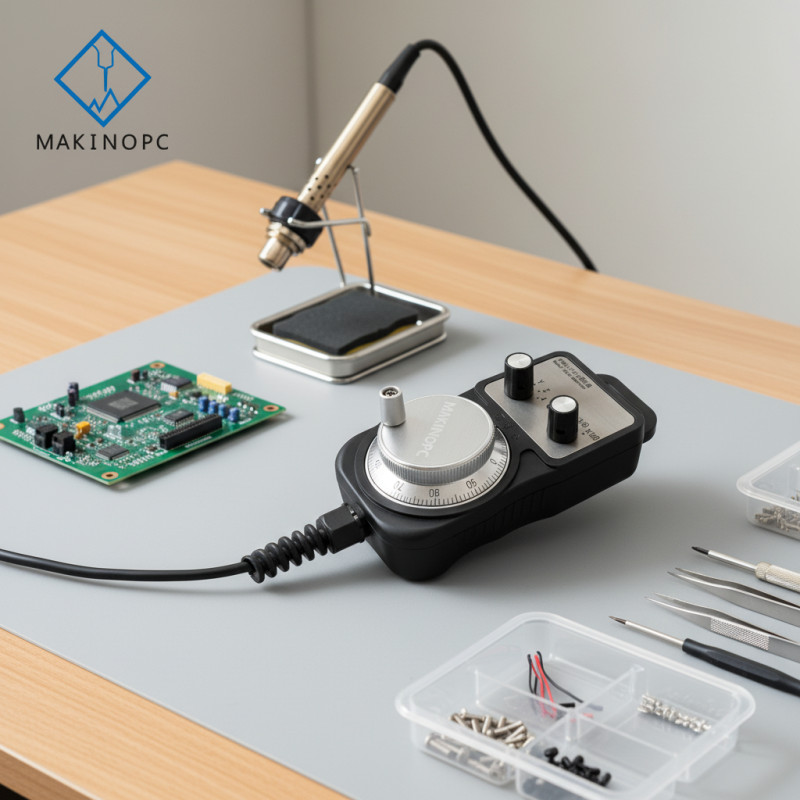

LJJ Series Solid Electronic Handwheel with All Metal Pulse 5V/12V/24V 100PPR LED Indicator for Fanuc GSK PLC Systems

Brand Name : Makinopc

style : Solid

Product Name : LJJ Series Electronic Handwheel

Price : $45.80-49.80 / piece

weight (kg) : 1

Work temperature : -10C~+60C

LED Lamp : DC24V green Led

Application : CNC Machine Center, CNC System

LJJ-12V-25PPR : Suitable for Mitsubishi and other systems.

Optional axis : 4 (2/3/4/5/6 Axes Optional)

machinery test report : Provided

warranty : 1 Year

Voltage : 5v/12v/24v

material : Photoelectric all metal pulse

LJJ-5V-100PPR : Suitable for , Baoyuan, Xindai, Fagor, Fanuc, Weihong.

LJJ-24V-100PPR : Signal (A B), voltage (24V) suitable for PLC

Place of Origin : Guangdong, China

video outgoing-inspection : Provided

Size : 130*70*35MM

MOQ : 1 piece

Contact Now

Products Description

Chinese Factory Makinopc Branding Electronic Handwheel, Photoelectric All-metal Pulse CNC Manual Generator MPG Hand Wheel For Fanuc Mitsubishi GSK PLC systems


Select the specifications suitable for your machine system:
LJJ-5V-100PPR--Signal (A B -A-B), Voltage (5v), Pulse (100PPR)
Suitable for , Baoyuan, Xindai, Fagor, Fanuc, Weihong, HEIDENHAIN, GUANGDIAN, OPEN, KAINDI and other well-known systems.
LJJ-12V-25PPR--Signal (A B), Voltage (5-12v), Pulse (25PPR) suitable for Mitsubishi and other systems.
LJJ-24V-100PPR--Signal (A B), voltage (24V) suitable for PLC.

Note: This handwheel is compatible with most systems on the market.
Product Paramenters
Product Name
LJJ Series Electronic Handwheel
Product Specification
LJJ-5v-100ppr, LJJ-12v-25ppr, LJJ-24v-100ppr
Product Size
130*70*35(mm)
Core Components
Photoelectric all-metal pulse
Option switch
Imported from Taiwan(ALPS)
Axis selection OFF XYZ4, magnification X1 X10 X100
Adsorption Method
With strong magnetic adsorption
Cables
Static 1.6 meters, straighten 5.5 meters oil resistant spiral line
Complete set of accessories
Including 5.5m oil resistant spiral wire, hook, box, manual.
LED Visible Indicator
Green color
Immunity
EN50082-2 standard
Warranty
12 months
Net Weight
701.8g
Gross Weight
769.8g
System Options
LJJ-5V-100PPR:Suitable for Fanuc, , Quanta and other systems.
LJJ-12V-25PPR:Suitable for Mitsubishi and other systems.
LJJ-24V-100PPR:Suitable for PLC system.
Note: Because each machine tool manufacturer's wiring welding position definition and plug specifications are not the same so we can not unify the welding plug. Handwheel factory are equipped with wiring diagrams, the definition of the color of each wire are clearly marked, you weld without any worries, (if you can provide plug specifications and the original handwheel wiring diagrams or a complete handwheel as a reference, we can also be paid to help you weld plug!)
Details Images
LJJ Series Solid Electronic Handwheel with All Metal Pulse 5V/12V/24V 100PPR LED Indicator for Fanuc GSK PLC Systems
LJJ Series Solid Electronic Handwheel with All Metal Pulse 5V/12V/24V 100PPR LED Indicator for Fanuc GSK PLC Systems
LJJ Series Solid Electronic Handwheel with All Metal Pulse 5V/12V/24V 100PPR LED Indicator for Fanuc GSK PLC Systems
LJJ Series Solid Electronic Handwheel with All Metal Pulse 5V/12V/24V 100PPR LED Indicator for Fanuc GSK PLC Systems
Product packaging
We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
LJJ Series Solid Electronic Handwheel with All Metal Pulse 5V/12V/24V 100PPR LED Indicator for Fanuc GSK PLC Systems
Company Profile
Shenzhen Muye Precision Control Electromechanical Co., Ltd., established in 2014, is a service-oriented enterprise specializing in the R&D, design, and sales of CNC machine tool accessories. Our current product portfolio primarily includes: CNC machine tool probes, automatic tool setters, electronic handwheels, manual pulse generators, measuring styli, spindle encoders, band switches, sensors, and installation/commissioning solutions for automatic tool changers. Our factory is located in Songgang Town, Bao'an District, Shenzhen, covering an area exceeding 3,000 square meters. We employ 20 professional technicians, operate 15 testing instruments, and maintain two production lines, achieving a monthly production capacity of 100,000 units. Our products feature exclusive patented designs and proprietary brands, and have obtained multiple international quality certifications including CE, FCC, and RoHS. Our products are widely compatible with PLC control systems including Fanuc, , Mitsubishi, Fagor, Heidenhain, Baoyuan, New Generation, Hanac, GSK CNC (Guangzhou), Open Source CNC, KND, Norson, Delta, and more. They serve CNC machining centers, engraving machines, engraving/milling machines, drilling/reaming machines, EDM machines, milling machines, lathes, and other equipment. Guided by the business philosophy of “Customer First, Integrity-Based,” the company has established long-term partnerships with numerous enterprises. We warmly welcome professionals worldwide to visit and discuss business opportunities.
LJJ Series Solid Electronic Handwheel with All Metal Pulse 5V/12V/24V 100PPR LED Indicator for Fanuc GSK PLC Systems
LJJ Series Solid Electronic Handwheel with All Metal Pulse 5V/12V/24V 100PPR LED Indicator for Fanuc GSK PLC Systems
Our Advantages
1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.
FAQ
Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2: How to choose the appropriate model or specifications? A:Based on your requirement and application, our professional engineers will offer you a detailed suggestions regarding models and specifications. Q3:Can I become your dealer? A:Of course, we need partners to create value together. Q4: Do you accept customized service? A:Yes, we can provide not only standard products, but also customized service and solutions. Q5: Do you have any MOQ (minimum order quality)limit? A: For standard product, usually 1pcs/item. For the OEM order, need to communicate product solutions. Q6.How long is the product shelf life? A: Our product watranty period is one year. Q7: How to proceed an order? A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a paying link.Online trading is safe and convenient.
